P2B930SET3SS DOOR & DRAWER PARTS

P2B930SET3SS DOOR & DRAWER PARTS

Written by

in

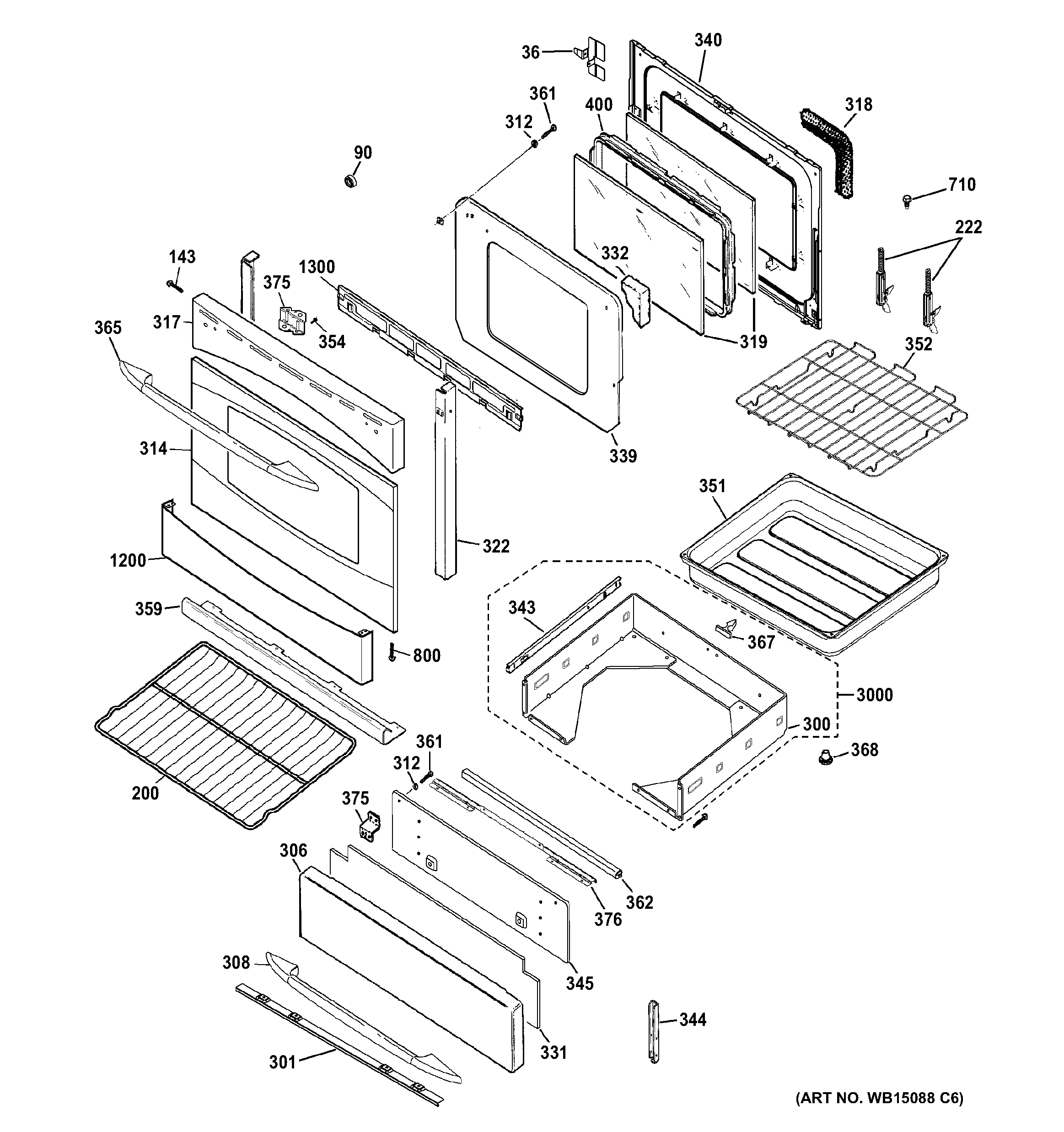

P2B930SET3SS DOOR & DRAWER PARTS

Products

PositionProduct
36GEN WB02K10356
90WB02X28737 GE Oven Front Frame Bumper
143SCREW MTG END CAP
200OVEN RACK
222HINGE DOOR
222HINGE DOOR
300WB58K10010 GE Oven Frame Drawer & Slide Assembly
301GEN WB07K10378
306GEN WB55K10039
308GEN WB15K10111
312WB1X119D GE Oven Range Washer
314GEN WB57K10118
317GEN WB07K10456
318WB32K10052 GE Oven Gasket
319WB57K10174 GE Range Crystal Window Door
322GEN WB07K10458
322GEN WB07K10457
331GEN WB35K10053
339WB34K10137 GE Door Insulation Guard
340WB55K10084 GE Door Liner Weld Assembly
343WB39K10027 GE Range Internal Slide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10024 GE Oven Drawer Liner
351WB48K10033 GE Oven Drawer Pan
352WB48K10010 GE Oven Baking Drawer Rack
354WB01K10009 GE Oven Handle Mounting Screw 10-32
361WB01K10047 GE Drawer Screw 10-32 HXW 9/16
362WB04K10018 GE Oven Lower Gasket
367WB02K10111 GE Oven Strike
368WB2K15 GE Oven Grate Bumper
368WB02K10112 GE Oven Bumper Blue
375GEN WB02K10064
375GEN WB02K10341
376WB63K10062 GE Oven Drawer Bracket
710WB1X536 GE Oven Screw
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
1200GEN WB07K10287
1300GEN WB55K10077
