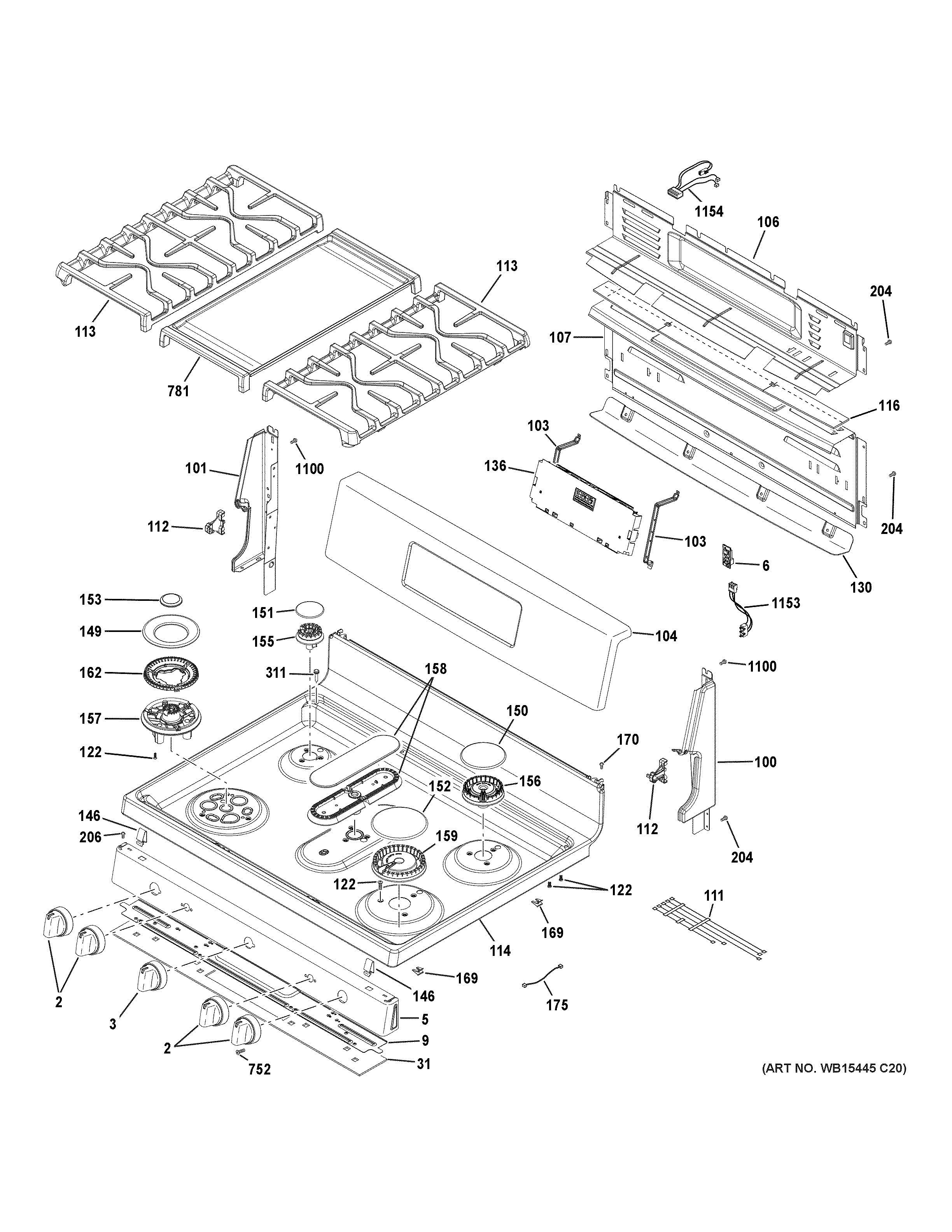

P2B935YP1FS CONTROL PANEL & COOKTOP

Products

Position	Product
2	WB03X24988 RANGE KNOB – STAINLESS STEEL
3	WB03X24990 GE Oven Knob Assembly
5	WB36X37987 GE Stainless Steel Manifold Pan
6	WH22X29461 GE A3 WiFi Board
9	WB34X20680 GE Support Manifold
31	WB35X24985 GE Burner Box Insulation
100	WB07X29143 GE Oven End Support
101	WB07X29144 GE Oven End Support
103	BRACKET CONTROL
104	WB36X37994 GE Stainless Steel Backguard
106	WB34X31704 GE Black Upper Back Cover
107	WB34X24746 GE Oven Back Cover Lower
111	WB18X38052 GE High Voltage Electrode & Harness
112	WB14K10003 GE Range Top Hinge
113	GRATE ASM
114	WB62X38001 GE Dark Dorian Gray Rantop & Br
116	WB35X46208 GE Upper Insulation Cover
122	WB01X24735 GE Oven CKT Screw
130	WB34X31700 GE Backguard for Dark Dorian Gray Oven
136	GLASS AND CONTROL ASM
146	WB02X26569 GE Range Top Clip
149	WB29X28253 GE Oven Surface Burner Cap
150	WB29K10023 GE Oven Burner Cap Assembly
151	WB16X28654 GE Oven Burner Cap Cover
152	CAP BURNER ASM (15K)
153	WB16X28252 GE Oven Burner Cap Inner
155	WB16X24721 GE Oven Range Small Cooktop Burner V2
156	WB16X24724 GE Oven Medium Burner
157	WB16X28656 GE Oven Surface Burner Base
158	WB16K10076 GE Oven Oval Burner Assembly
159	WB16X24722 GE Oven Gas Range XL Surface Burner
162	HEAD BURNER
169	WB02X24976 GE Oven Igniter Clip V2
170	SCREW MTG END CAP
175	WB18X24748 GE Oven Ground Harness
204	WB1K5062 GE Oven Screw
206	WB01K10091 GE Oven Screw
311	BUMPER
752	WB01X26995 GE Oven Screw 8-18 AB X 5/16
781	WB31X24998 GE Oven Reversible Grille
1100	WB01T10016 GE Oven Screw 8-18 AB Hex
1153	HARNESS INTERFACE
1154	HARNESS CONTROL
