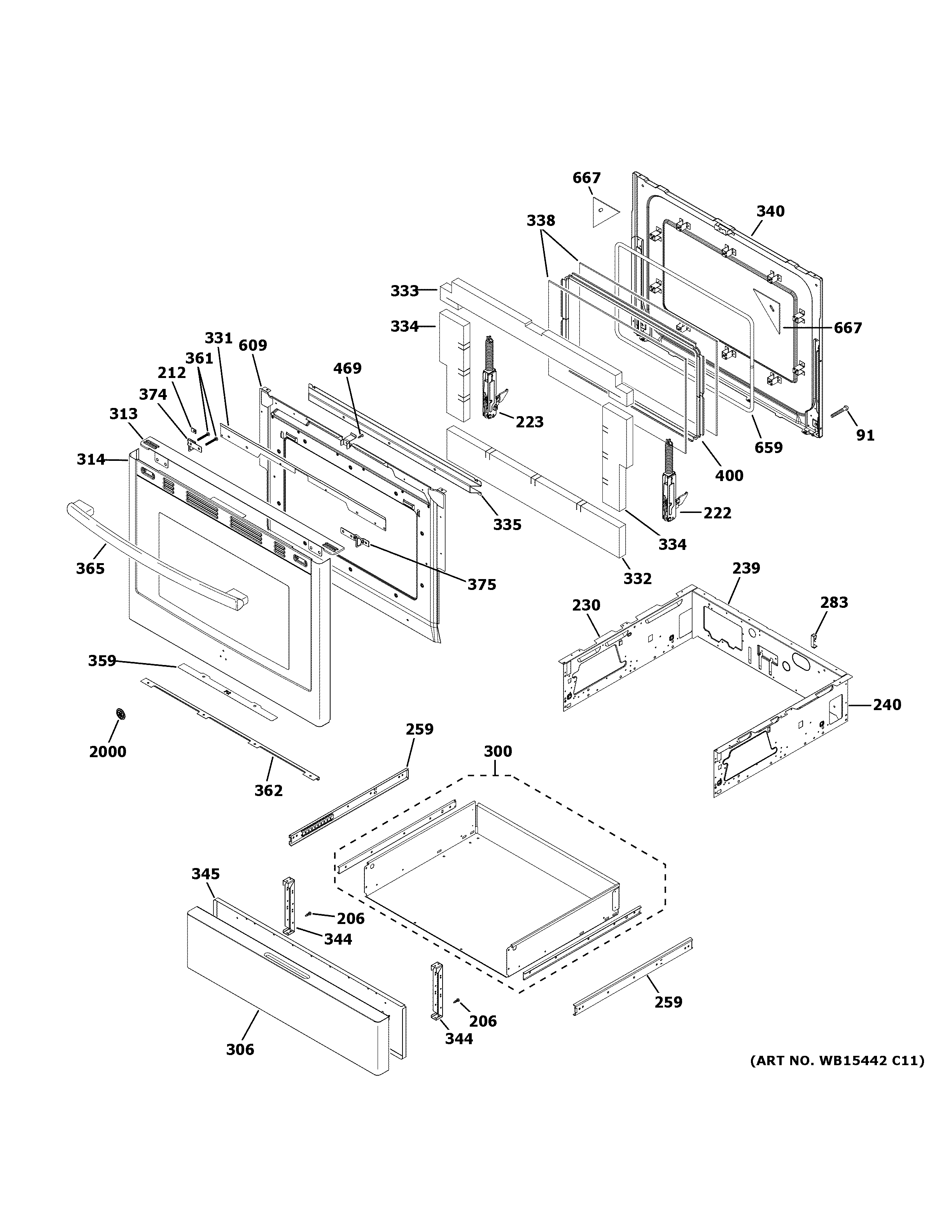

P2B935YP1FS DOOR & DRAWER PARTS

P2B935YP1FS DOOR & DRAWER PARTS

Written by

in

P2B935YP1FS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
206WB01K10091 GE Oven Screw
212WB1K2 GE Oven Speednut
222WB10X25550 GE Oven Right-Hand Hinge
223WB10X24776 GE Oven Door Hinge
230WB63X25599 GE Broil Right Side Panel
239PANEL REAR BROIL
240WB63X25598 GE Broil Left Side Panel
259WB63X27680 GE Oven Slide and Bearing Kit
283WB02X21679 GE Oven Wire Clip
300WB49X26422 GE Oven Drawer Body Assembly
306STAINLESS STEEL PANEL DRAWER
313WB07X29141 GE Oven Vent Trim Cover
314WB56X37989 GE Glass Door Assembly
331INNER DOOR DEFLECTOR
332WB35K10221 GE Range Insulation
333WB35X21688 GE Door Insulation
334WB35K10222 GE Oven Insulation
335WB34X21570 GE Door Stiffener
338WB57K10174 GE Range Crystal Window Door
340WB56X24760 GE Range Door Liner
344WB02X24742 GE Oven Drawer Bracket
345WB56X25101 GE Drawer Liner
359WB56X26708 GE Bottom Door Deflector
361WB02X32442 GE Screw 10-24
362WB07X20288 GE Oven Barrier Door
365WB15X35049 GE Stainless Steel Handle
374WB02X24743 GE Handle Bracket
375WB02X24744 GE Handle Bracket
400WB34X28742 GE Window Frame Assembly
469GEN WB01K0078
609WB34X24749 GE Door Guard
659WB35X21685 GE Oven Cord Fiberglass
667WB35X21691 GE Oven Door Insulation
2000WB02X29479 GE Oven Badge Assembly
