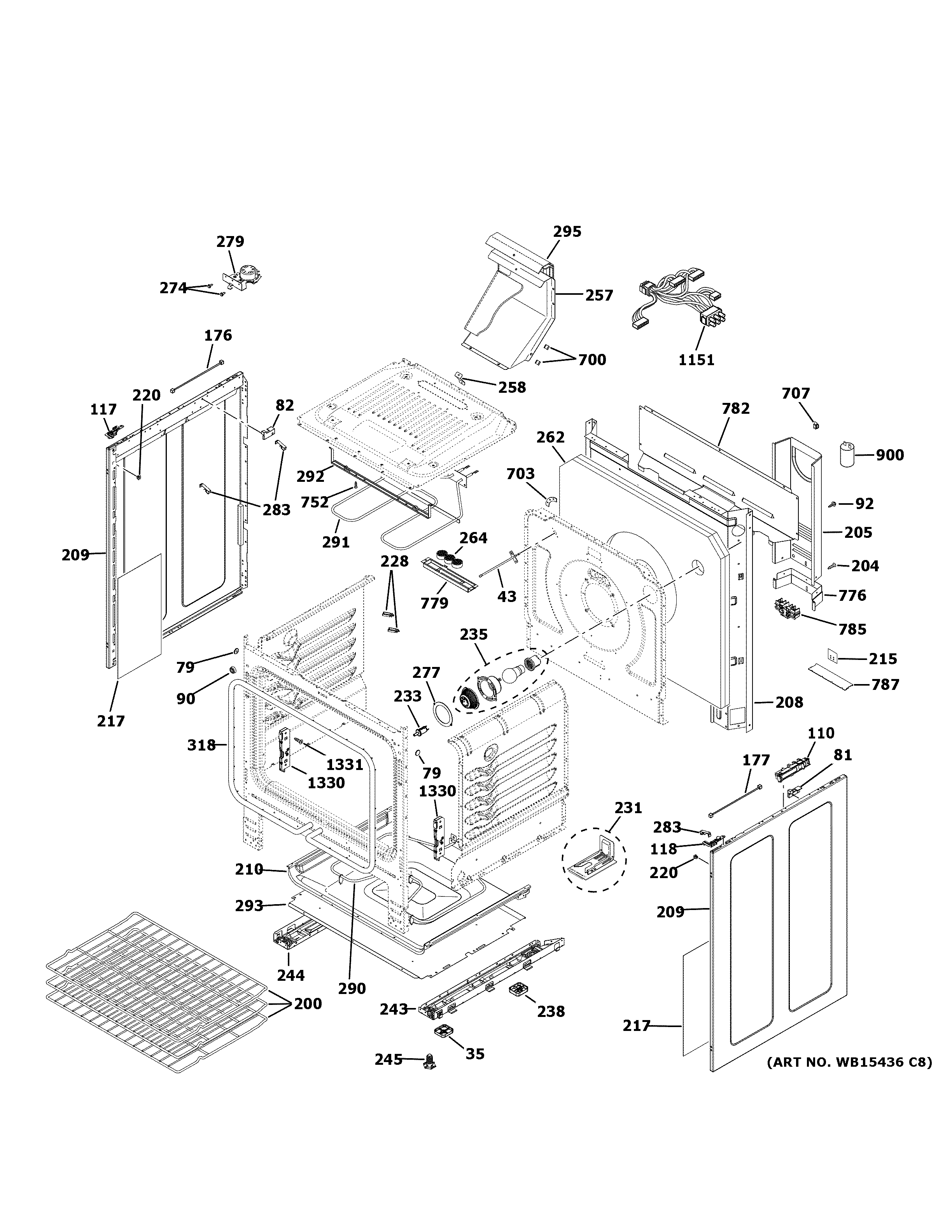

P2B935YP2FS BODY PARTS

P2B935YP2FS BODY PARTS

Written by

in

P2B935YP2FS BODY PARTS

Products

PositionProduct
35WB16X20448 GE Oven Spacer Base
43WB24X25056 GE Oven Sensor Assembly
79SPACER SIDE
81HOLDER RANGETOP
82WB02X24942 GE Rantop Holder
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
110WB13X24741 GE Oven Spark Module
117BRACKET MANIFOLD SIDE LEFT
118BRACKET MANIFOLD SIDE RIGHT
176WB18X25597 GE Ground Harness
177WB18X27594 GE Ground Harness
200OVEN RACK
204WB1K5062 GE Oven Screw
205WB34K10029 GE Oven Guard Terminal
208RANGE BACK
209WB56X29670 GE Oven Side Panel
210WB35X23552 GE Oven Bottom
215FIBER GLASS
217WB35X26892 GE Oven Side Panel Foil
220GEN WB02K0008
228GEN WB02X7066
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20449 GE Oven Base Spacer
243WB63X20215 GE Oven Support Base
244WB63X20216 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
257WB34X20294 GE Vent Assembly
258BRACE VENT
262INSULATION ASSEMBLY
264WB35K10028 GE Oven Catalyst Support
274GEN WB01K0044
277WB32K10044 GE Oven Light Gasket
279WB10X24780 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
290WB30X46987 GE Bake Element
291WB30X46986 GE Broil Element
292WB28X20452 GE Broil Support
293WB44X10051 GE Oven Convection Element
295WB35X24787 GE Vent Insulation
318WB32X29539 GE Oven Gasket Assembly
700WB02K10380 GE Insulation Clip
703BRACKET OVEN
707WB02K10267 GE Wire Clip
752WB01X26995 GE Oven Screw 8-18 AB X 5/16
776WB34K10054 GE Terminal Comp Guard
779GEN WB38K10004
782COVER BACK
785WB27X32415 GE Block Terminal Assembly
787PLATE GROUND
900WB08K10009 GE Oven Motor Capacitor
1151HARNESS MAIN
1330WB10X28563 GE Oven Receiver Hinge
1331WR01X10065 GE Screw
