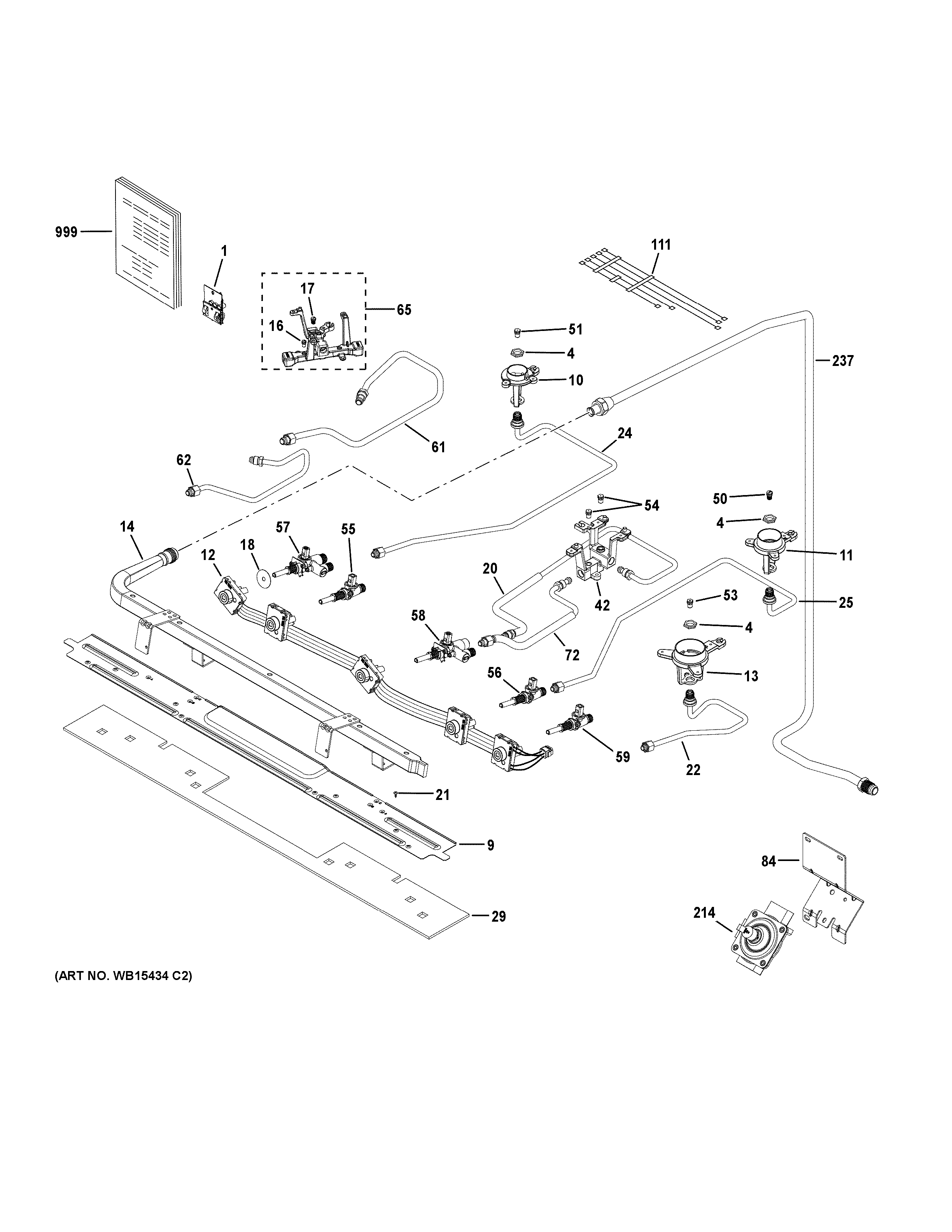

P2B940SEJ8SS GAS & BURNER PARTS

Products

PositionProduct
1WB49X25117 GE Oven LP Conversion Kit Assembly
1WB49X26120 GE Cooktop Bumper Kit Assembly
1WB28X29254 GE Range Natural Gas High Altitude Kit
1WB28X29255 GE Range LP High Altitude Kit
4WB01K10037 GE Oven Economic Nut
9WB34X20680 GE Support Manifold
10WB02X24728 GE Range Small Injector
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12WB18X27599 GE Oven Switch Harness
13WB02X24725 GE Oven Inlet XLV2
14WB28X25074 GE Stove Manifold Pipe
16WB28X28843 GE Oven Natural Gas Orifice Spud
17WB28X29600 GE Oven Orifice Spud
18WB2K24 GE Oven Valve Cover
20WB28X24978 GE Dual Oval Orifice Holder
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB28X24858 GE Oven Surface Burner Orifice Holder
24WB28X24763 GE Oven Right Rear Orifice Holder
25WB28X24850 GE Oven Orifice Holder
29WB35X24985 GE Burner Box Insulation
42WB16X24983 GE Oven Injector Dual Oval
50WB28K10107 GE Oven Orifice Spud
51WB28K10834 GE Oven Orifice Assembly
53WB28X24768 GE Oven Orifice Spud
54WB28K10023 GE Oven Orifice
55WB21X25979 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X28821 GE Range Burner Valve 3,170
58WB21X25002 GE Oven Burner Valve 270
59VALVE BURNER 270
61TUBE DUAL VALVE
62WB28X30713 GE Dual Valve Tube
65WB16X28867 GE Stove Burner Injector Assembly
72DUAL OVAL ORIFICE HOLDER
84WB02X22890 GE Oven Regulator Bracket
111WB18X33923 GE Oven High Voltage Electrode & Harness
214WB19K10018 GE Oven Pressure Regulator
237WB28X24772 GE Oven Gas Tube Connector
999PM MINI MANUAL
999PM INSTALL INSTRUCTIONS
999PM WI FI INSTRUCTIONS
999PM GAS QUICK GUIDE
999LP CONVERSION INST
