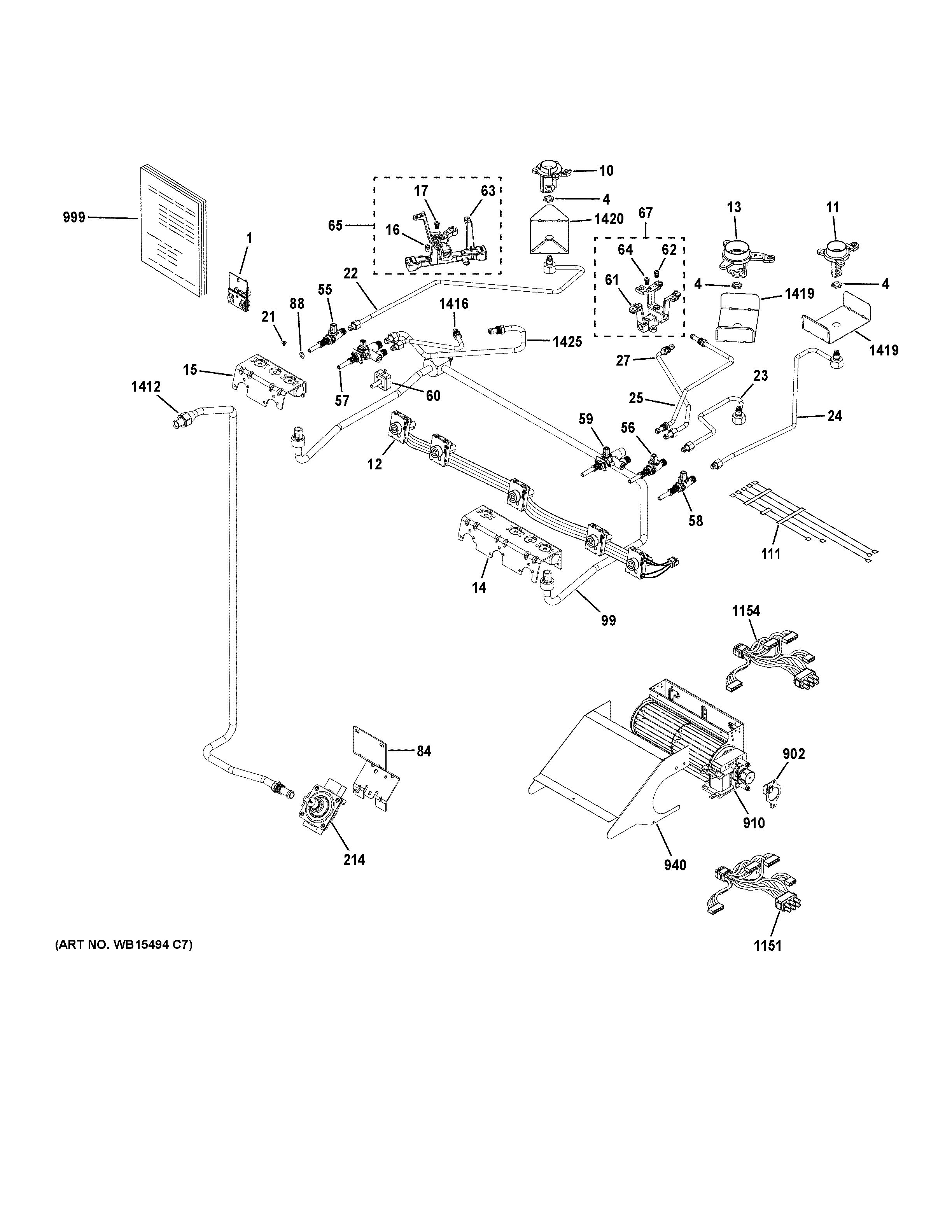

P2S930SEL4SS GAS & BURNER PARTS

P2S930SEL4SS GAS & BURNER PARTS

Written by

in

P2S930SEL4SS GAS & BURNER PARTS

Products

PositionProduct
1LABEL WIRE DIAGRAM
1WB28X28139 GE Oven LP Conversion Kit Assembly
1WB28X29254 GE Range Natural Gas High Altitude Kit
1WB28X29255 GE Range LP High Altitude Kit
4WB01K10037 GE Oven Economic Nut
10WB02X24728 GE Range Small Injector
11WB02X24727 GE Oven Right Front Burner Jet with Electrode
12HARNESS SWITCHES
13WB02X24725 GE Oven Inlet XLV2
14MANIFOLD PIPE ASM
15WB28X28199 GE Manifold Pipe Assembly
16WB28X28843 GE Oven Natural Gas Orifice Spud
17WB28X29600 GE Oven Orifice Spud
21WB01K10067 GE Oven Screw 1/4" HD 20
22WB28X28143 GE Oven Left Rear Orifice Holder
23WB28X28145 GE Oven Right Front Orifice Holder
24WB28X28149 GE Oven Right Rear Orifice Holder
25WB28X28160 GE Oven Dual Simmer Tube Valve
27WB28X28154 GE Oven Dual Valve Main Tube
55WB21X25979 GE Oven Burner Valve 270
56VALVE BURNER 270
57WB21X28821 GE Range Burner Valve 3,170
58VALVE BURNER 270
59WB21X25002 GE Oven Burner Valve 270
60WB24X28859 GE Oven Rotary Switch
61WB16X24983 GE Oven Injector Dual Oval
62WB28X25650 GE Oven Orifice Spud
63WB16X28863 GE Injector MR Hob
64WB28X28845 GE Oven Orifice Spud
65WB16X28867 GE Stove Burner Injector Assembly
67WB16X28864 GE Oven Dual Oval Burner Injector Assembly
84WB02X22890 GE Oven Regulator Bracket
88WB02X28680 GE Range Valve Cover
99WB28X28156 GE Manifold Supply Tube
111WB18X33923 GE Oven High Voltage Electrode & Harness
214WB19K10018 GE Oven Pressure Regulator
902WB27X28659 GE Oven Sensor Board
910WB26X32571 GE Range Tangential Blower
940WB34X28735 GE Oven Fan Support
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999PM QUICK GUIDE
999PM NG HA INSTRUCTIONS
999PM WI FI INSTRUCTIONS
999PM PROPANE HA INSTRUCTIONS
1151WB18X28896 GE Main Harness
1154WB18X31604 GE Oven Blower Harness
1412WB28X28151 GE Range Burner Supply Tube Box
1416WB28X28162 GE Oven Dual Simmer Tube Valve
1419WB02X28653 GE Air Deviator
1420WB02X28652 GE Air Deviator
1425WB28X28153 GE Oven Main Dual Valve Tube
