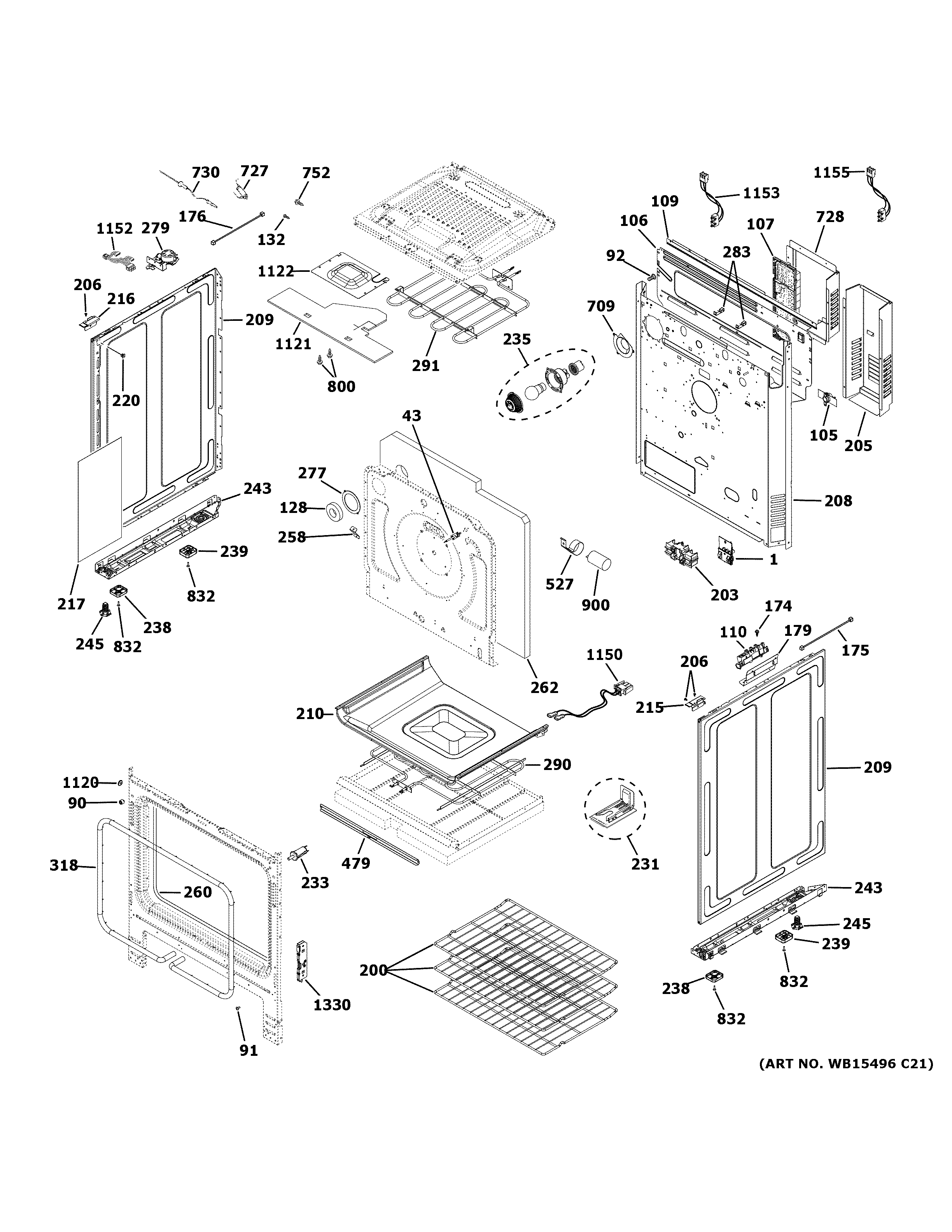

P2S930YP5FS BODY PARTS

P2S930YP5FS BODY PARTS

Written by

in

P2S930YP5FS BODY PARTS

Products

PositionProduct
1WB28X29254 GE Range Natural Gas High Altitude Kit
1LABEL WIRE DIAGRAM
1WB28X29255 GE Range LP High Altitude Kit
1WB28X39128 GE LP Conversion Kit
43SENSOR ASM
90WB02X28738 GE Oven Front Frame Bumper
91WB01T10008 GE Oven Screw 10-32
92WB1X1261 GE Oven Screw
105WB24X29505 GE Oven High Limit Switch
106COVER BACK
107MACHINE CONTROL RC17 AND RELAY WITH FRA
109WB34X28912 GE Oven Backguard Component
110WB13X24741 GE Oven Spark Module
128LAMP INSULATION
132WB01K10086 GE Oven Screw 8-18 AB TRPO 3/8 Stainless Steel
174WB01X31119 GE Screw 8-18
175WB18X27594 GE Ground Harness
176WB18X25597 GE Ground Harness
179WB34X36828 GE Spark Module Bracket
200WB48X21508 GE Oven Rack
203WB27X31509 GE Terminal Block Assembly
205WB34K10099 GE Oven Cover Motor
206WB01K10091 GE Oven Screw
208RANGE BACK
209WB56X28847 GE Oven Side Panel
210WB35X23552 GE Oven Bottom
215FRONT SUPPORT RH
216FRONT SUPPORT LH
217WB35X26892 GE Oven Side Panel Foil
220GEN WB02K0008
231WB02K10254 GE Oven Anti-Tip Bracket Assembly
233WB24X27550 GE Oven Plunger Switch
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
238WB16X20448 GE Oven Spacer Base
239WB16X20449 GE Oven Base Spacer
243WB63X20216 GE Oven Support Base
243WB63X20215 GE Oven Support Base
245WB02K10182 GE Oven Leveling Leg
258WB39K10020 GE Oven Right Drawer Slide Assembly
260WB32K2 GE Oven Gasket Seal
262WB35X28786 GE Oven Back Insulation
277WB32K10044 GE Oven Light Gasket
279WB10X28793 GE Oven Automatic Latch
283WB02X21679 GE Oven Wire Clip
290ELEMENT BAKE ASM
291BROIL ELEMENT
318WB35X29667 GE Oven Gasket
479REFLECTOR FRONT
527WB02K10172 GE Oven Capacitor Holder
709WB08K10018 GE Range Light Cover
727WB34K10121 GE Oven Probe Receptacle & Harness
728CONTROL COVER
730WB20T10024 GE Oven Thermistor Probe
752WZ4X345D GE Screw Package 12 C92
800WB01K10042 GE Oven Screw 3/8" AB IHW 8-18
832WR01X10065 GE Screw
900WB08K10009 GE Oven Motor Capacitor
1120SPACER SIDE
1121WB35X28986 GE Latch Insulation
1122GEN WB34X21710
1150HARNESS HIDDEN BAKE
1152WB18X31606 GE Latch Harness
1153WB18X28690 GE Oven Direct Connect Harness
1155WB18X29669 GE Jumper Harness
1330WB10X28563 GE Oven Receiver Hinge
