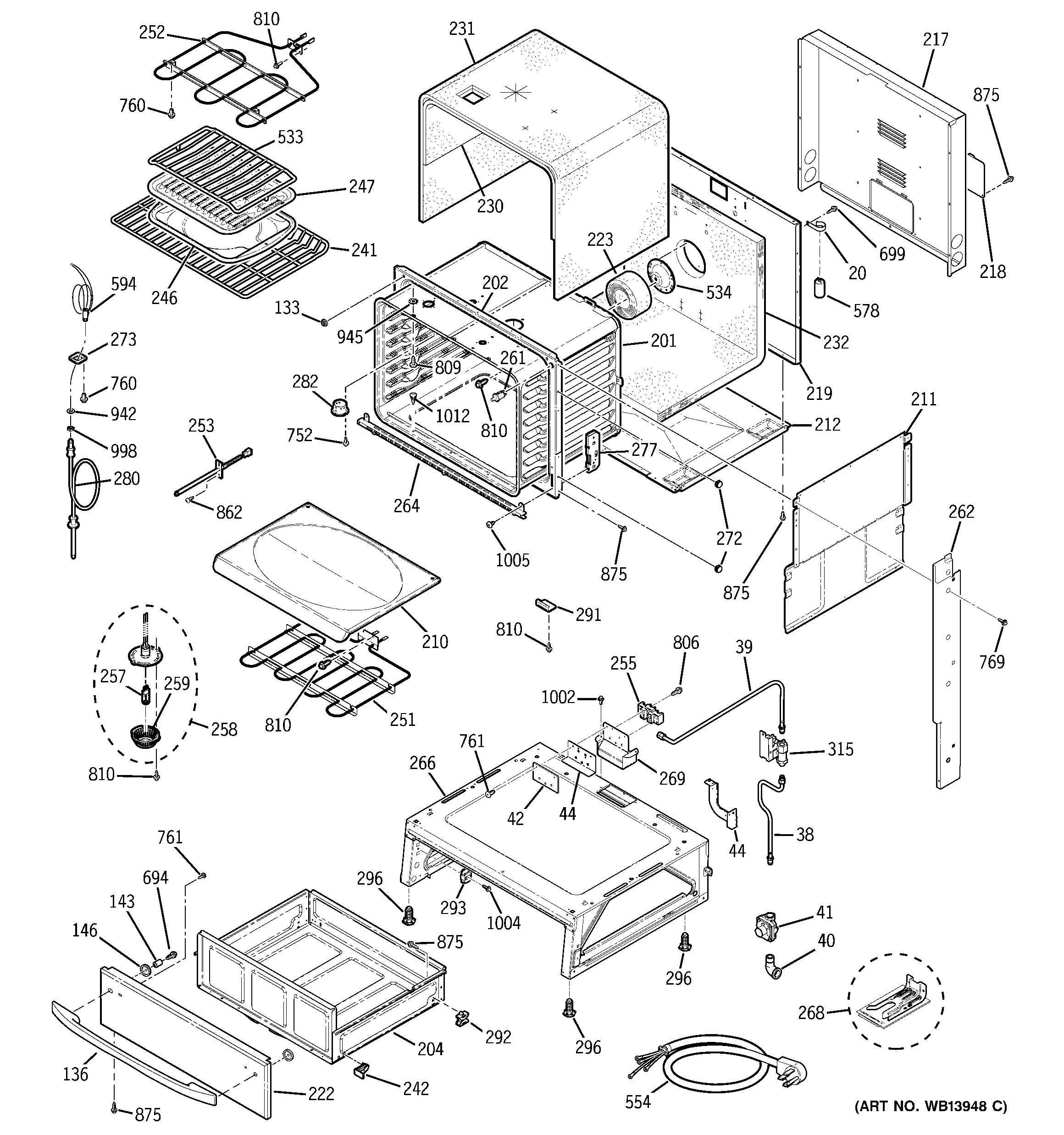

P2S975BEM1BB BODY PARTS

P2S975BEM1BB BODY PARTS

Written by

in

P2S975BEM1BB BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
20GEN WB02K5238
20WB02T10270 GE Oven Switch Bracket
38GEN WB28T10192
39GEN WB28T10191
40GEN WB28T10091
41GEN WB19T10069
42BARRIER HEAT
44WB02T10242 GE Bracket
44GEN WB02T10190
133WB01T10022 GE Oven Door Bumper
136WB15T10136 GE Oven Drawer Handle
143SPACER DR HANDLE
146DOOR HANDLE SPACER-BLACK
201WRAPPER OVEN CAV ASSY LO
202WB63T10083 GE Front Lower Frame
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
210WB63T10034 GE Oven Bottom
211GEN WB02K5306
212RETAINER INSLN BTM
217GEN WB02T10347
218GEN WB02T10234
219GEN WB02T10342
222GEN WB56T10173
223WB35T10090 GE Oven Back & Bottom Insulation
230GEN WB35T10088
231GEN WB35T10089
241GEN WB28T10049
242WB48T10068 GE Oven Wedge Drawer
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K10008 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
255WB17T10011 GE Oven Terminal Block
257WB49X29679 GE Range Halogen Bulb Kit
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
261GEN WB24T10111
262TRIM VERT SDE RT
262TRIM VERT SDE LT
264WB07T10516 GE Oven Front Trim Assembly
266GEN WB39T10012
268GEN WB02T10137
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
273PROBE COVER
273GEN WB02K5365
273GEN WB02X8309
277GEN WB10T10083
280WB20T10024 GE Oven Thermistor Probe
282WB38X33650 GE Vent Tube
282WB28T10075 GE Oven Vent Inlet Duct
291GEN WB02X9152
292WB48T10013 GE Oven Drawer Support
293WB02X33180 GE Oven Drawer Glide
296WB02X10521 GE Oven Leveling Leg
296GEN WB01M0018
315WB19T10068 GE Oven Motorized Valve Lockout
533WB48X5108 GE Oven Roasting Rack
534WB26T10015 GE Oven Cavity Support
554WB08T10029 GE Range Cord 4' 3-Prong
578GEN WB27T10503
594GEN WB18T10390
694WB1K5157 GE Oven Black Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
761WB1K5029 GE Oven Screw
769WB1X500D GE Oven Screw Package
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
862GEN WB01X1178
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
