P2S975DEP1WW BODY PARTS

P2S975DEP1WW BODY PARTS

Written by

in

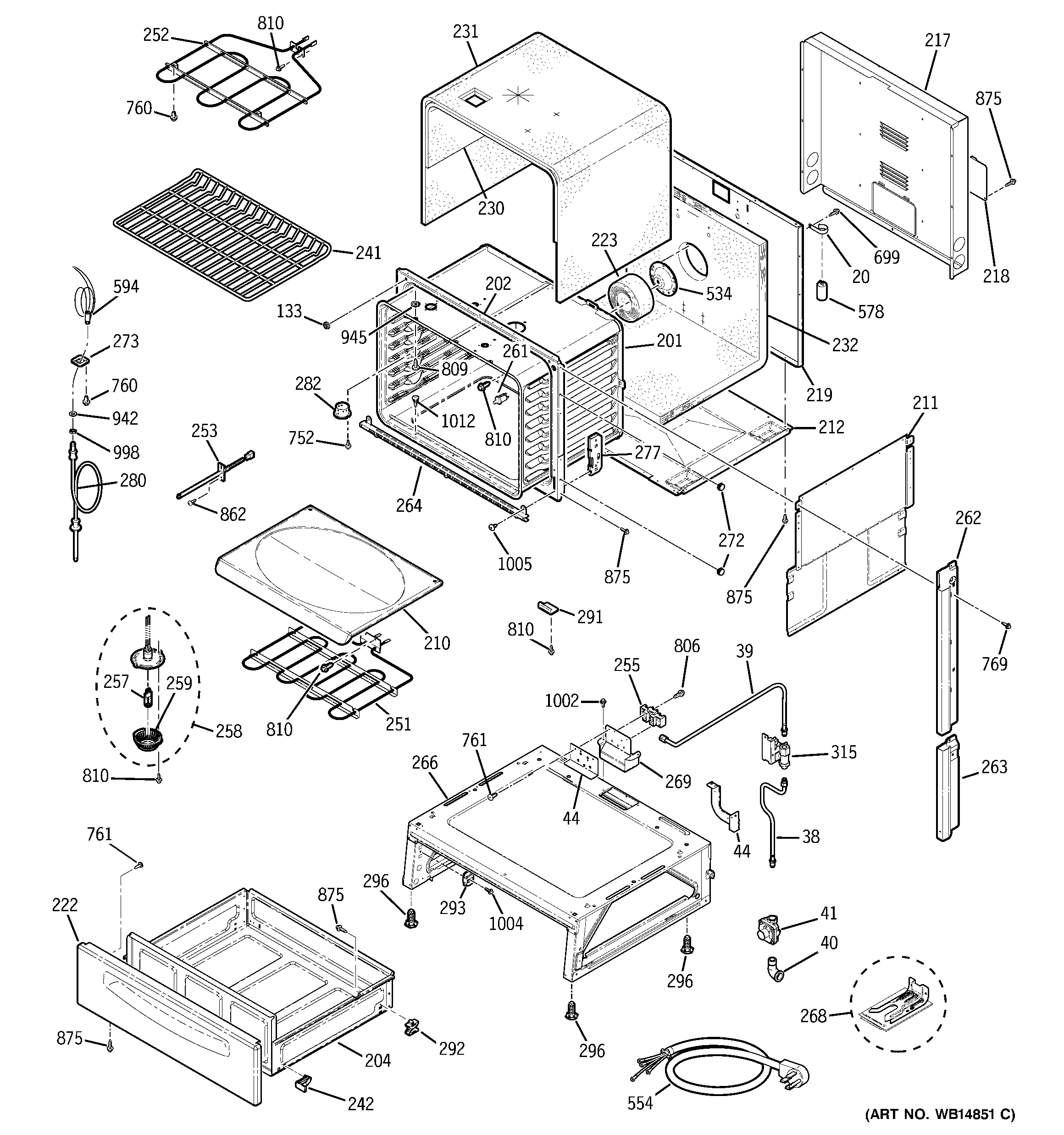

P2S975DEP1WW BODY PARTS

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
38GEN WB28T10192
39GEN WB28T10191
40GEN WB28T10091
41GEN WB19T10075
44WB02T10242 GE Bracket
44GEN WB02T10190
133WB01T10022 GE Oven Door Bumper
201WB63T10149 GE Oven Cavity Wrapper Assembly
202WB63T10083 GE Front Lower Frame
204WB55T10180 GE Oven Drawer Body Assembly
210WB63T10034 GE Oven Bottom
211WB02T10284 GE Oven Side Insulation Retainer
212WB02T10372 GE Bottom Insulation Retainer
217GEN WB02T10347
218GEN WB02T10234
219GEN WB02T10342
222GEN WB56T10267
222GEN WB56T10268
223WB35T10090 GE Oven Back & Bottom Insulation
230GEN WB35T10187
231GEN WB35T10089
241WB48T10059 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
251WB44K10008 GE Oven Bake Element
252WB44T10043 GE Oven Broil Unit Assembly
253WB23T10015 GE Oven Sensor Probe
255WB17T10011 GE Oven Terminal Block
257WB49X29679 GE Range Halogen Bulb Kit
258WB25T10096 GE Oven Halogen Lamp Assembly
259WB25T10027 GE Oven Lens Lamp
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10523 GE Oven Vertical Trim Side Left (White)
262WB07T10521 GE Vertical Side Light Trim (Black)
262WB07T10520 GE Right Side Trim (Black)
262WB07T10522 GE Oven Trim Vertical Side RT (White)
263WB07T10632 GE Vertical Left Side Trim
263TRIM VERT SIDE RT (BK)
263WB07T10635 GE Oven Vertical Side Trim RT (White)
263WB07T10636 GE Oven Vertical Side Trim (White)
264WB07T10516 GE Oven Front Trim Assembly
266GEN WB39T10012
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
273GEN WB02K5365
277GEN WB10T10083
280WB20T10024 GE Oven Thermistor Probe
282WB38X33650 GE Vent Tube
282WB28T10075 GE Oven Vent Inlet Duct
291GEN WB02X9152
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
315WB19T10068 GE Oven Motorized Valve Lockout
534WB26T10015 GE Oven Cavity Support
554WB08T10029 GE Range Cord 4' 3-Prong
578WB27T10662 GE Oven Capacitor
594GEN WB18T10390
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1K5029 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
761WB1K5185 GE Oven White Screw
769WB1X500D GE Oven Screw Package
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
862GEN WB01X1178
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
1012WB01T10048 GE Oven Type A Shoulder Screw 10-16
