P2S975DEP2WW COOKTOP

P2S975DEP2WW COOKTOP

Written by

in

P2S975DEP2WW COOKTOP

Products

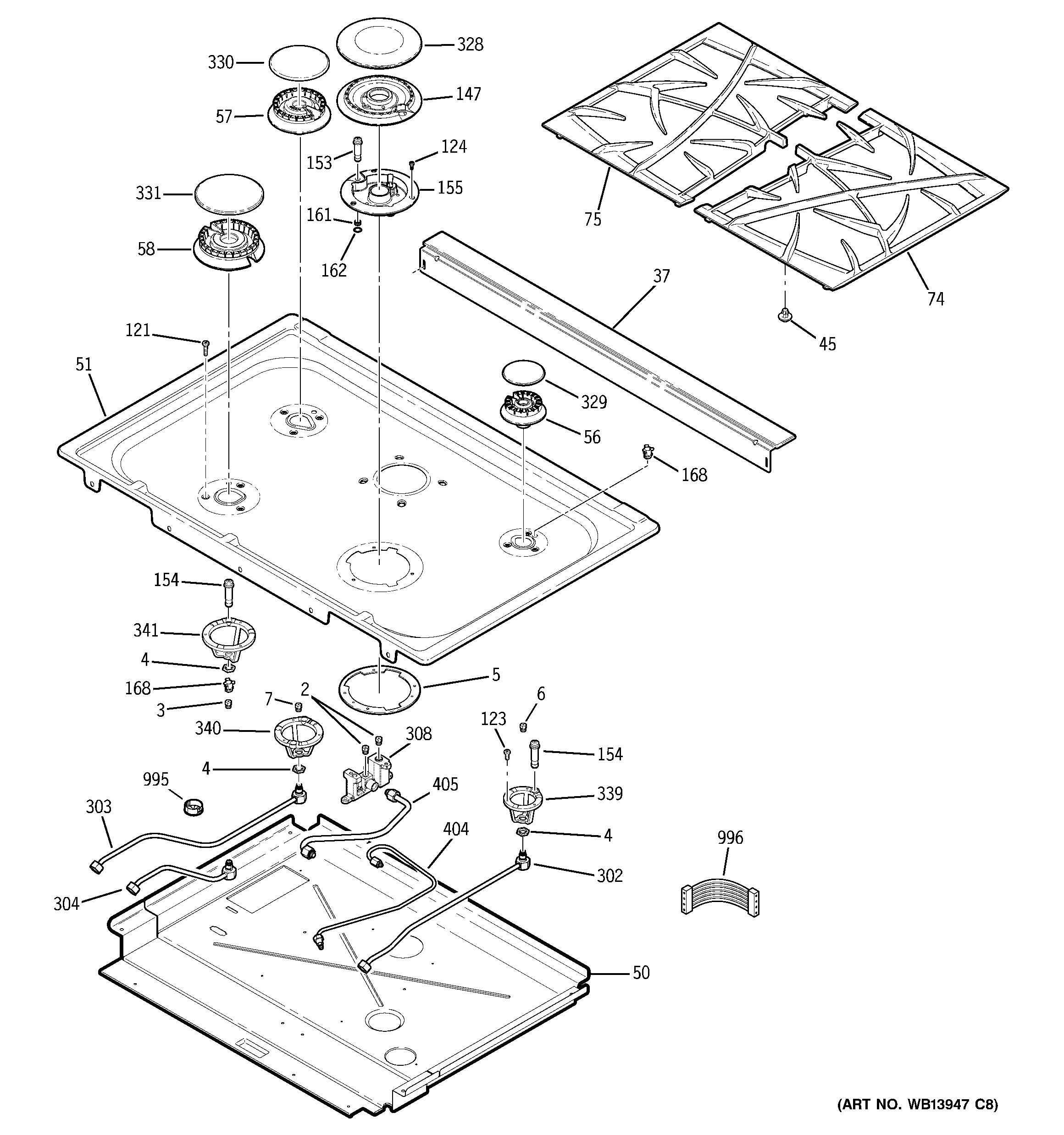

PositionProduct
2WB28T10116 GE Oven Orifice Spud Natural Gas Simmer
2WB28T10117 GE Oven LP Main Orifice Spud
2GEN WB28T10202
3ORIFICE SPUD LF 90 LP
3WB28T10147 GE Oven LP Main High Alt Orifice
3ORIFICE SPUD LF 145 NG
4WB01K10037 GE Oven Economic Nut
5GEN WB02T10346
6ORIFICE SPUD RR 65 LP
6ORIFICE SPUD RR 95 NG
7ORIFICE SPUD LR 130 NG
7ORIFICE SPUD LR 85 LP
37OPTIONAL BACKSPLASH KIT
37KIT BACKSPLASH (BK)
45WB02T10461 GE Oven Range Grate Foot
50GEN WB64T10068
51GEN WB61T10158
51MAINTOP BK
56WB16K10070 GE Oven Small Burner Head Cooktop Gas Stove/Range
57WB16K10055 GE Oven Burner Base
58BURNER 12K
74GEN WB31T10138
74GEN WB31T10134
75GEN WB31T10139
75GEN WB31T10135
121SCREW 6-32 5/8 OVAL PHILLIPS
123WB01T10092 GE Oven Main Simmer Screw
124WB01T10104 GE Oven Screw 8-32 MCH
147WB16T10038 GE Oven Main Head Burner
153ELECTRODE TOP
154GEN WB13K10014
155WB16T10047 GE Range Burner 18K-Simmer Base
161WB09T10011 GE Oven Spring Igniter
162WB02T10323 GE Oven Igniter Washer
168WB01K10112 GE Range Oven Electrode Clip
302GEN WB28T10188
303GEN WB28T10189
304GEN WB28T10190
308WB28T10114 GE Oven Injector Burner 18K
328GEN WB13T10068
328WB29X43469 GE Burner Cap 18K
329WB29K10002 GE Range Oven Cooktop Small Burner Cap
329WB29K10022 GE Oven Burner Cap Assembly
330WB29K10023 GE Oven Burner Cap Assembly
330WB29K10004 GE Oven Gray Burner Cap
331WB29K10007 GE Oven Burner Cap, Left
331WB29K10024 GE Burner Cap Oven
339WB02K10360 GE Oven Circuit Bracket Small
340WB02K10361 GE Oven Orifice Holder
341WB02K10362 GE Oven CKT Bracket MDM & L
404GEN WB28T10194
405GEN WB28T10193
995GEN WB02T10489
996GEN WB18T10439
