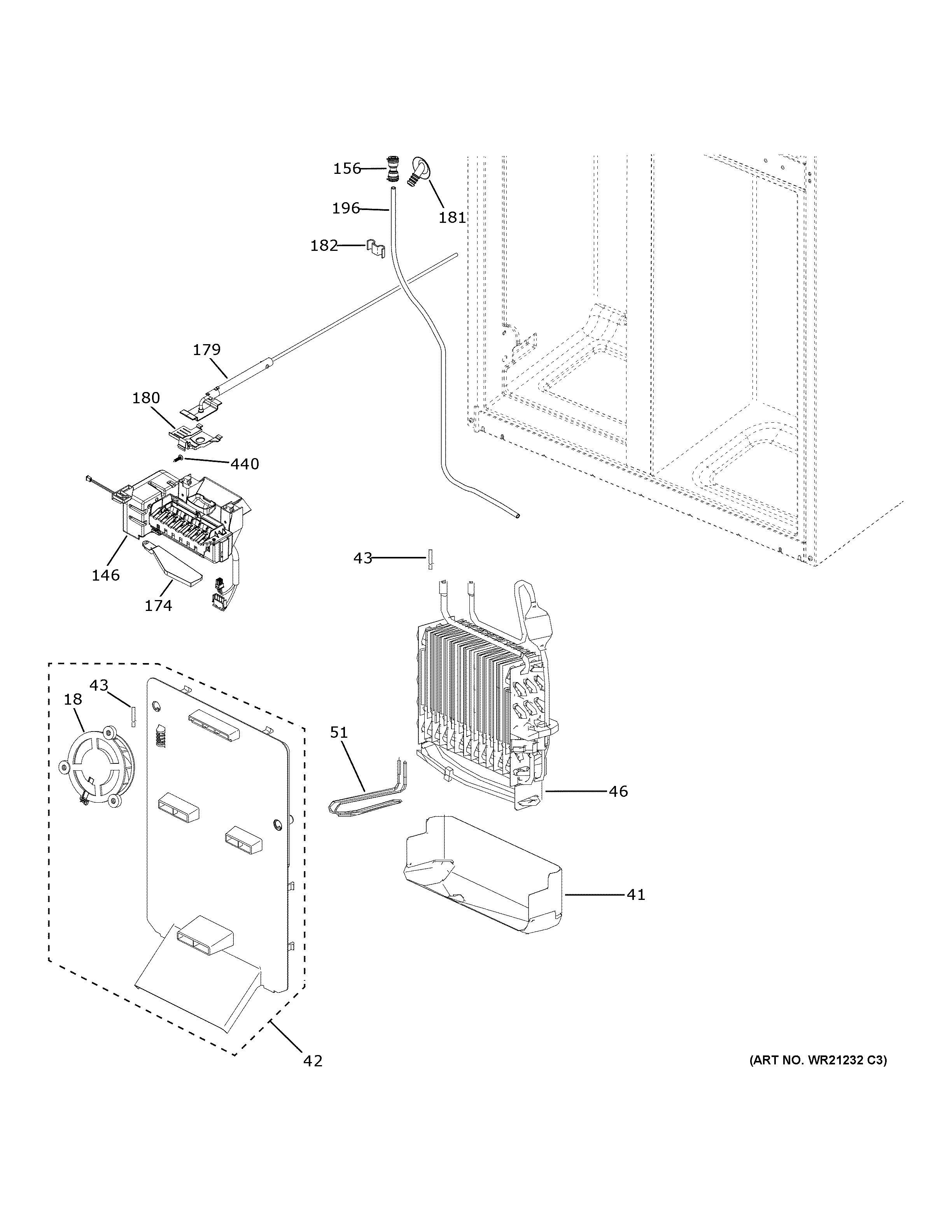

PAD28BYTCFS FREEZER SECETION

PAD28BYTCFS FREEZER SECETION

Written by

in

PAD28BYTCFS FREEZER SECETION

Products

PositionProduct
18WR60X32071 GE Refrigerator Evaporator Fan
41FREEZER DRAIN TROUGH
42FREEZER EVAPORATOR COVER W/ THERMISTOR A
43WR55X32910 GE Thermistor
46WR87X32944 GE Freezer Evaporator W/ Foam Blo
51WR09X32933 GE Defrost Heater
146WR29X44279 GE Icemaker Small Cube
156WR02X13738 GE Refrigerator Coupler Straight 1/4
174WR29X36234 GE Refrigerator Feeler Arm
179WR29X44280 GE Heater Fill Tube Assembly
180FILL TUBE COVER
181FILL TUBE GROMMET
182WATER LINE CLIP
1961/4 WATER LINE AND DOOR GROMME
440WR01X28345 GE Screw
