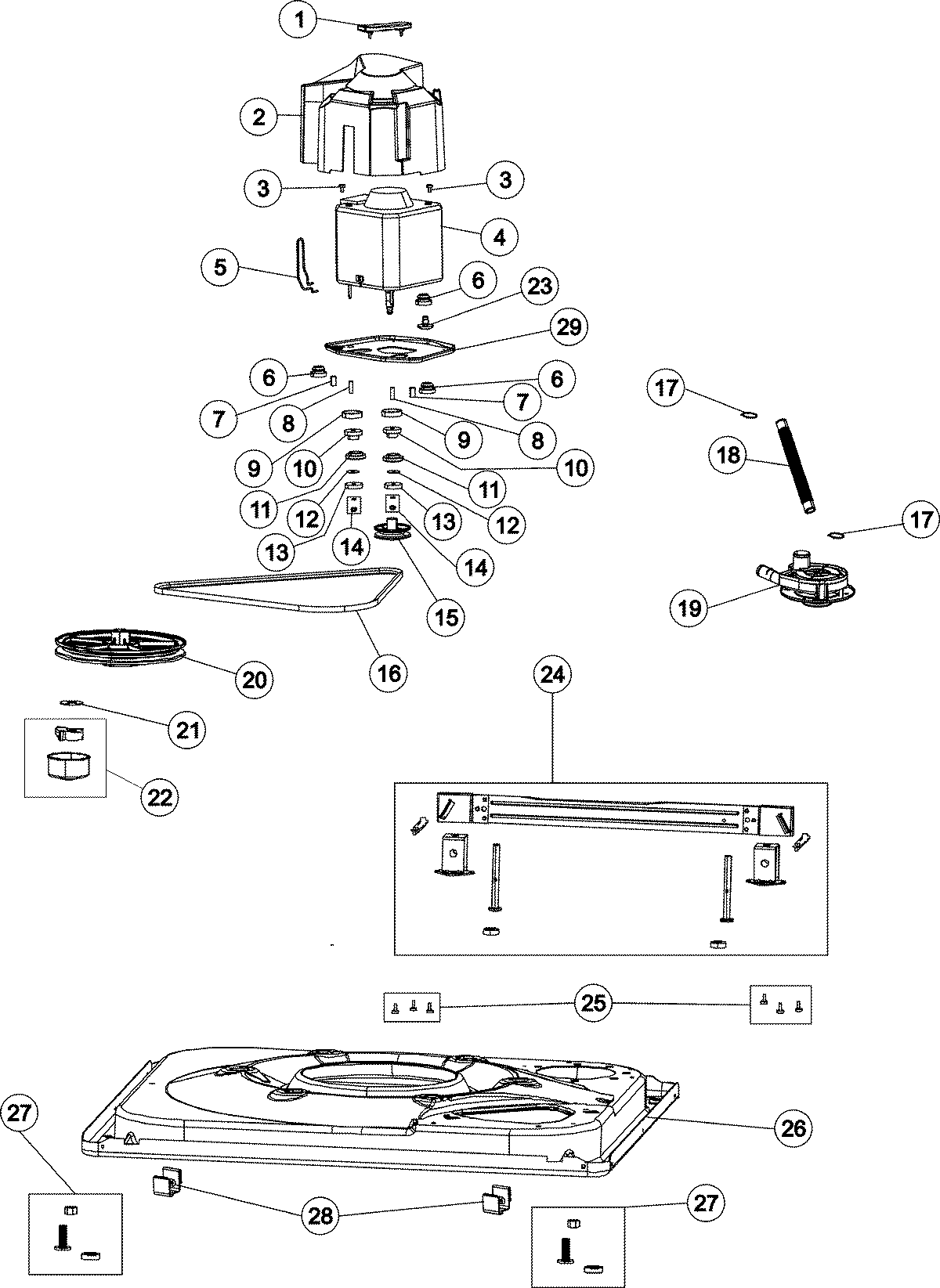

PAV2755AAW 01 – BASE & MOTOR

PAV2755AAW 01 – BASE & MOTOR

Written by

in

PAV2755AAW 01 – BASE & MOTOR

Products

PositionProduct
1MAY 35-2065
2MAY 22002721
3MAY 25-7733
4MAY 22004283
5WP22004376 Whirlpool Spring Motor
6WP35-3646 Whirlpool Isolator
7MAY 25-7831
8MAY 25-7830
9MAY 35-3570
10WP33-9946 Whirlpool Isolator
11SLIDE, MOTOR
12MAY 25-7047
13WP33-9967 Whirlpool Washer Assembly
14WPY707702 Whirlpool Locknut
16MAY 35-2279
17WP285655 Whirlpool Hose Clamp
18WP21001915 Whirlpool Hose Tub
19MAY 21002219
20MAY 21001833
21MAY 35-2132
2212002213 Whirlpool Washer Pulley and Thrust Bearing Kit
23FOOT SLIDE, ISOLATOR
24MAY 21002221
25WP489483 Whirlpool Screw
26MAY 21001893
27MAY 25001119
28WP53-0120 Whirlpool Clip
29MAY 21001366
