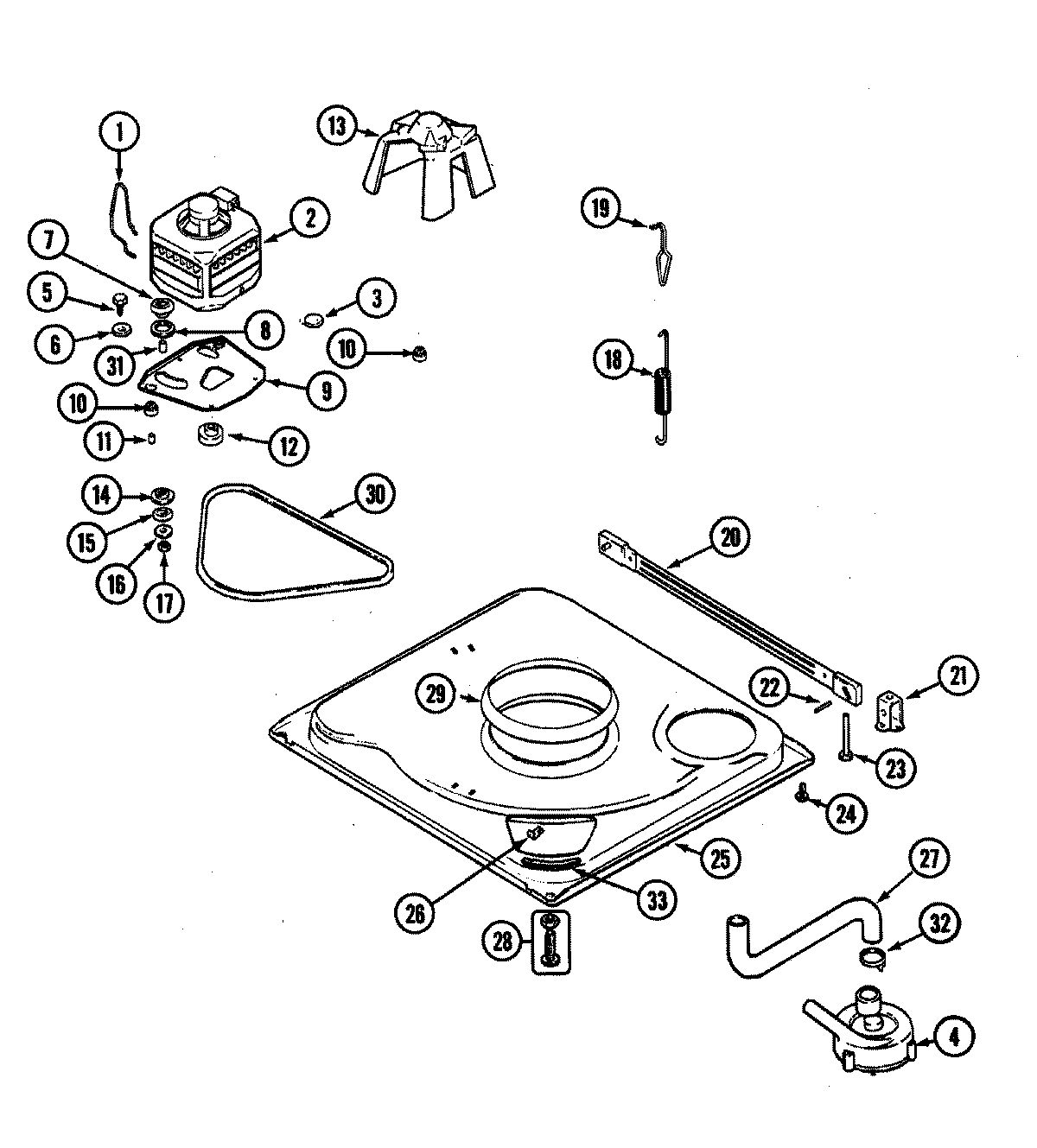

PAV3300AKW 02 – BASE (SERIES 19)

Products

Position	Product
1	WP22004376 Whirlpool Spring Motor
2	MAY 21001637
3	FOOT SLIDE, ISOLATOR
4	WP35-6780 Whirlpool Water Pump
5	MAY 25-7833
6	MAY 25-7834
7	WP33-9946 Whirlpool Isolator
8	MAY 35-3570
9	MAY 21001783
10	WP35-3646 Whirlpool Isolator
11	MAY 25-7831
12	W10143344 Whirlpool Pulley Assembly
14	SLIDE, MOTOR
15	WP33-9967 Whirlpool Washer Assembly
16	MAY 25-7047
17	WPY707702 Whirlpool Locknut
18	12002773 Whirlpool Spring Kit (Pack of 6)
19	WP21001166 Whirlpool Hook
20	MAY 21001754
21	MAY 35-2046
22	MAY 35-2052
23	WP22004469 Whirlpool Leg Foot
24	WP489483 Whirlpool Screw
25	MAY 21001893
26	SPEEDNUT, MOTOR
27	WP21001915 Whirlpool Hose Tub
28	FOOT & PAD ASSEMBLY (FRONT)
29	WP21002026 Whirlpool Snubber Assembly
30	WP21352320 Whirlpool Washer Drive Belt
31	MAY 25-7830
32	WP285655 Whirlpool Hose Clamp
33	MAY 35-2065
