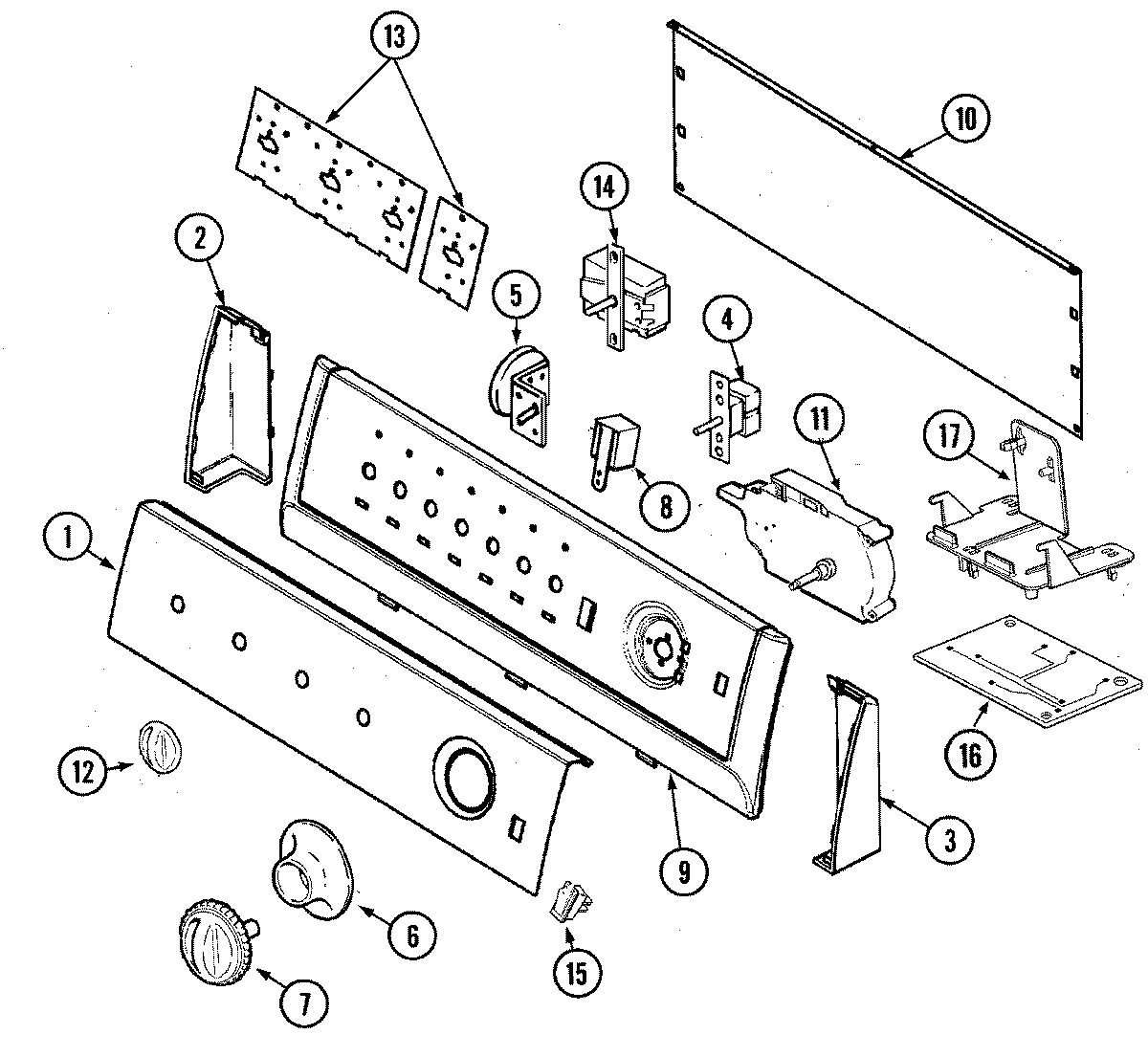

PAV5000AWW 05 – CONTROL PANEL

Products

Position	Product
1	MAY 21001816
2	MAY 21001519
3	MAY 21001523
4	MAY 21001852
4	MAY 21001820
5	WP21001554 Whirlpool Washer Switch
5	MAY 21001882
6	21001600 Whirlpool White Skirt Timer
7	WP21001972 Whirlpool Timer Knob
8	MAY 31001397
9	MAY 21001745
10	MAY 25-3457
10	MAY 21001527
11	WP90767 Whirlpool Screw
11	MAY 21001595
12	MAY 21001525
13	MAY 21001517
13	MAY 21001603
14	MAY 21001227
15	MAY 21001813
16	WP22003906 Whirlpool Electronic Control Board
17	MAY 21001825
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
18	MAY 22003218
18	MAY 21001809
19	MAY 21001826
19	MAY 21001853
19	MAY 21001860
19	MAY 21001949
20	MAY 12002417
