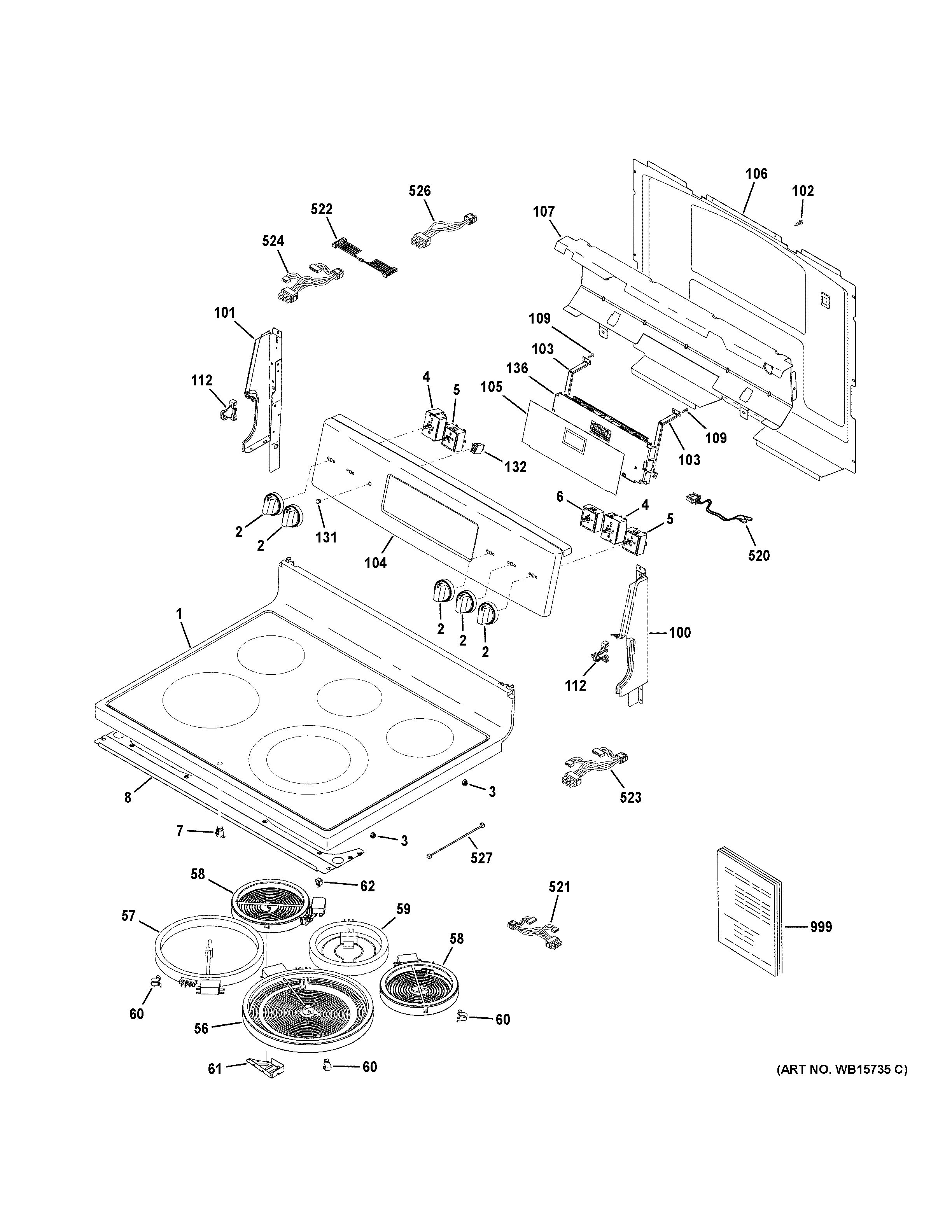

PB900YV1FS CONTROL PANEL & COOKTOP

PB900YV1FS CONTROL PANEL & COOKTOP

Written by

in

PB900YV1FS CONTROL PANEL & COOKTOP

Products

PositionProduct
1RANGE TOP AND GLASS ASM
2KNOB
3WB14K10004 GE Oven Pin Locator
4WB24T10029 GE Oven Infinite Burner Switch
5WB24T10153 GE Oven Infinite Switch Control
6INFINITE CONTROL SWITCH
7WB27T10668 GE Oven Light Indicator
8ENCLOSURE COOKTOP FRONT
56WB30T10130 GE Oven Radiant Surface Element
57WB30T10133 GE Oven Dual Radiant Element
58WB30X26460 GE Oven Halogen Element 6
59WB30T10124 GE Oven 6" Radiant Warmer Element
60WB09X40389 GE Radiant Element Spring
61GEN WB02K10292
62WB02K10267 GE Wire Clip
100DARK DORIAN GRAY END SUPPORT RH
101DARK DORIAN GRAY END SUPPORT LH
102WB1K5062 GE Oven Screw
103WB34X38000 GE Control Bracket
104COMPLEMENT AND BACKSPLASH ASM
105BLACK OVERLAY RC19
106COVER BACK
107DIVIDER WIRING
109WZ4X345D GE Screw Package 12 C92
112WB14K10003 GE Range Top Hinge
131LENS
132LAMP PILOT
136RC19 CONTROL (FLASHED)
520HARNESS CONTROL
521HARNESS COOKTOP
522HARNESS INTERFACE
523HARNESS WIRE INFINITE
524HARNESS WIRE INFINITE
526WB18X29669 GE Jumper Harness
527WB18X31424 GE Ground Harness
999PM MINI MANUAL AND WIRING
999PM WI FI INSTRUCTIONS
999PM QUICK OWNERS MANUAL
999PM OWNERS MANUAL
