PB900YV1FS DOOR & DRAWER PARTS

PB900YV1FS DOOR & DRAWER PARTS

Written by

in

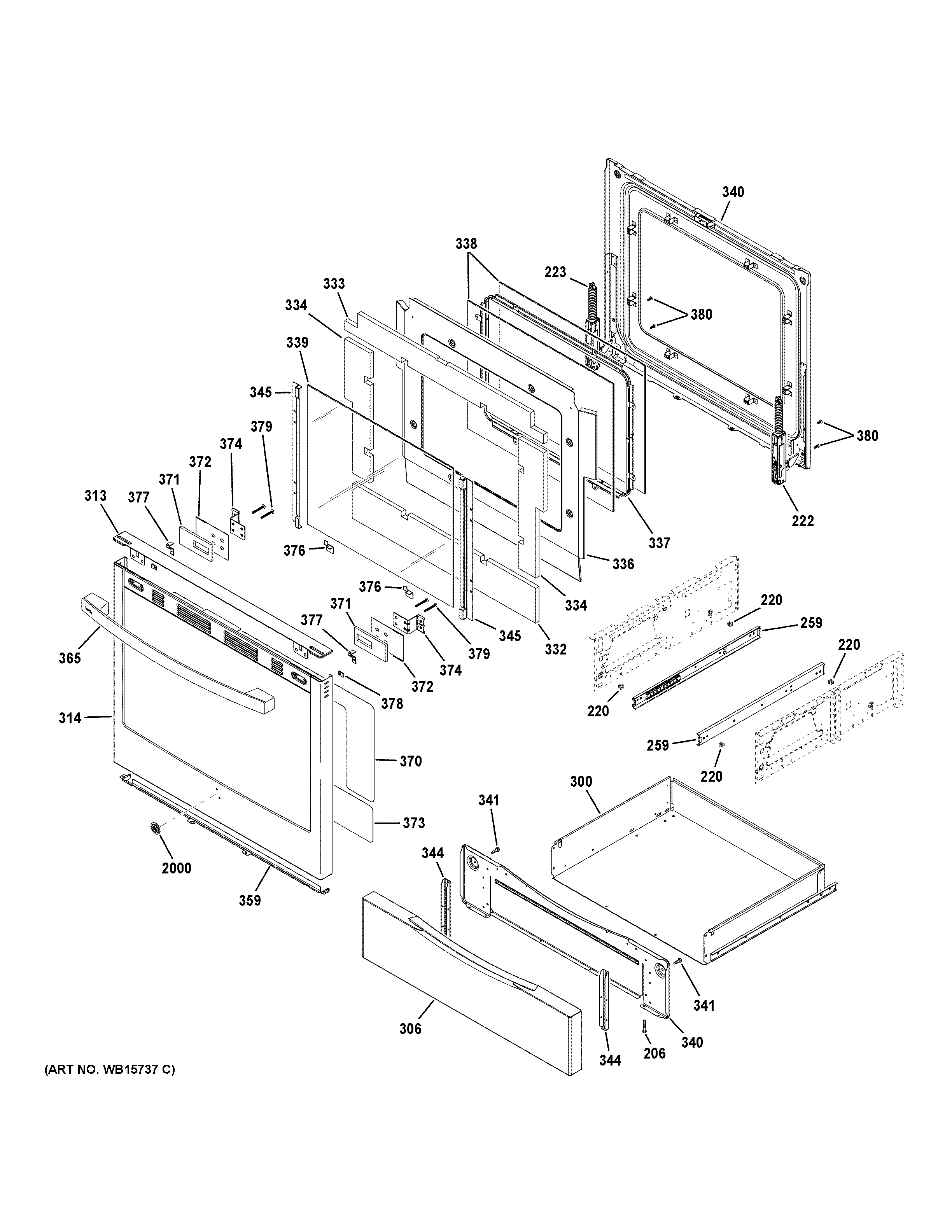

PB900YV1FS DOOR & DRAWER PARTS

Products

PositionProduct
206WB01K10091 GE Oven Screw
220GEN WB02K0008
222DOOR HINGE
223WB10X27980 GE Oven Door Hinge
259WB63X27680 GE Oven Slide and Bearing Kit
300WB49X26422 GE Oven Drawer Body Assembly
306WB56X48287 GE Drawer Panel and Foil Assembly
313COVER VENT TRIM
314GLASS DOOR ASM
332INSULATION LOWER DOOR
333INSULATION UPPER DOOR
334INSULATION SIDE DOOR
336GUARD INSULATION
337FRAME WINDOW ASSY
338CRYSTAL WINDOW
339CRYSTAL WINDOW
340LINER DOOR & FOIL ASM
341SCREW M4X8
344BRACKET MOUNTING DRAWER
345BRACKET GLAAS DOOR
359BLACK BARRIER DOOR
365WB15X35049 GE Stainless Steel Handle
370FOIL DOOR U
371FOIL DOOR U
372COVER INSULATION
373INSULATION TRIM DOOR
374BRACKET HANDLE
376SPACER GLASS INNER DOOR
377BRACKET TRIM
378WB1K2 GE Oven Speednut
379WB01X32512 GE Screw 10-24
380WB01T10008 GE Oven Screw 10-32
2000WB02X29637 GE Oven Badge Assembly
