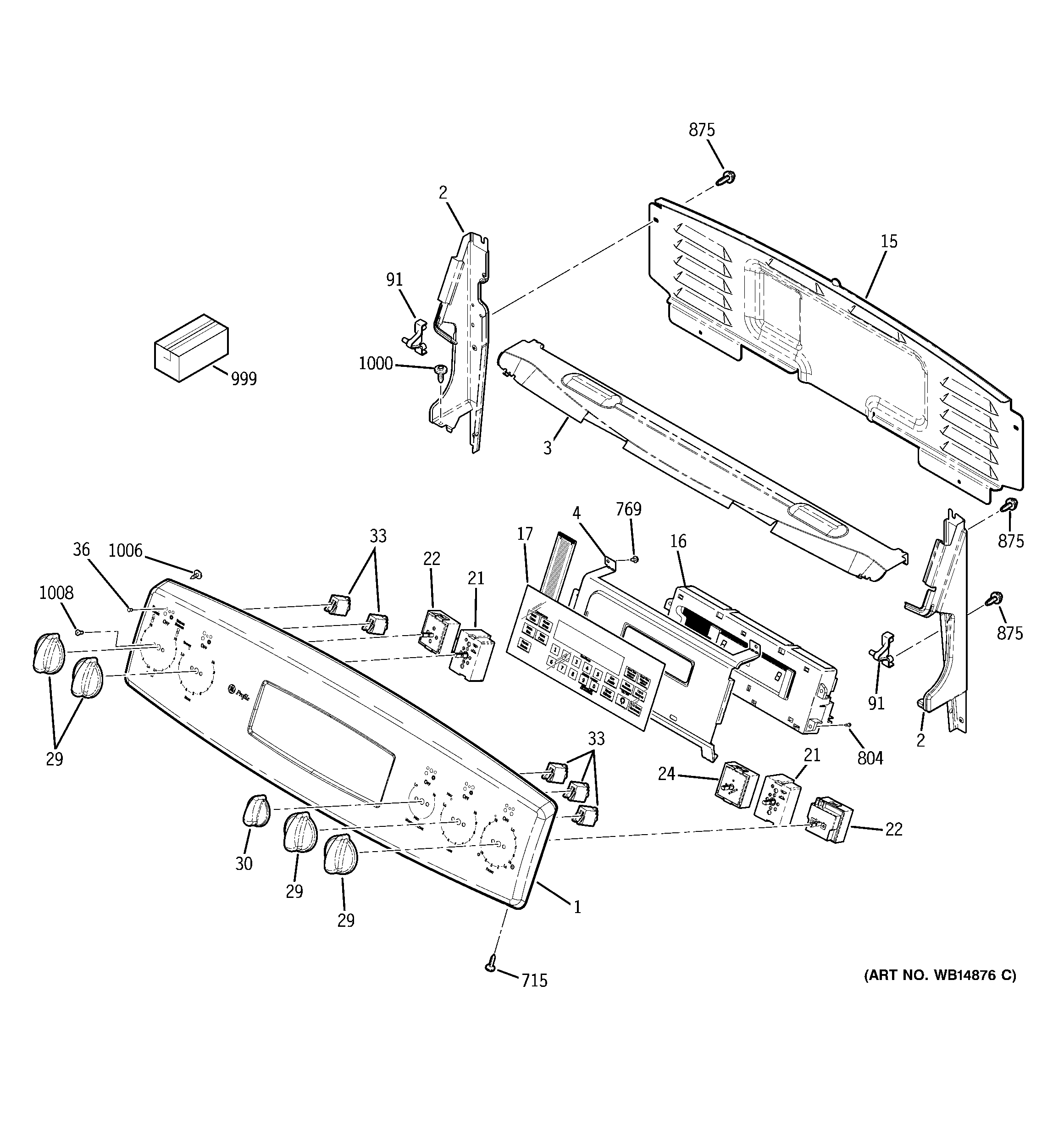

PB909DP3BB CONTROL PANEL

PB909DP3BB CONTROL PANEL

Written by

in

PB909DP3BB CONTROL PANEL

Products

PositionProduct
1GEN WB07T10657
1GEN WB07T10652
2WB36T11207 GE Oven End Plate LT
2WB36T11206 GE Oven End Plate Right
2WB36T11204 GE Oven Right End Plate
2WB07X27823 GE End Plate LT (Black)
3WB02X28994 GE Heat Shield
4GEN WB02T10491
15GEN WB02T10499
16GEN WB27T11150
17GEN WB27T11268
17GEN WB27T11246
21WB24T10145 GE Oven Burner Switch
22WB24T10153 GE Oven Infinite Switch Control
24INFINITE CONTROL SWITCH
29KNOB PROFILE SU
29KNOB PROFILE SU
30KNOB GE S/U (WHT)
30KNOB GE S/U (BLK)
33WB25T10087 GE Oven Light Indicator Assembly
33GEN WB25T10086
36LENS
91GEN WB10T10125
715WD2X433 GE Dishwasher Trim Screw
715WD2X432 GE Dishwasher Screw
769WZ4X44D GE Screw Package
804WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 49-80602
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-14852
999INSTR INSTALL OVN DOOR
999GEN 31-10677
999GEN 31-10619
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
1008WB1X5904 GE Oven Screw 8-18 BA
