PB909DP5BB BODY PARTS

PB909DP5BB BODY PARTS

Written by

in

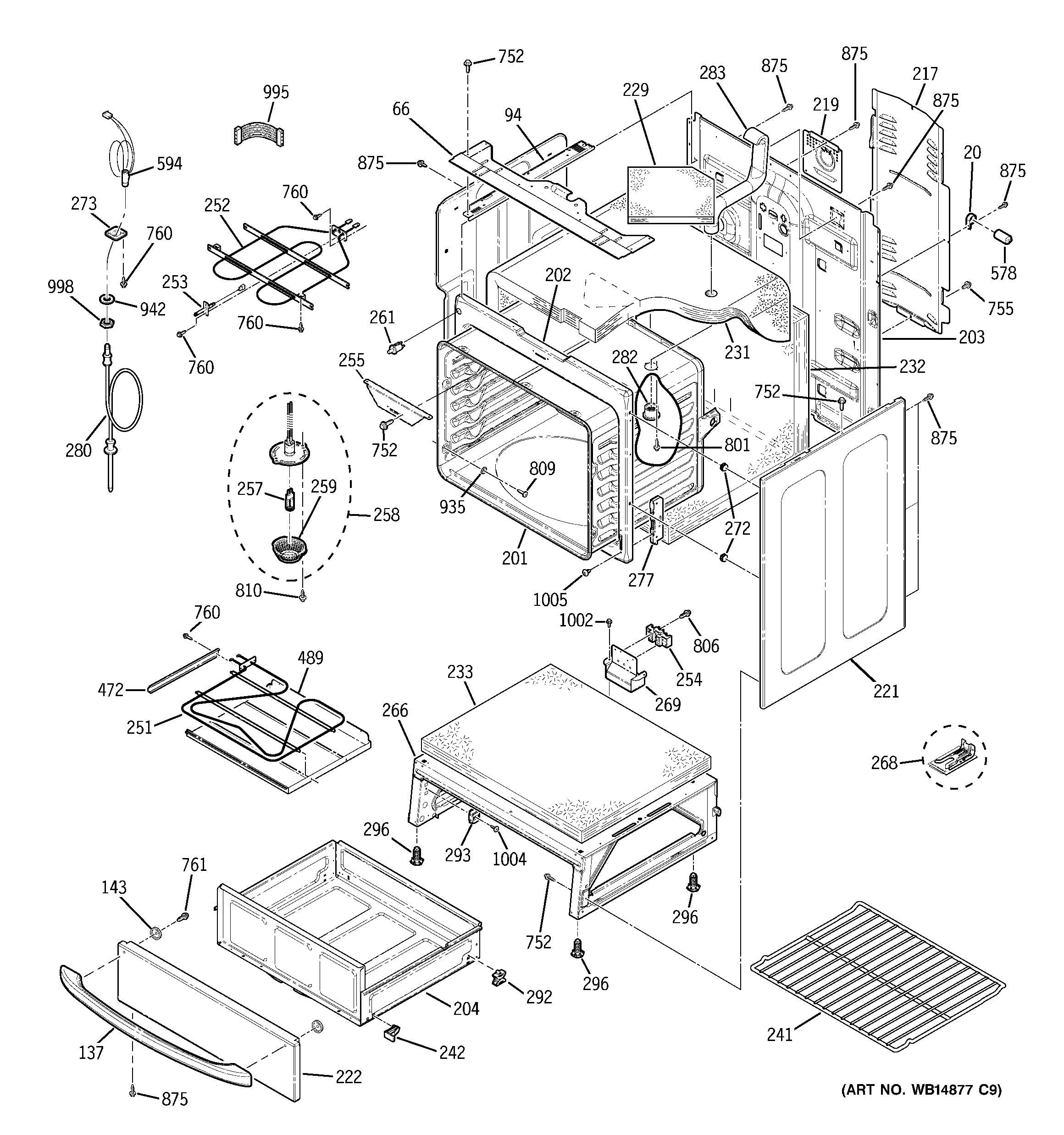

PB909DP5BB BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66ENCLOSURE RANGETOP
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
137GEN WB15T10138
137GEN WB15T10137
137WB15T10136 GE Oven Drawer Handle
143SPACER DR HANDLE
201GEN WB63T10150
202GEN WB63T10096
203GEN WB63T10147
204WB55T10178 GE Oven Mechanical Drawer Body Assembly
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28884 GE Oven White Side Panel
221WB63T10121 GE Side Panel (Bq)
221WB56X28881 GE Oven Side Panel Black
222GEN WB56T10175
222GEN WB56T10174
222GEN WB56T10173
229WB35T10017 GE Oven Vent Tube Insulation
231WB35T10211 GE Oven Insulation
232GEN WB35T10023
233GEN WB35T10022
241WB48T10082 GE Oven Rack
242WB48T10068 GE Oven Wedge Drawer
251WB44X45499 GE Oven Bake Element
252WB44T10094 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
255GEN WB07T10517
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10075
259OV LAMP LENS LWR
261WB24T10147 GE Oven SPDT Light Switch
266WB63X28540 GE Base Assembly Rivet
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269WB17T10021 GE Oven Mount Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
283WB28T10217 GE Radiant Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
594GEN WB08T10040
752WB1K5200 GE Oven Screw 340531
755WD2X433 GE Dishwasher Trim Screw
755WD2X432 GE Dishwasher Screw
760WB1X536 GE Oven Screw
761WB1K5157 GE Oven Black Screw
801WB1M1 GE Oven Screw
806WB01T10103 GE Oven Screw 10-16 AB HXW .532
809WB1X1137 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
935WB01T10112 GE Washer Aluminum
942WB1X5573 GE Oven Washer
995WB18T10470 GE Oven Lead Wire 14 GA Green
995GEN WB18T10471
998WB1X5572 GE Oven Nut
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
