PB910TP2CC DOOR

PB910TP2CC DOOR

Written by

in

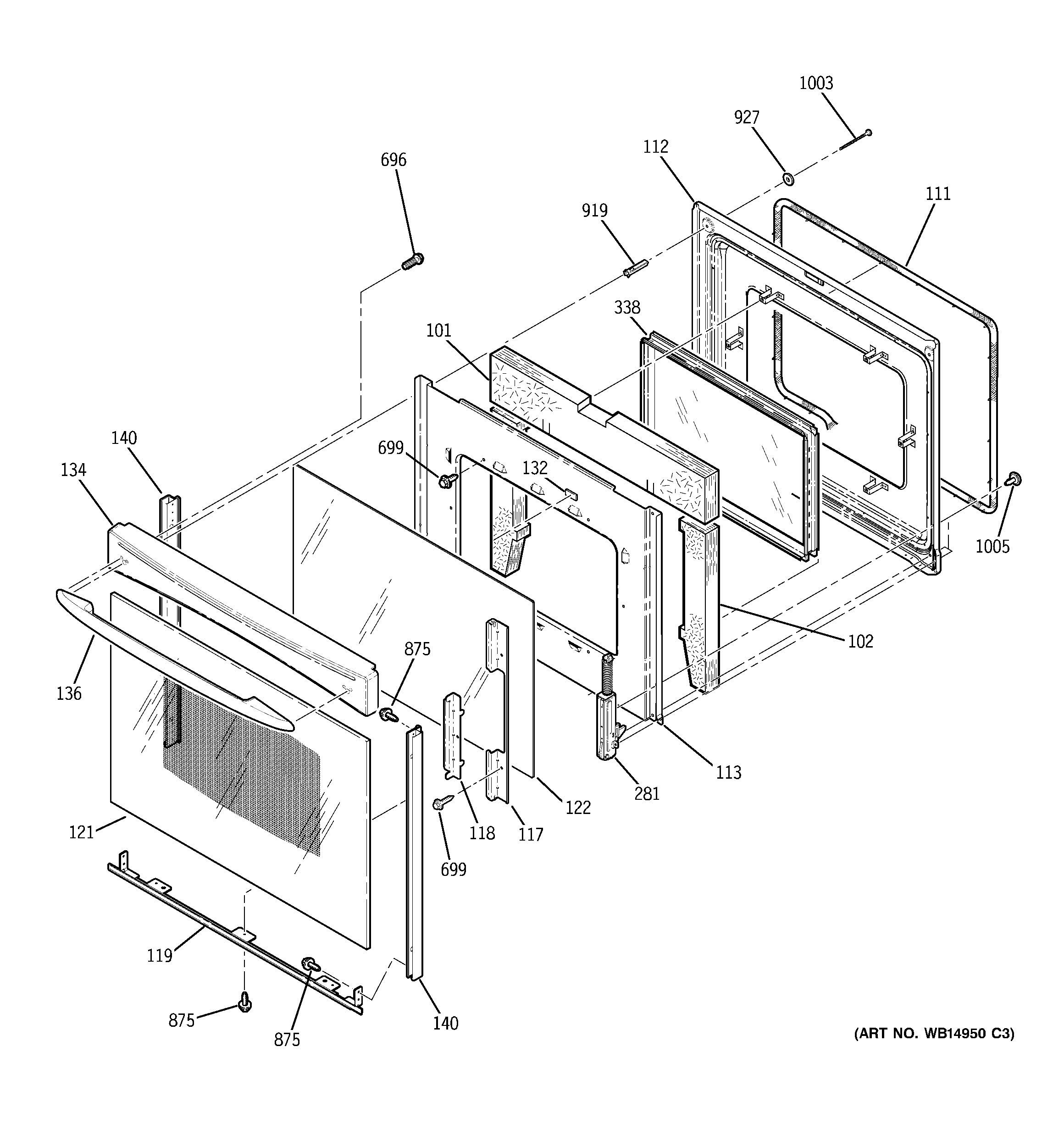

PB910TP2CC DOOR

Products

PositionProduct
101WB35T10077 GE Oven Door Insulation
102INSULATION DOOR
111GASKET OVEN
112GEN WB55T10174
113WB56T10178 GE Oven Door Insulation Retainer
117WB56T10320 GE Oven Glass Door Retainer
118WB56T10321 GE Oven Door Glass Retainer
119WB07X32931 GE Bisque Bottom Trim Channel
119WB07X42948 GE Range Bottom Trim Channel White
119WB07X42966 GE Range Bottom Trim Channel
121GEN WB56T10191
121GEN WB56T10192
121GEN WB56T10190
122WB57K5230 GE Oven Inner Glass Door
132WB01T10026 GE Oven Door Pad
134GEN WB07T10488
134GEN WB07T10489
134GEN WB07T10490
136HANDLE PRF BQ
136GEN WB15T10141
136GEN WB15T10139
140WB56T10290 GE Oven Door Side Frame (White)
140WB56T10293 GE Oven Side Door Frame
140WB56T10287 GE Oven Door Side Frame (Black)
281WB10T10067 GE Oven Door Hinge
338WB56T10105 GE Oven Inner Window Assembly
696WB1K5156 GE Oven Screw
696WB01T10103 GE Oven Screw 10-16 AB HXW .532
699WB1M1 GE Oven Screw
875WH2X930 GE Screw
919SPACER
927WB1X119D GE Oven Range Washer
1003GEN WB01T10018
1005WB01T10008 GE Oven Screw 10-32
