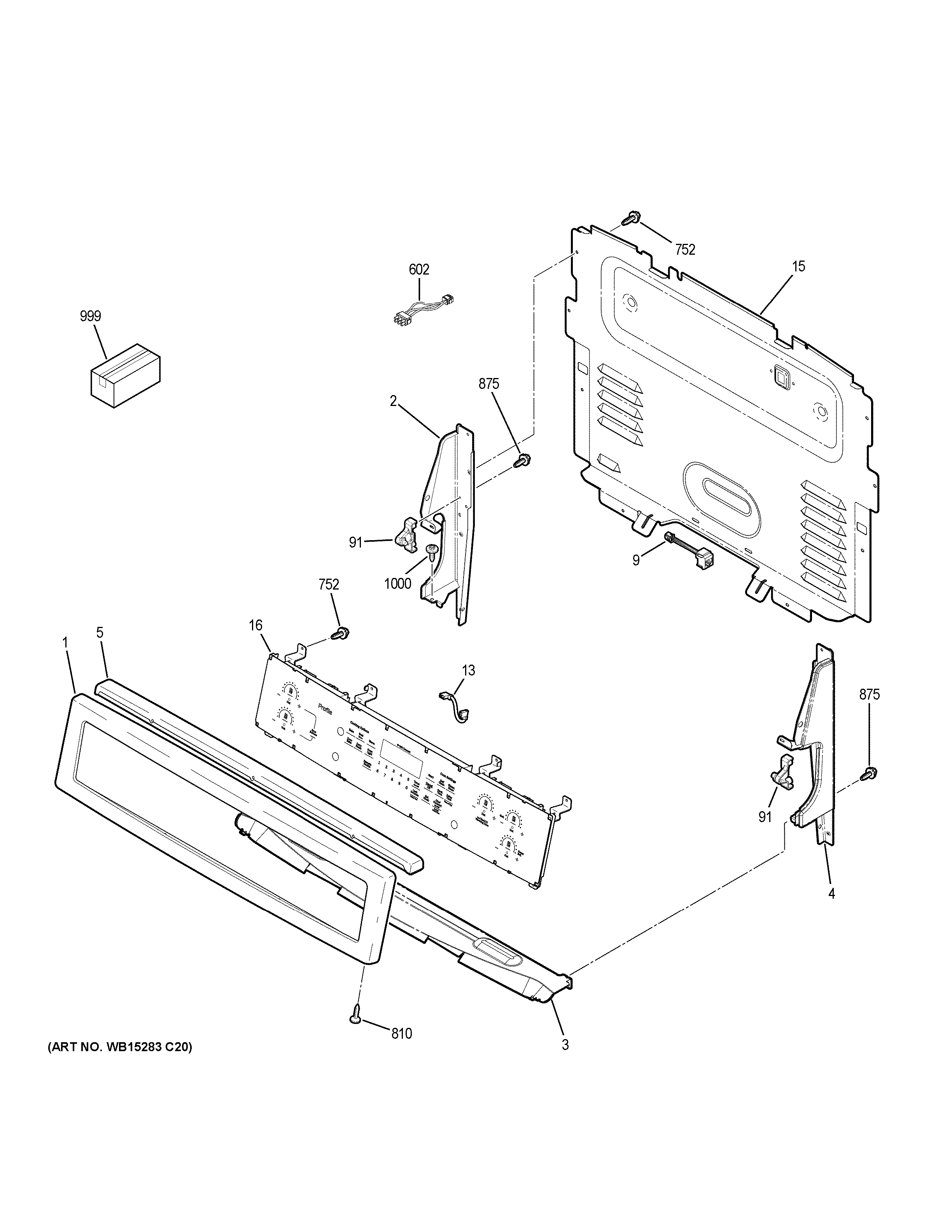

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X30076 GE Control Panel Trim Assembly |
| 2 | WB07X29534 GE Oven Left Hand End Plate |
| 3 | WB34X28565 GE Oven Heat Backguard Shield |
| 4 | WB07X29535 GE Oven Right Hand End Plate |
| 5 | WB07X28582 GE Oven Top Trim Assembly |
| 9 | WB27X30706 GE RJ45 Connector Harness |
| 13 | WB18X30704 GE Jumper |
| 15 | WB34X29576 GE Oven Back Control Panel Cover |
| 16 | WB27X33134 GE Oven Control and Overlay Assembly |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 602 | WB18X25097 GE Oven Communication Harness Wire |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 810 | WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel |
| 875 | WZ4X245D GE Screw Package |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | INSTRUCTION INSTALL |
| 999 | MANUAL U&C TIP SHEET |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | PM QUICK GUIDE |
| 1000 | WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S |
