PB911SJASS CONTROL PANEL

PB911SJASS CONTROL PANEL

Written by

in

PB911SJASS CONTROL PANEL

Products

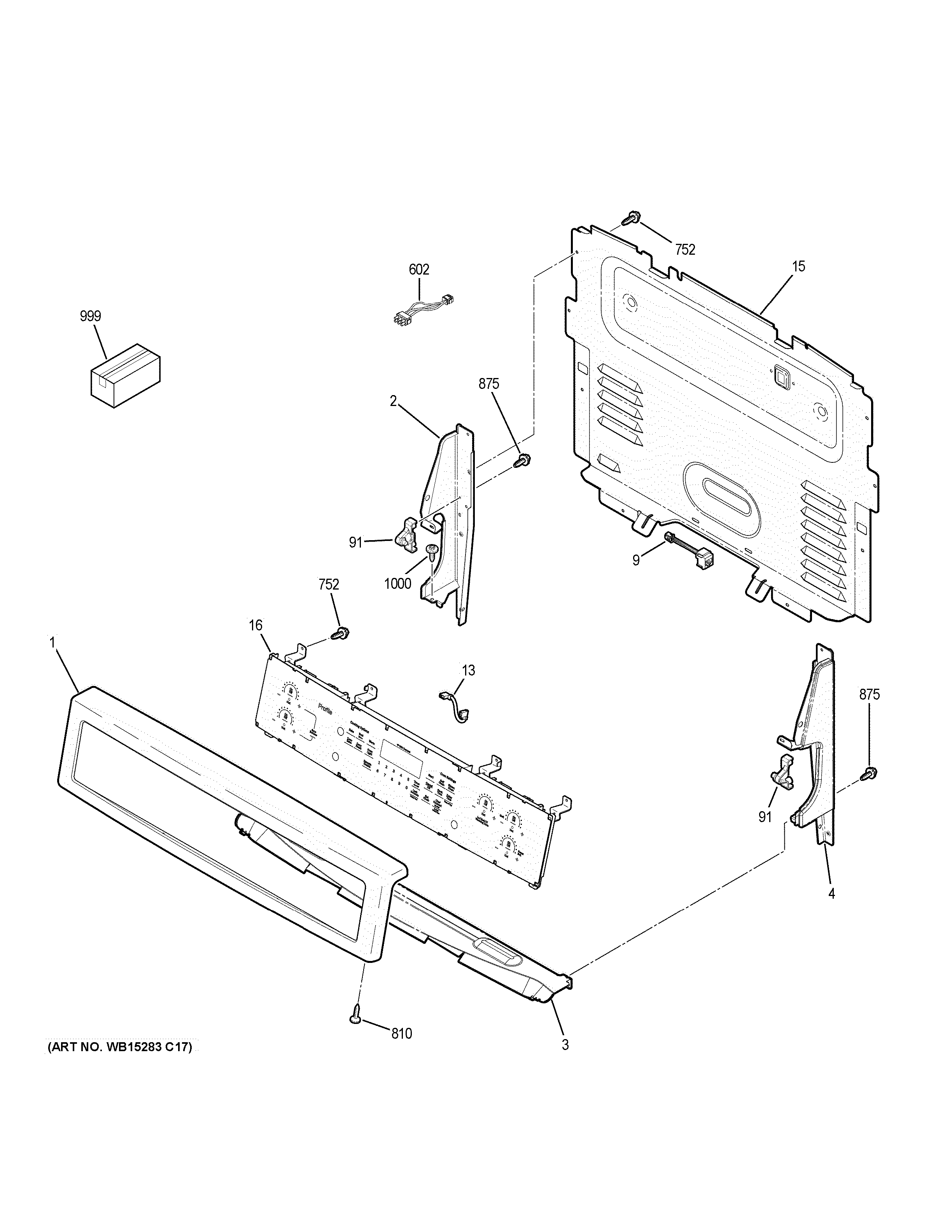

PositionProduct
1WB07X28610 GE Oven Trim Cap Assembly
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
9WB27X30706 GE RJ45 Connector Harness
13WB18X30704 GE Jumper
15WB34X29576 GE Oven Back Control Panel Cover
16WB27X33134 GE Oven Control and Overlay Assembly
91WB10T10116 GE Range Top Hinge Pin
602WB18X32668 GE Wire Communication Harness
752WB1K5200 GE Oven Screw 340531
810WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WZ4X245D GE Screw Package
999PM QUICK GUIDE
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999MANUAL U&C TIP SHEET
999PM INSTRUCTIONS INSTALL
999PM MANUAL MINI & WD ASM
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
