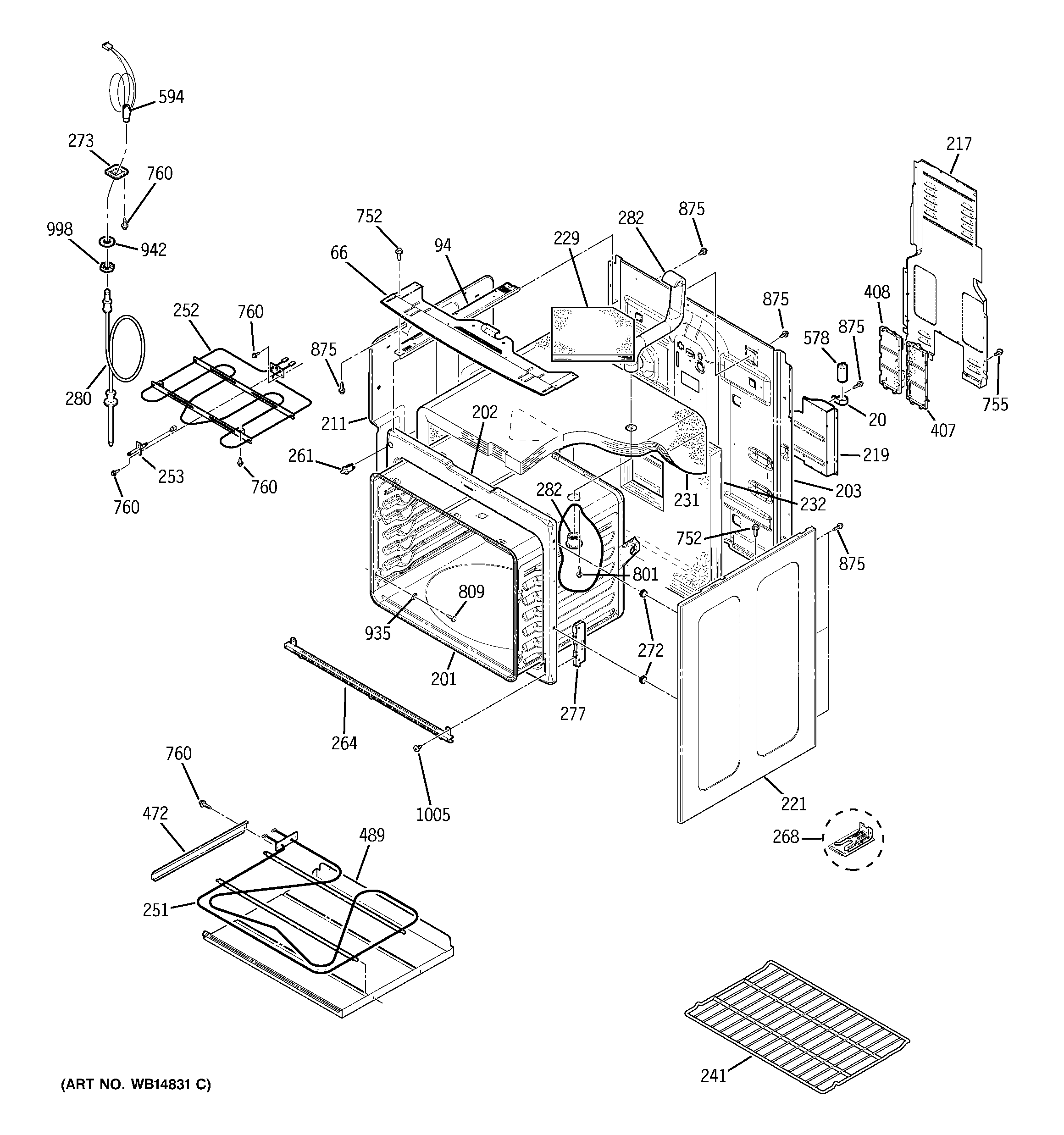

PB920SP1SS BODY PARTS

PB920SP1SS BODY PARTS

Written by

in

PB920SP1SS BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66GEN WB34T10083
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
201GEN WB63T10145
202GEN WB63T10096
203BACK MAIN (P014)
211GEN WB02T10275
217GEN WB02T10478
219GEN WB02T10493
221WB56X28881 GE Oven Side Panel Black
229GEN WB35T10210
229WB35T10017 GE Oven Vent Tube Insulation
231WB35T10209 GE Oven Insulation
232GEN WB35T10023
241WB48T10082 GE Oven Rack
251WB44X45499 GE Oven Bake Element
252WB44T10094 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
261WB24T10147 GE Oven SPDT Light Switch
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
273PROBE COVER
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB28T10217 GE Radiant Vent Tube
282WB38X33648 GE Vent Tube
407WB27T11085 GE Oven Frame Assembly
408RELAY BOARD ASM
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
594WB18T10394 GE Oven Wire Probe Harness
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
935WB01T10112 GE Washer Aluminum
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
