PB920TP5WW WARMING DRAWER

PB920TP5WW WARMING DRAWER

Written by

in

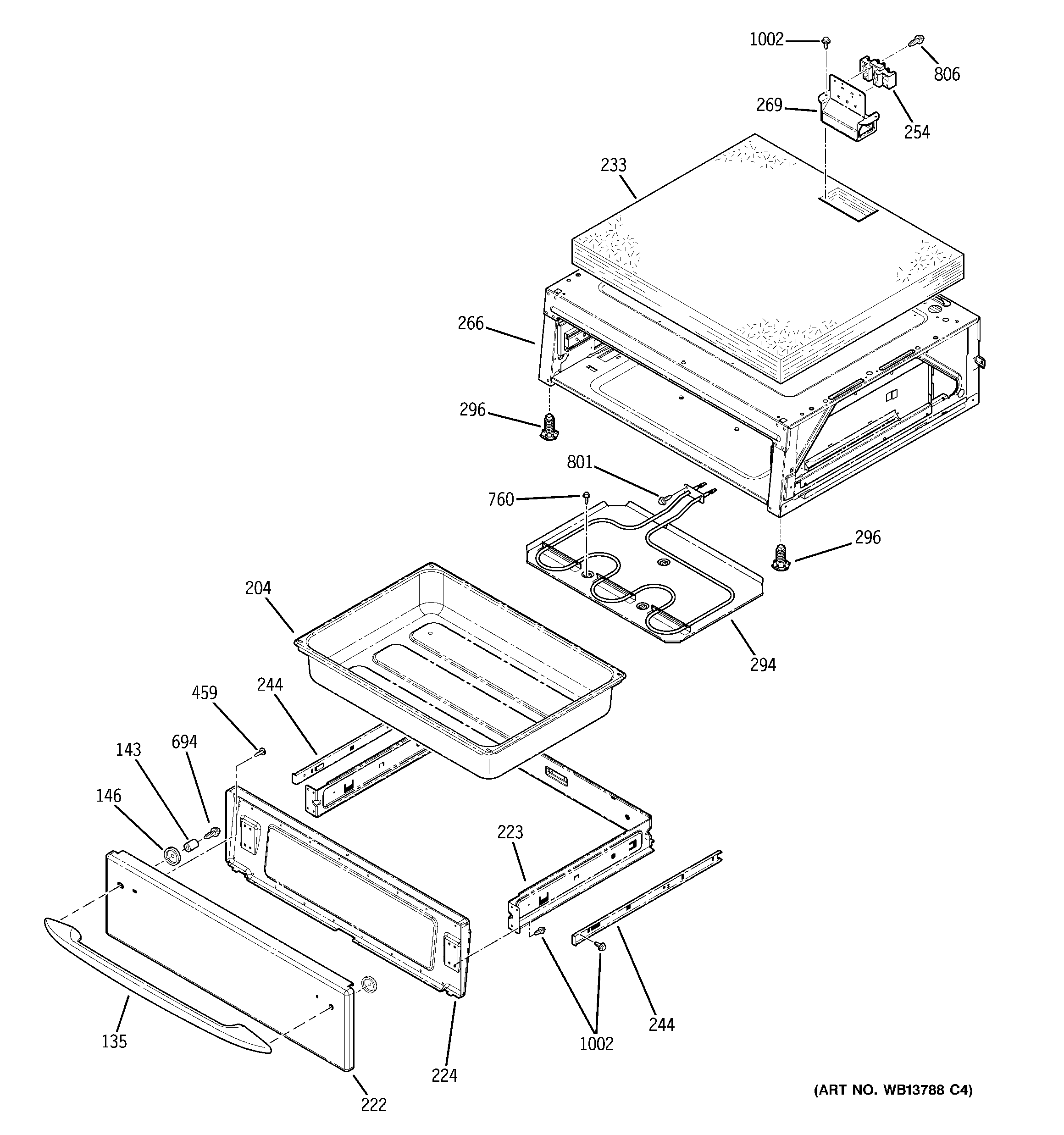

PB920TP5WW WARMING DRAWER

Products

PositionProduct
135WB15T10136 GE Oven Drawer Handle
135GEN WB15T10138
143SPACER DR HANDLE
146WB1K5117 GE Oven Washer
204GEN WB49T10011
222GEN WB56T10174
222GEN WB56T10173
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224GEN WB56T10180
233GEN WB35T10254
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266WB63X25155 GE Cavity Warming Drawer Assembly
269WB17T10020 GE Oven Terminal Block Mount
294WB30T10144 GE Oven Heating Element (WARM)
296WB02X10521 GE Oven Leveling Leg
459WB1X537 GE Oven Screw
694WB1K5157 GE Oven Black Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806WB1X1118 GE Oven Screw 6-32T
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
