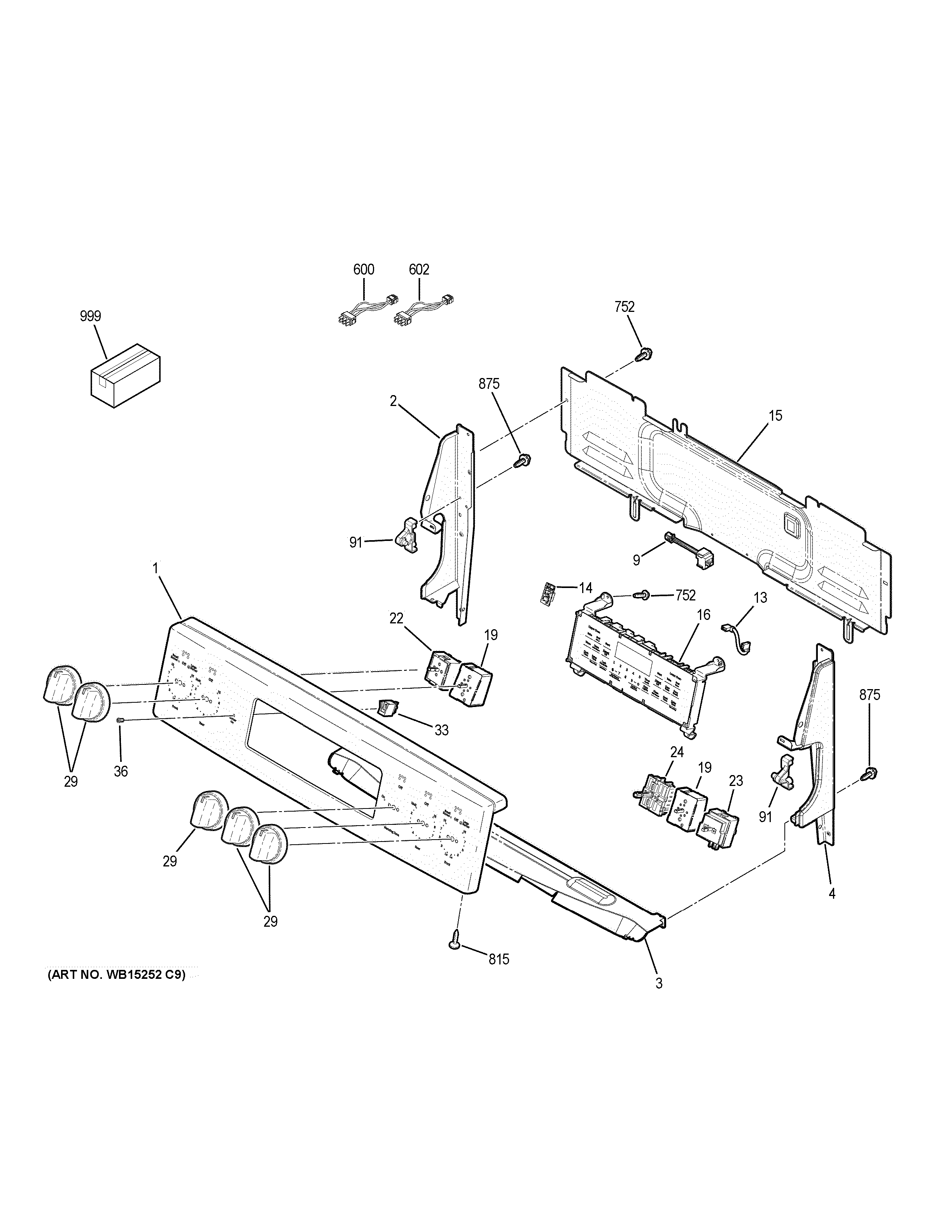

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X28606 GE Trim and Cap Assembly |
| 2 | WB07X24963 GE Range Left End Plate Gray |
| 3 | WB34X25151 GE Oven Heat Back Shield Guard |
| 4 | WB07X24964 GE Range Right End Plate Gray |
| 9 | WB27X25015 GE Oven RJ45 Assembly |
| 13 | WB18X30704 GE Jumper |
| 14 | WB27X31514 GE Oven WiFi Module Kit |
| 15 | WB34X25565 GE Oven Control Cover |
| 16 | OVEN CONTROL W/ OVERLAY |
| 19 | WB24T10029 GE Oven Infinite Burner Switch |
| 22 | WB24T10146 GE Oven Surface Element Control |
| 23 | WB24X25152 GE Oven Infinite Switch Control |
| 24 | WB24X25013 GE Oven Control Infinite Switch |
| 29 | WB03X34871 GE Oven Stainless Infinite Knob |
| 33 | WB25X20005 GE Oven Light Indicator Pilot |
| 36 | WB25X24023 GE Oven Indicator Light Lens |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 600 | HARNESS WIRE INFINITE |
| 602 | WB18X25003 GE Wire Harness CAT Module |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 815 | WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel |
| 875 | WH2X930 GE Screw |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | PM QUICK GUIDE |
| 999 | MANUAL U&C TIP SHEET |
| 999 | PM WI FI INSTRUCTIONS |
