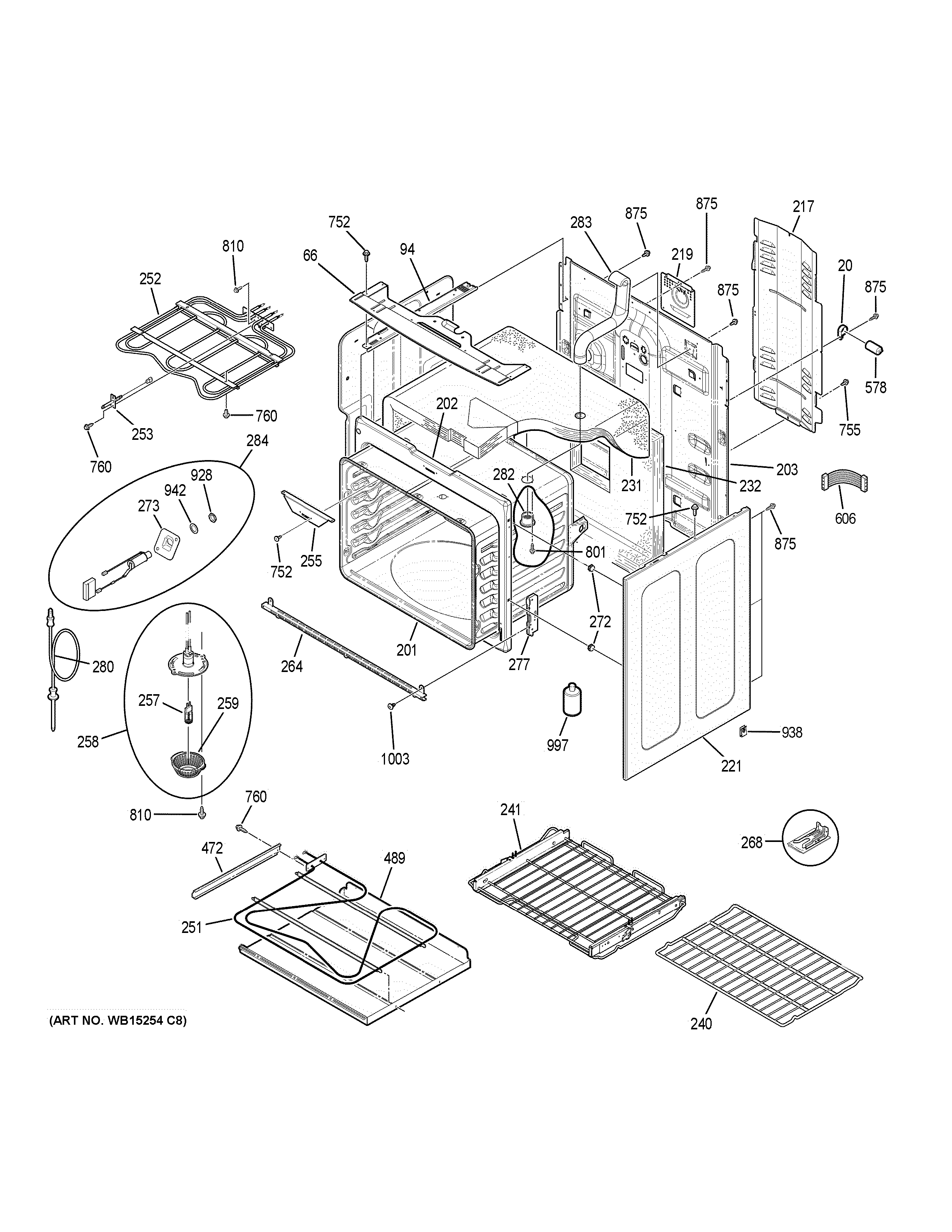

PB930SJ2SS BODY PARTS

PB930SJ2SS BODY PARTS

Written by

in

PB930SJ2SS BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66WB34X30165 GE Range Top Enclosure
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
201WB63X20923 GE Oven Body Weld Assembly
202WB63X20870 GE Front Frame 5.0
203BACK MAIN
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221SIDE PANEL ASM
231WB35T10211 GE Oven Insulation
232WB35X21424 GE Oven Insulation Back and Bottom
240WB48T10082 GE Oven Rack
241WB48X20881 GE Oven Rack Slide Assembly
251WB44X45499 GE Oven Bake Element
252WB44X45498 GE Broiler Assembly Unit
253WB21X22134 GE Oven Sensor Assembly
255WB07X21459 GE Latch Trim
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X24909 GE Oven Halogen Lamp Assembly
259OV LAMP LENS LWR
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
277WB10T10068 GE Oven Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
283WB28T10217 GE Radiant Vent Tube
284WB18X25985 GE Meat Probe with Harness Receiver
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
606WB18X25980 GE Oven Harness Wire
606HARNESS WIRE SENSOR
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
928WB1X5572 GE Oven Nut
938WB1K5209 GE Oven Clip
942WB1X5573 GE Oven Washer
997WB02T10303 GE Cleaner Lubricant
1003WB01T10008 GE Oven Screw 10-32
