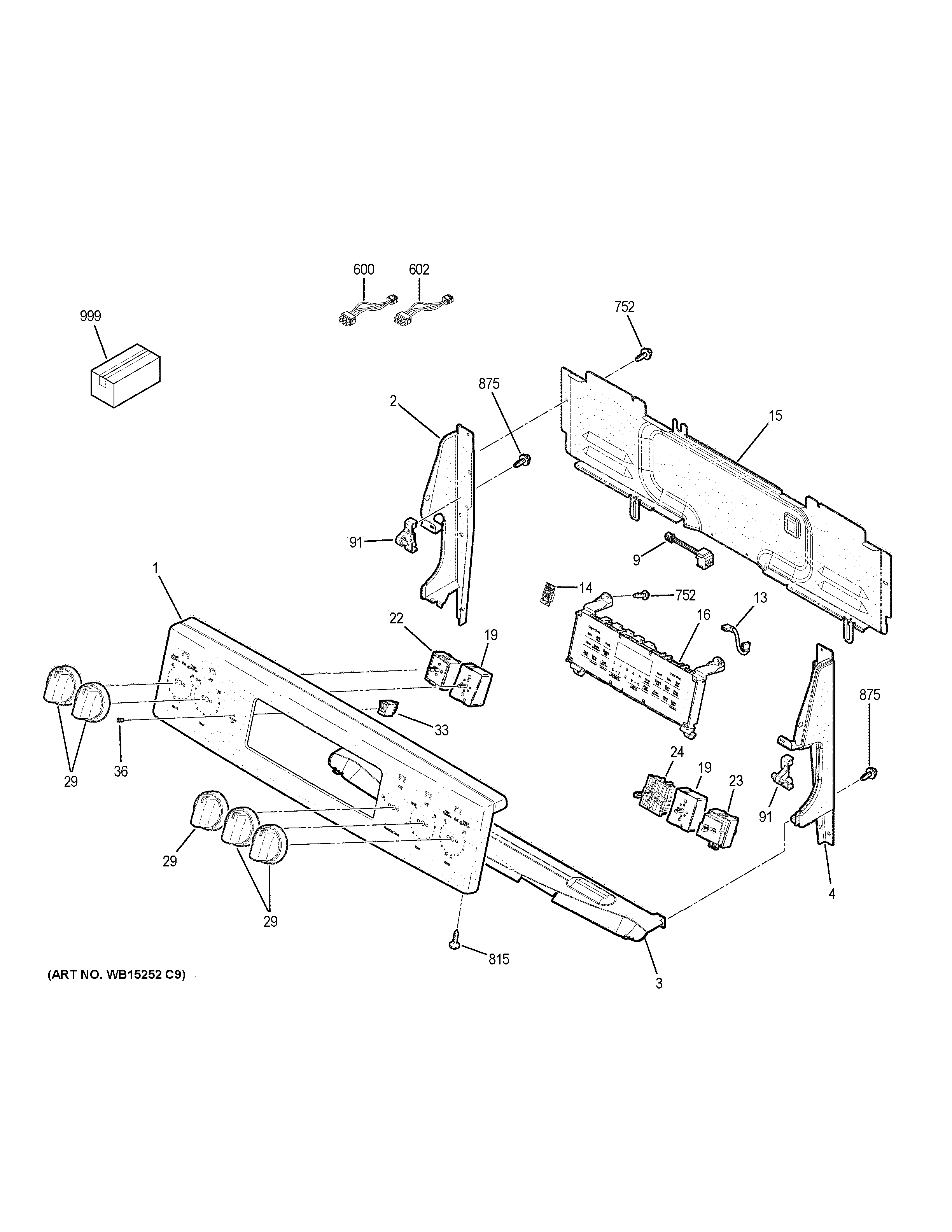

PB930SJ2SS CONTROL PANEL

Products

Position	Product
1	WB07X28606 GE Trim and Cap Assembly
1	LABEL WIRE DIAGRAM
2	WB07X24963 GE Range Left End Plate Gray
3	WB34X25151 GE Oven Heat Back Shield Guard
4	WB07X24964 GE Range Right End Plate Gray
9	WB27X25015 GE Oven RJ45 Assembly
13	WB18X30704 GE Jumper
14	WB27X31514 GE Oven WiFi Module Kit
15	WB34X25565 GE Oven Control Cover
16	OVEN CONTROL W/ OVERLAY
19	WB24T10029 GE Oven Infinite Burner Switch
22	WB24T10146 GE Oven Surface Element Control
23	WB24X25152 GE Oven Infinite Switch Control
24	WB24X25013 GE Oven Control Infinite Switch
29	WB03X34871 GE Oven Stainless Infinite Knob
33	WB25X20005 GE Oven Light Indicator Pilot
36	WB25X24023 GE Oven Indicator Light Lens
91	WB10T10116 GE Range Top Hinge Pin
600	HARNESS WIRE INFINITE
602	WB18X25003 GE Wire Harness CAT Module
752	WB1K5200 GE Oven Screw 340531
815	WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875	WH2X930 GE Screw
999	PM QUICK GUIDE
999	PM WI FI INSTRUCTIONS
999	MANUAL U&C TIP SHEET
999	PM INSTRUCTIONS INSTALL
999	PM INSTALL INSTRUCTIONS
999	PM MANUAL MINI & WD ASM
