PB930SJ2SS WARMING DRAWER

PB930SJ2SS WARMING DRAWER

Written by

in

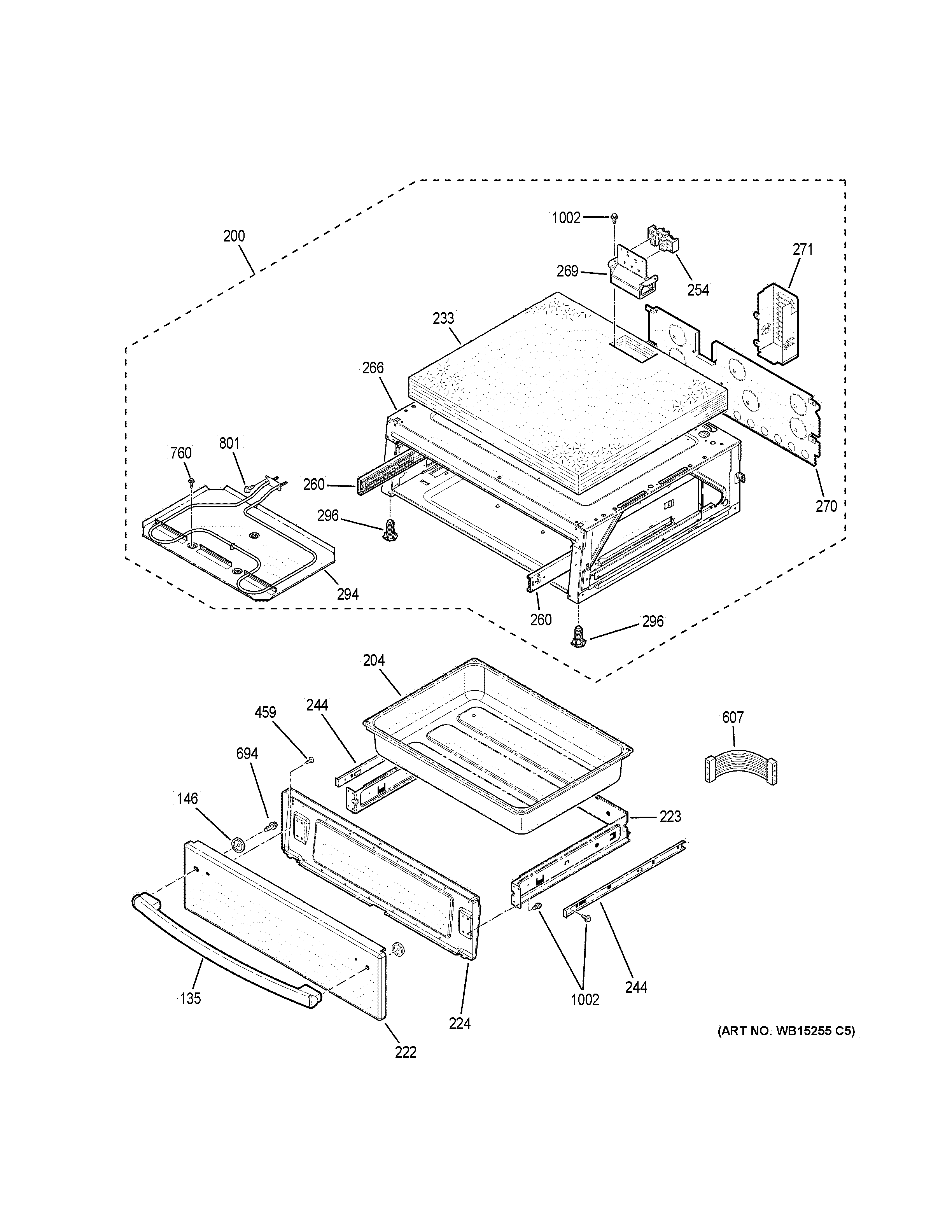

PB930SJ2SS WARMING DRAWER

Products

PositionProduct
135WB15X27140 GE Oven Handle and End Cap Assembly
146WB1K5117 GE Oven Washer
200WB63X25155 GE Cavity Warming Drawer Assembly
204WB49T10076 GE Oven Drawer Pan
222PANEL DRAWER SS
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224WB56T10331 GE Drawer Front Inner
233GEN WB35T10254
244SLIDE INTERNAL ASM
254WB17T10011 GE Oven Terminal Block
260WB39K10021 GE Oven Left Drawer Slide Assembly
260WB39K10020 GE Oven Right Drawer Slide Assembly
266WB63X28540 GE Base Assembly Rivet
269WB17T10020 GE Oven Terminal Block Mount
270GEN WB34T10107
271GEN WB34T10108
294WB30T10144 GE Oven Heating Element (WARM)
296WB02X10521 GE Oven Leveling Leg
459WB1X537 GE Oven Screw
607HARNESS WIRE DRW WARMER
694WB1X1258 GE Oven Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
