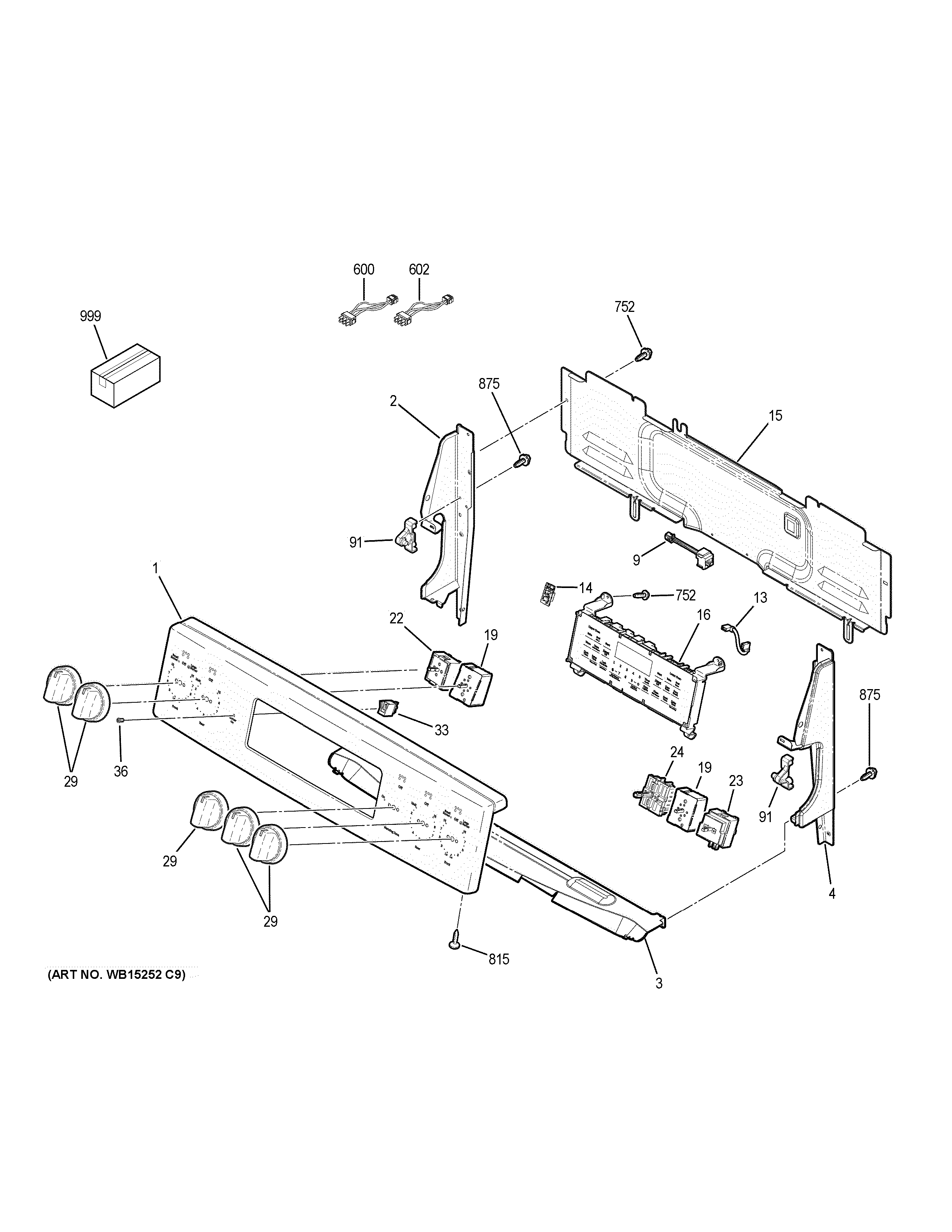

PB930SJ4SS CONTROL PANEL

Products

PositionProduct
1WB07X28606 GE Trim and Cap Assembly
1LABEL WIRE DIAGRAM
2WB15X27140 GE Oven Handle and End Cap Assembly
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
9WB27X25015 GE Oven RJ45 Assembly
13WB18X30704 GE Jumper
14WB27X33353 GE Wi-Fi Module Kit
15WB34X25565 GE Oven Control Cover
16OVEN CONTROL W/ OVERLAY
16OVEN CONTROL AND OVERLAY ASM WHITE LED
19WB24T10029 GE Oven Infinite Burner Switch
22WB24T10146 GE Oven Surface Element Control
23WB24X25152 GE Oven Infinite Switch Control
24WB24X25013 GE Oven Control Infinite Switch
29WB03X34871 GE Oven Stainless Infinite Knob
33WB25X20005 GE Oven Light Indicator Pilot
36WB25T10103 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
600HARNESS WIRE INFINITE
602WB18X25003 GE Wire Harness CAT Module
752WB1K5200 GE Oven Screw 340531
815WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WH2X930 GE Screw
999PM QUICK GUIDE
999PM WI FI INSTRUCTIONS
999MANUAL U&C TIP SHEET
999PM INSTRUCTIONS INSTALL
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
