PB930SL1SS CONTROL PANEL

PB930SL1SS CONTROL PANEL

Written by

in

PB930SL1SS CONTROL PANEL

Products

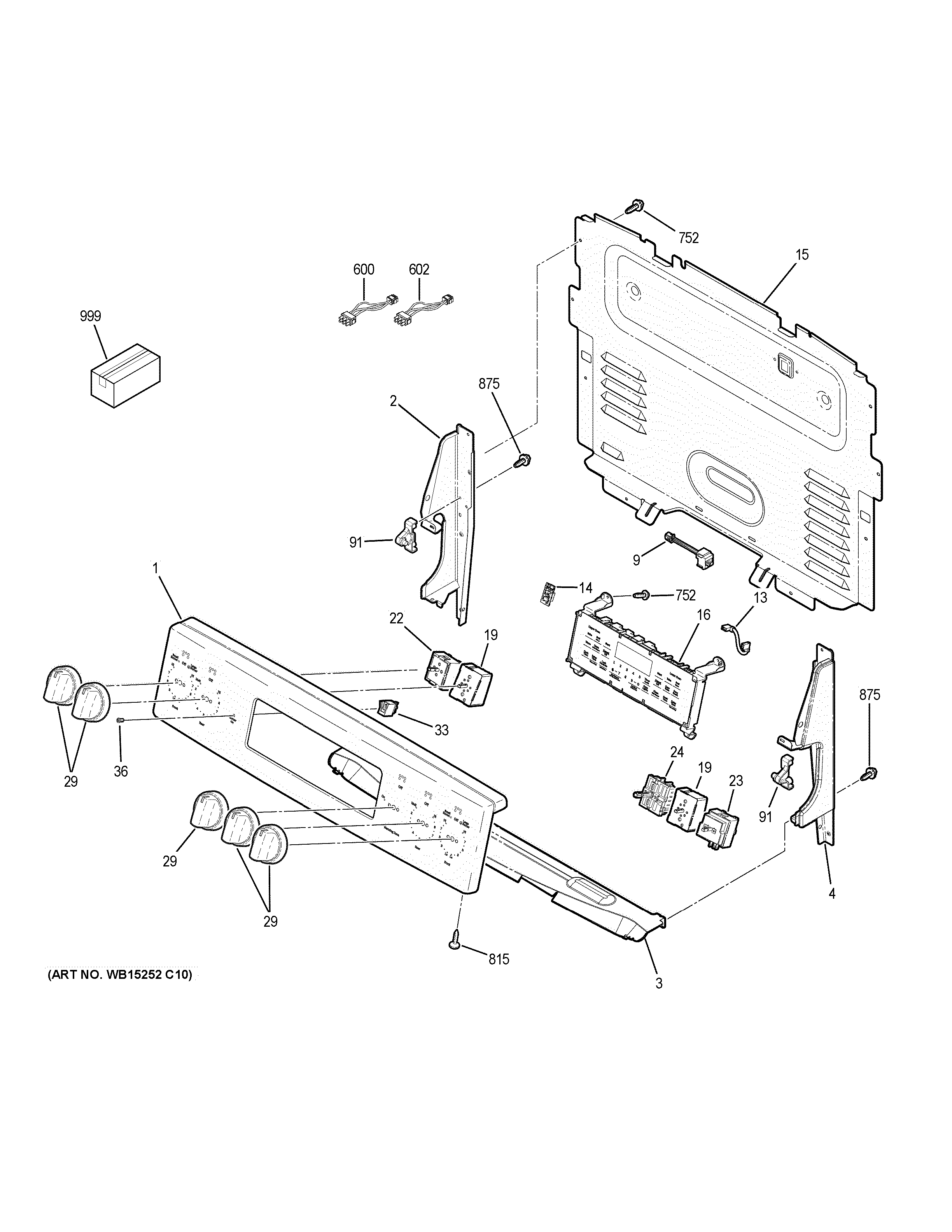

PositionProduct
1WB07X28606 GE Trim and Cap Assembly
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
9WB27X25015 GE Oven RJ45 Assembly
13WB18X30704 GE Jumper
14WB27X33353 GE Wi-Fi Module Kit
15WB34X29576 GE Oven Back Control Panel Cover
16WB27X33129 GE Oven Control and Overlay Assembly
19WB24T10029 GE Oven Infinite Burner Switch
22WB24T10146 GE Oven Surface Element Control
23WB24X25152 GE Oven Infinite Switch Control
24WB24X25013 GE Oven Control Infinite Switch
29WB03X34871 GE Oven Stainless Infinite Knob
33WB25X20005 GE Oven Light Indicator Pilot
36WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
600INFINITE HARNESS WIRE
602WB18X25003 GE Wire Harness CAT Module
752WB1K5200 GE Oven Screw 340531
815WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WH2X930 GE Screw
999PM QUICK GUIDE
999PM WI FI INSTRUCTIONS
999PM INSTRUCTIONS INSTALL
999MANUAL U&C TIP SHEET
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
