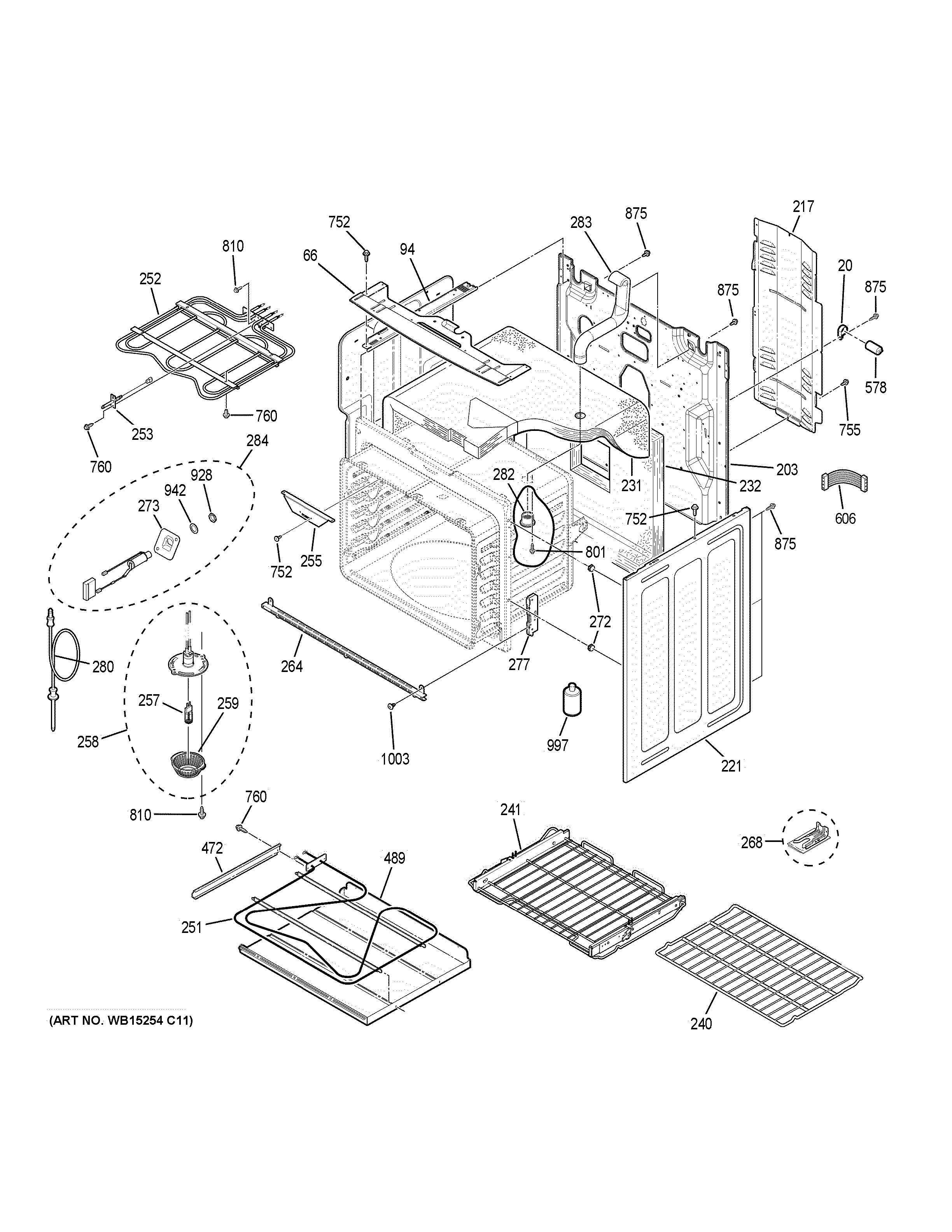

PB930SL2SS BODY PARTS

PB930SL2SS BODY PARTS

Written by

in

PB930SL2SS BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66WB34X30165 GE Range Top Enclosure
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
203MAIN BACK COVER
217WB34X29563 GE Oven Wire Cover
221WB63X28679 GE Oven Side Panel
231WB35X29572 GE Oven Cavity Insulation
232WB35X29571 GE Oven Back Insulation
240WB48T10082 GE Oven Rack
241WB48X20881 GE Oven Rack Slide Assembly
251WB44X45499 GE Oven Bake Element
252WB44X45498 GE Broiler Assembly Unit
253WB21X22134 GE Oven Sensor Assembly
255WB07X21459 GE Latch Trim
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X24909 GE Oven Halogen Lamp Assembly
259OV LAMP LENS LWR
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
272WB02T10034 GE Oven Body Side Support
273GEN WB02X8309
277WB10X29566 GE Hinge Receiver
280WB20T10024 GE Oven Thermistor Probe
282WB38X33648 GE Vent Tube
283WB34X29573 GE Vent Tube
284WB18X25985 GE Meat Probe with Harness Receiver
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
606WB18X32661 GE Hidden Bake Harness
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
801WB01M10002 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
928WB1X5572 GE Oven Nut
942WB1X5573 GE Oven Washer
997WB02T10303 GE Cleaner Lubricant
1003WB01T10008 GE Oven Screw 10-32
