PB930TF1WW WARMING DRAWER

PB930TF1WW WARMING DRAWER

Written by

in

PB930TF1WW WARMING DRAWER

Products

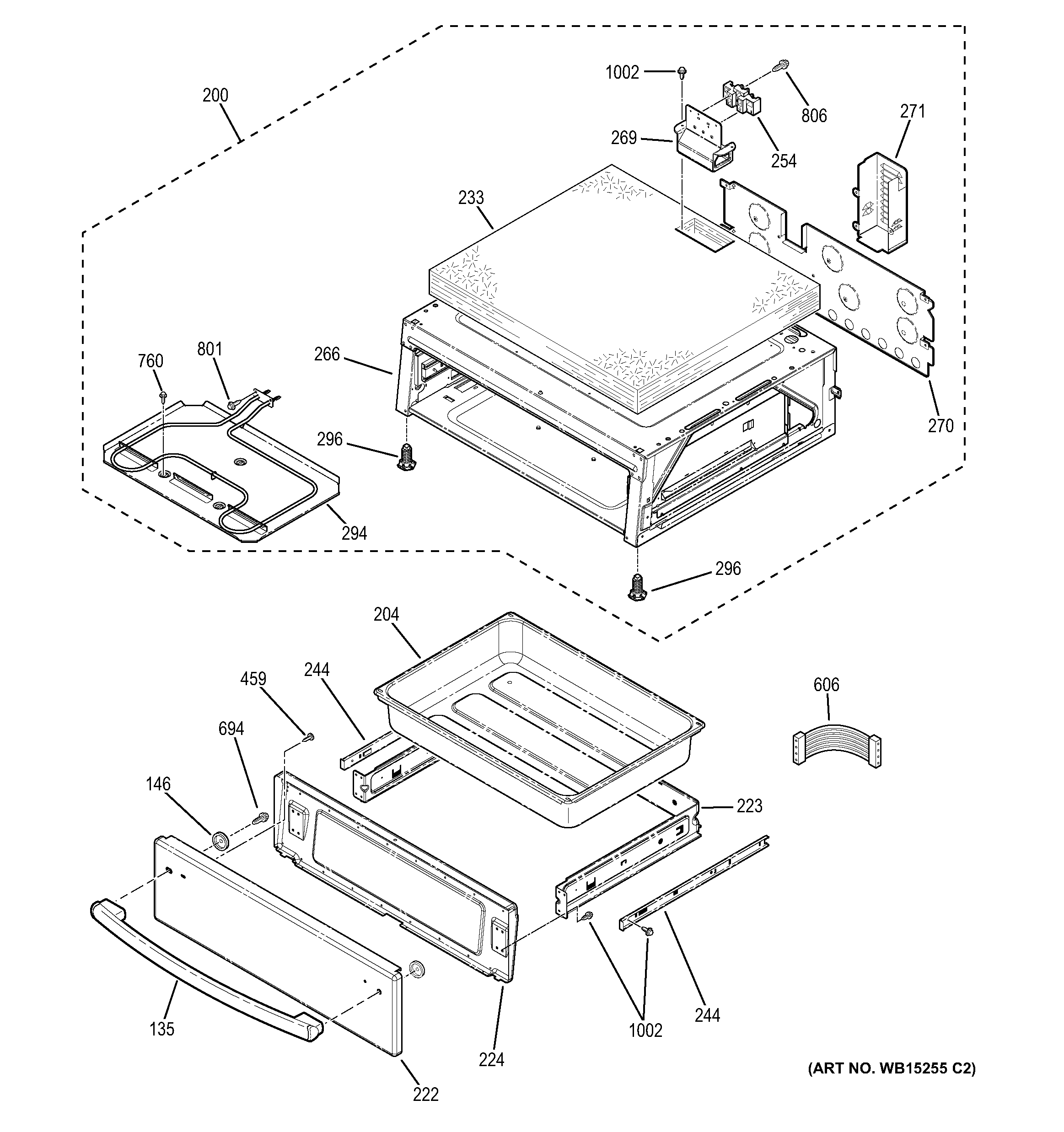

PositionProduct
135WB15T10207 GE Oven Handle White
146SPACER DR HANDLE
200WB63X25155 GE Cavity Warming Drawer Assembly
204WB49T10076 GE Oven Drawer Pan
222PANEL DRAWER (WH)
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224WB56T10331 GE Drawer Front Inner
233GEN WB35T10254
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266WB63X28540 GE Base Assembly Rivet
269WB17T10020 GE Oven Terminal Block Mount
270GEN WB34T10107
271GEN WB34T10108
294WB30T10144 GE Oven Heating Element (WARM)
296WB02X10521 GE Oven Leveling Leg
459WB1X537 GE Oven Screw
606HARNESS WIRE WARMING DRW
694WB1K5157 GE Oven Black Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806WZ4X245D GE Screw Package
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
