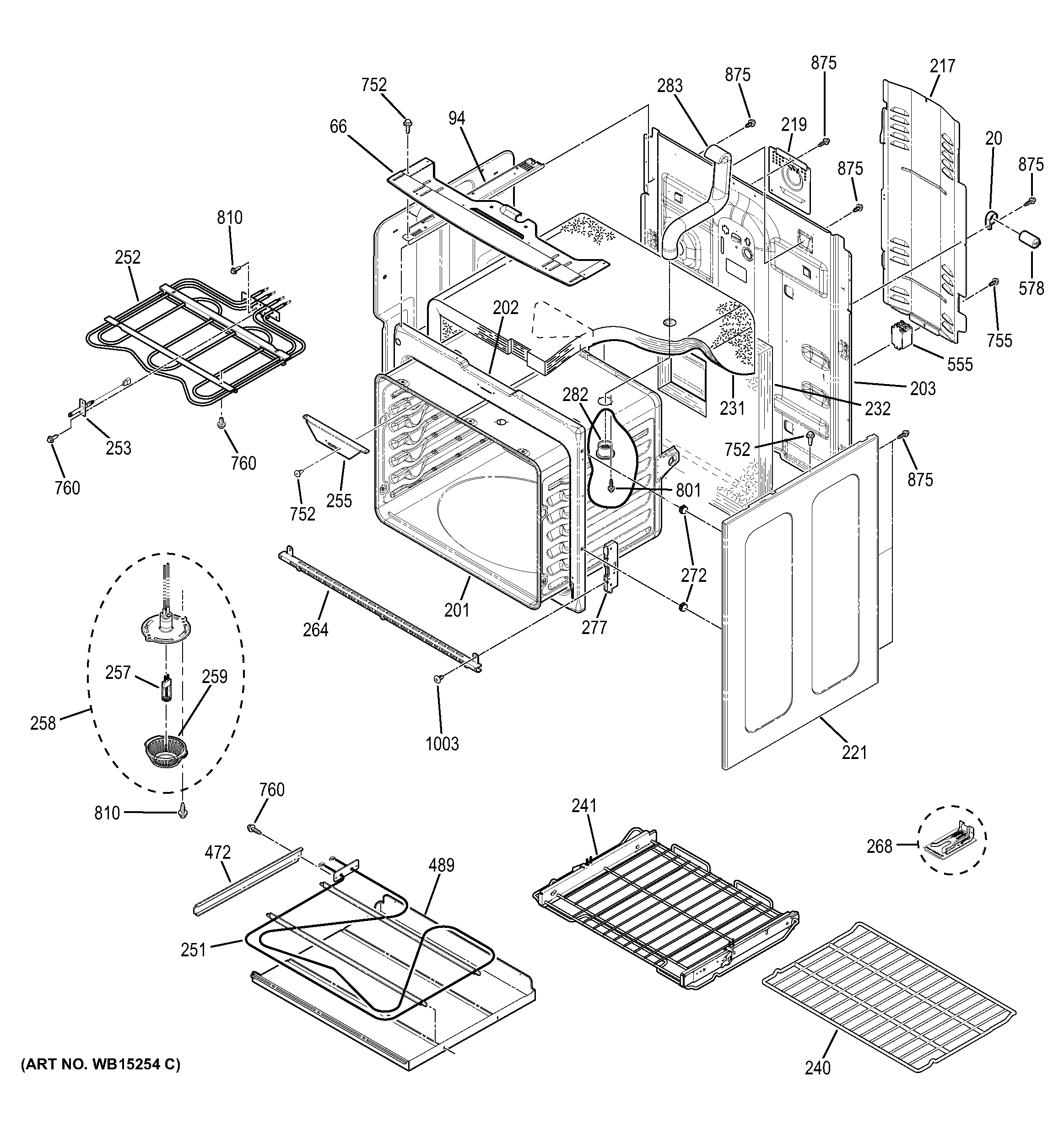

PB930TF2WW BODY PARTS

PB930TF2WW BODY PARTS

Written by

in

PB930TF2WW BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66WB34T10125 GE Enclosure Raptor
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
201WB63X20923 GE Oven Body Weld Assembly
202WB63X20870 GE Front Frame 5.0
203BACK MAIN
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28884 GE Oven White Side Panel
231GEN WB35X21443
232WB35X21424 GE Oven Insulation Back and Bottom
240WB48T10082 GE Oven Rack
241WB48X20881 GE Oven Rack Slide Assembly
251WB44X45499 GE Oven Bake Element
252WB44X20882 GE Oven Broil Shield Assembly
253WB21X22134 GE Oven Sensor Assembly
255WB07X21459 GE Latch Trim
257WB08T10045 GE Oven G9 Halogen Lamp
258GEN WB25T10097
259OV LAMP LENS LWR
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
272WB02T10034 GE Oven Body Side Support
277WB10T10068 GE Oven Hinge Receiver
282WB38X33648 GE Vent Tube
283WB28T10217 GE Radiant Vent Tube
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
555WB18T10352 GE Oven Relay
578WB27T10662 GE Oven Capacitor
752WB1K5200 GE Oven Screw 340531
755WZ4X44D GE Screw Package
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
810WB01T10072 GE Screw 8-32 1HW .312 Nickel
875WH2X930 GE Screw
