PB935BP3TS CONTROL PANEL

PB935BP3TS CONTROL PANEL

Written by

in

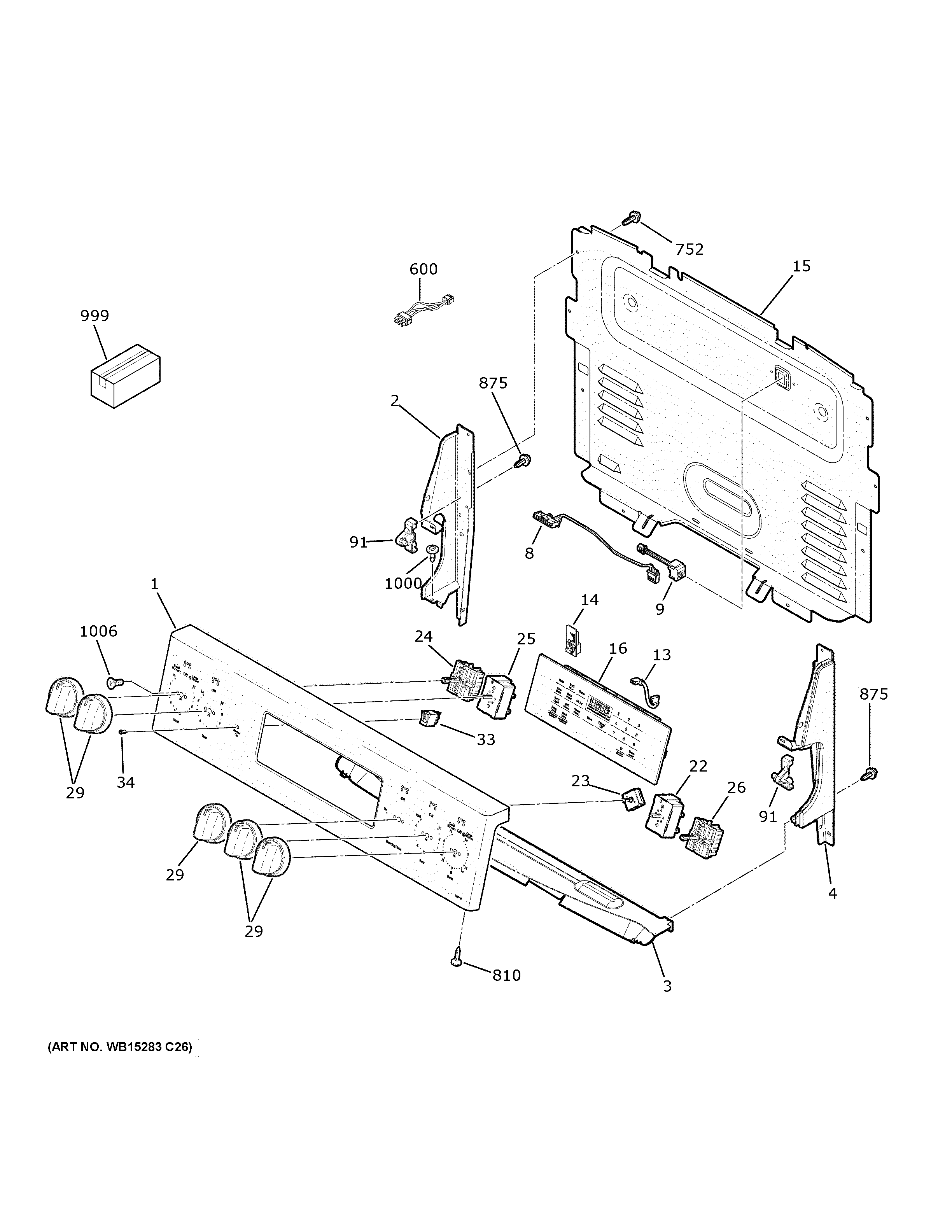

PB935BP3TS CONTROL PANEL

Products

PositionProduct
1BLACK STAINLESS CONTROL PANEL TRIM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
8WB18X38827 GE WiFi RJ45 Harness
9WB18X38667 GE RJ45 Internal Connection Harness
13WB18X30704 GE Jumper
14WH22X29461 GE A3 WiFi Board
15WB34X41219 GE Control Cover
16GLASS CNTL & BOARD
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X40051 GE Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
25WB24T10146 GE Oven Surface Element Control
26WB24X25152 GE Oven Infinite Switch Control
29WB03X29165 GE Oven Knob Assembly
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
600WB18X39986 GE Temperature Sensor Harness Wir
752WB1K5200 GE Oven Screw 340531
810WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WZ4X245D GE Screw Package
999PM QUICK OWNERS MANUAL
999PM OWNERS AND INSTALL
999PM INSTALL INSTRUCTIONS
999INSTRUCTION INSTALL
999MANUAL U&C TIP SHEET
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
