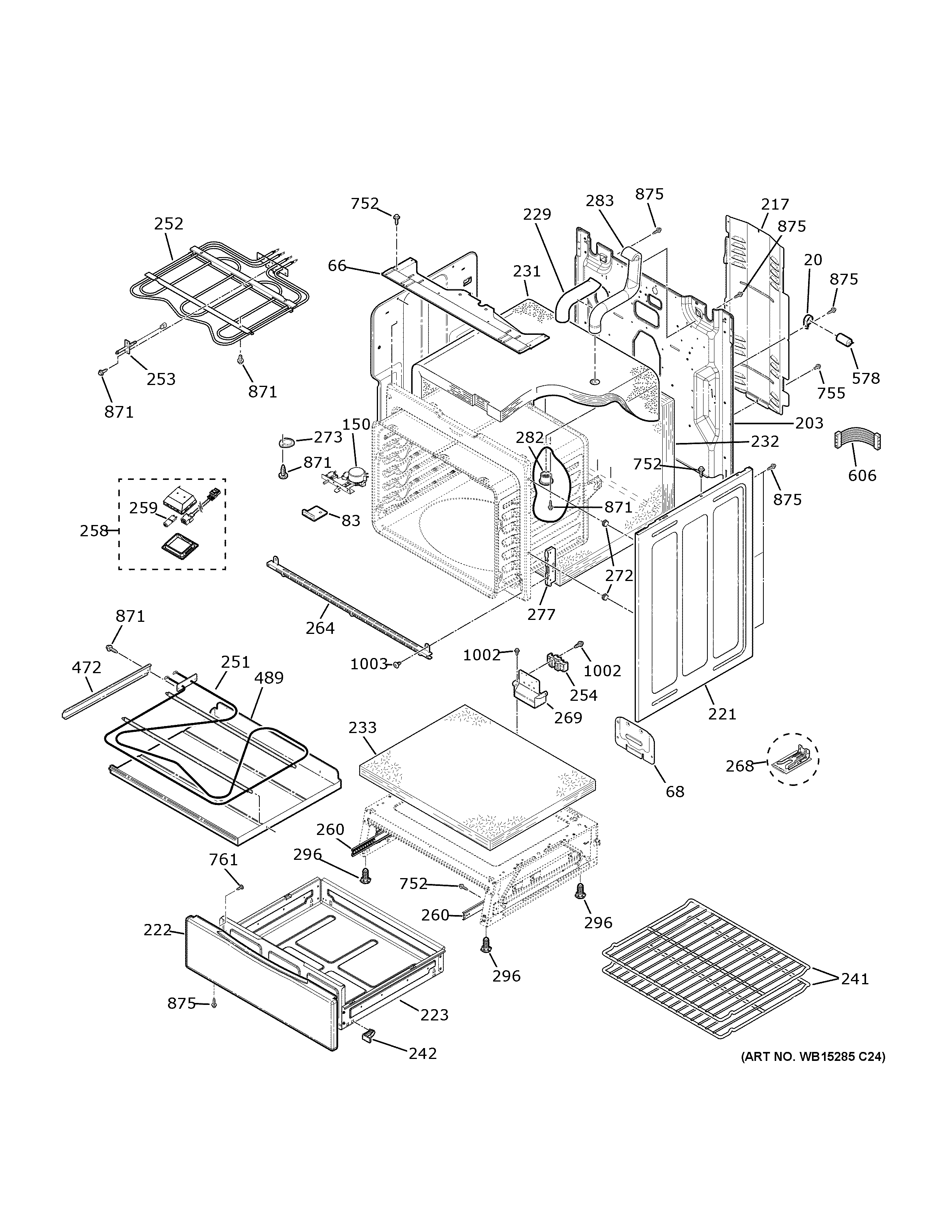

PB935YP4FS BODY PARTS

PB935YP4FS BODY PARTS

Written by

in

PB935YP4FS BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66WB34X30165 GE Range Top Enclosure
68PLATE COVER (BK)
83WB02T10118 GE Oven Clip Seam
150WB10X25007 GE Oven Latch Assembly
203WB34X32059 GE Back Cover Main
217WB34X29563 GE Oven Wire Cover
221WB63X28679 GE Oven Side Panel
222STAINLESS PANEL DRAWER
223DRAWER AND SLIDE ASM
229WB35T10017 GE Oven Vent Tube Insulation
231WB35X29572 GE Oven Cavity Insulation
232WB35X29571 GE Oven Back Insulation
233WB35X29075 GE Oven Bottom Insulation
241WB48T10063 GE Oven Rack
242WB02X29072 GE Oven Drawer Wedge
251WB44X45499 GE Oven Bake Element
252WB44X45491 GE Broil Element
253WB21X22134 GE Oven Sensor Assembly
254WB17X38438 GE Terminal Block Assembly
258WB25X42688 GE Halogen Lamp Assembly
259WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
260DRAWER GUIDE AND BRACKET
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB34X29565 GE Oven Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277WB10X29566 GE Hinge Receiver
282WB38X33648 GE Vent Tube
283WB34X29573 GE Vent Tube
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
606WB18X32661 GE Hidden Bake Harness
752WB1K5200 GE Oven Screw 340531
755WB1X1261 GE Oven Screw
761WB1X5904 GE Oven Screw 8-18 BA
871WB01M10002 GE Oven Screw
875WZ4X245D GE Screw Package
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1003WB01T10008 GE Oven Screw 10-32
