PB960SJ5SS UPPER OVEN

PB960SJ5SS UPPER OVEN

Written by

in

PB960SJ5SS UPPER OVEN

Products

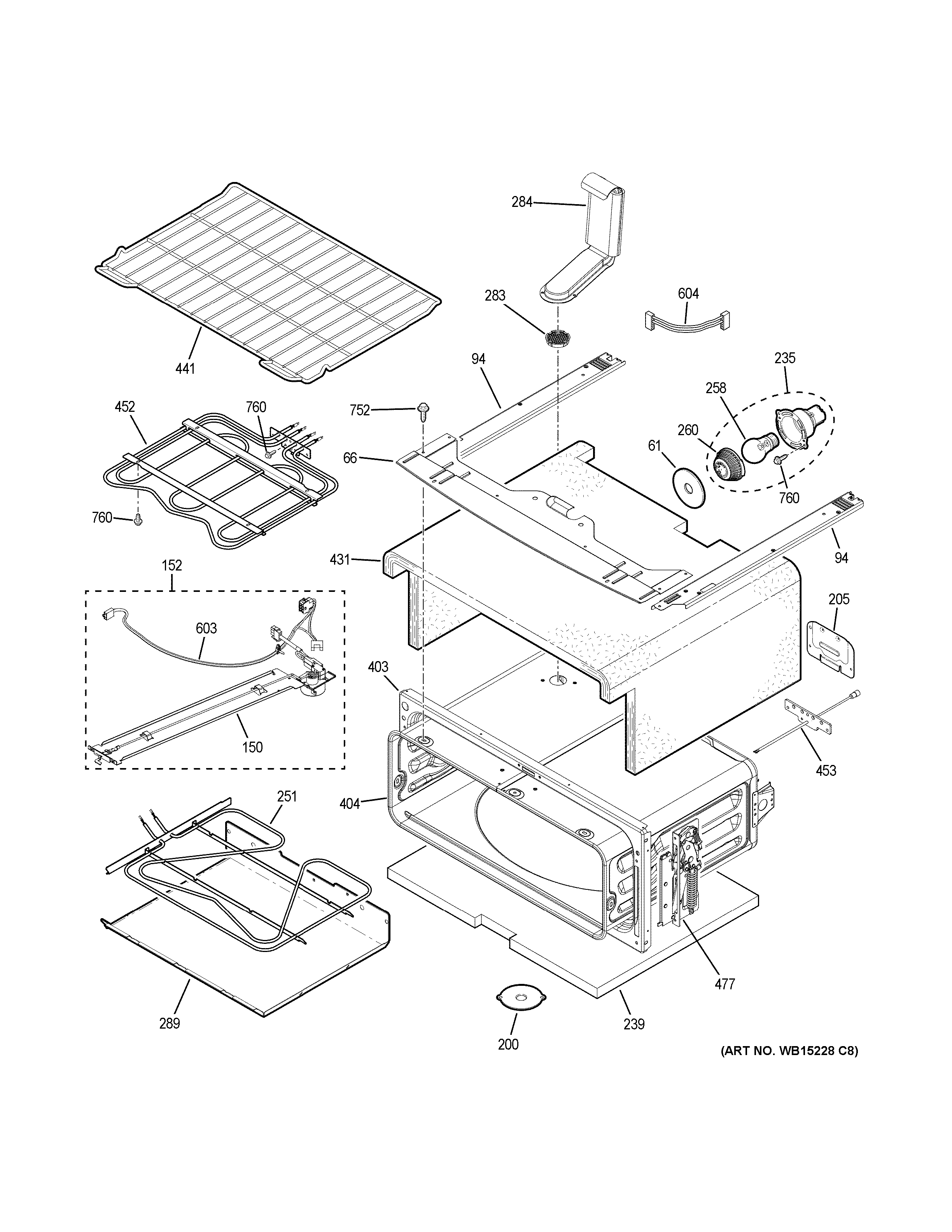

PositionProduct
61WB04T10074 GE Oven Light Gasket
66WB34X30165 GE Range Top Enclosure
94CHASSIS BRACE RADIANT RH
94CHASSIS BRACE RADIANT LH
150WB10X25238 GE Oven Latch Assembly
152WB10X25237 GE Latch and Harness Assembly
200WB34X20009 GE Cover Hole Assembly (Black)
205WB34X20970 GE Plate Cover Assembly (Black)
235WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
239WB35T10235 GE Middle Insulation
251WB44T10082 GE Oven Bake Element
258RANGE ONLY 40W 120V APPL BULB
260WB25T10002 GE Oven Bulb Lens
283WB38T10033 GE Oven Smoke Eliminator
284WB38T10035 GE Vent Tube Assembly
289WB49T10071 GE Oven Reflector Pan
403WB63X20010 GE Front Upper Frame (Black)
404WRAPPER OVN CAV ASM
431WB35X25049 GE Upper Insulation Wrapper
441WB48T10042 GE Oven Rack
452WB44X45488 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10T10104 GE Oven Hinge Assembly
477WB10T10105 GE Oven Hinge Assembly
603PLUNGER SWITCH HARNESS
604WB18X32736 GE Hidden Bake Upper Harness Wire
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
