PB960SJ9SS CONTROL PANEL

PB960SJ9SS CONTROL PANEL

Written by

in

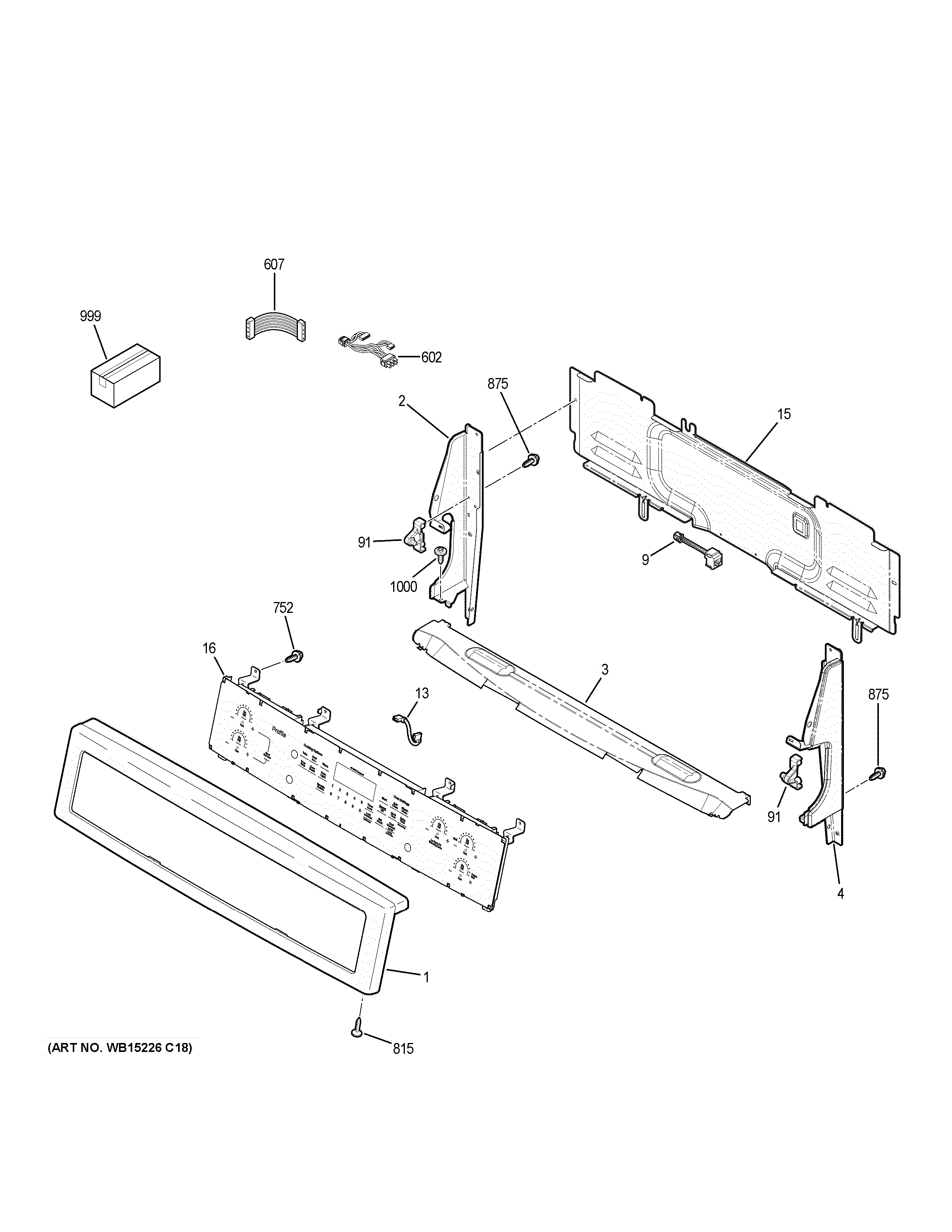

PB960SJ9SS CONTROL PANEL

Products

PositionProduct
1WB07X28610 GE Oven Trim Cap Assembly
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
9WB27X30706 GE RJ45 Connector Harness
13WB18X30704 GE Jumper
15WB34X25565 GE Oven Control Cover
16WB27X33136 GE Oven Control and Overlay Assembly
91WB10T10116 GE Range Top Hinge Pin
602WB18X32734 GE UI Connection Harness Wire
607WB18X32668 GE Wire Communication Harness
752WB1K5200 GE Oven Screw 340531
815WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WH2X930 GE Screw
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999MANUAL U&C TIP SHEET
999PM QUICK GUIDE
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
1000WB1X500D GE Oven Screw Package
