PB960SJ9SS LOWER OVEN

PB960SJ9SS LOWER OVEN

Written by

in

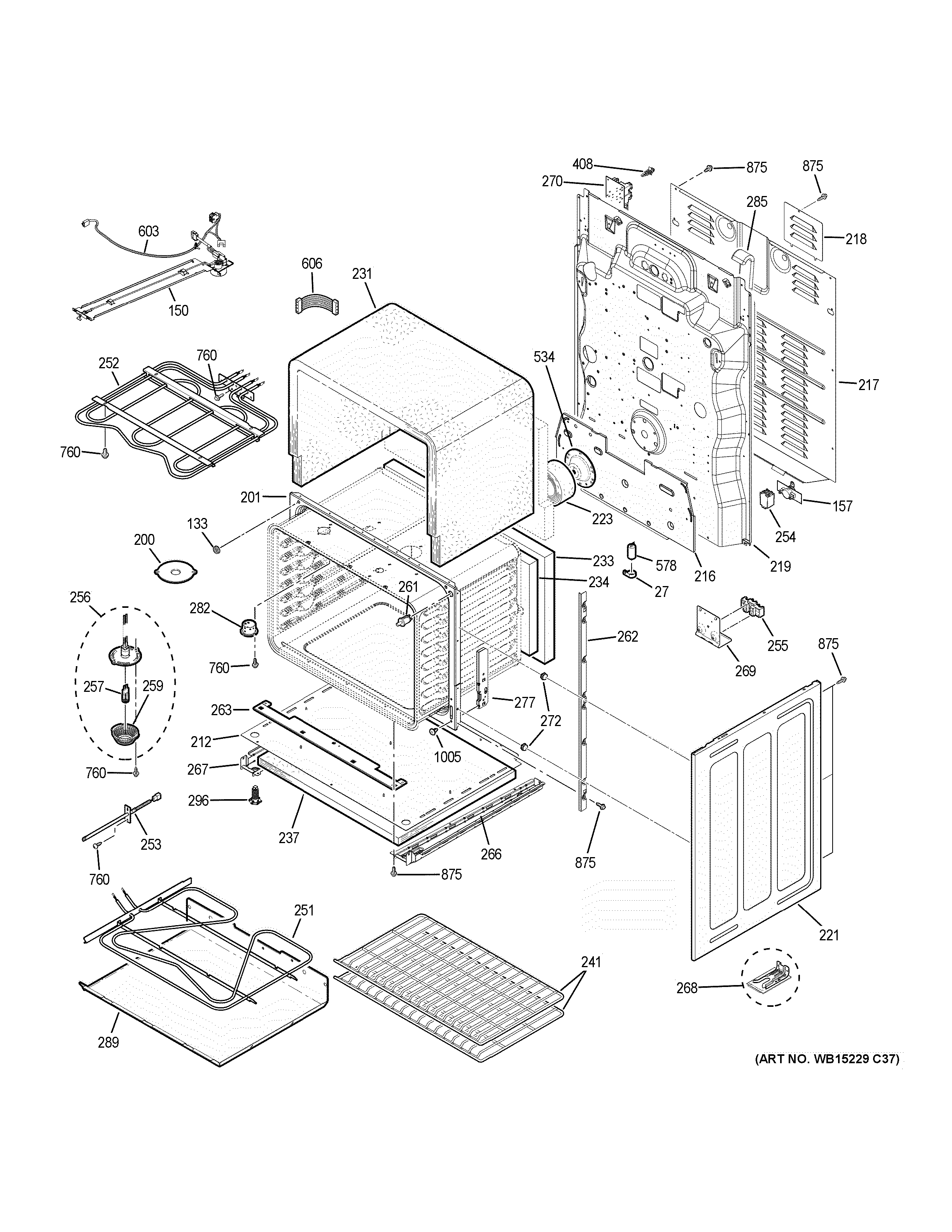

PB960SJ9SS LOWER OVEN

Products

PositionProduct
27BRACKET CAPACITIOR
133WB01T10022 GE Oven Door Bumper
150WB10X25238 GE Oven Latch Assembly
157WB24T10105 GE Oven Runaway TCO
200WB34X20009 GE Cover Hole Assembly (Black)
201FRAME FRONT LWR (BK)
212BASE DUAL CAVITY
216WB02X20855 GE Washer Rear Heat Shield
217WB02T10575 GE Main Wire Cover
218WB02T10564 GE Oven Terminal Block Cover
219MAIN BACK COVER
221WB63X28679 GE Oven Side Panel
223WB35X25122 GE Back Insulation
231WB35T10170 GE Oven Insulation Wrapper
233WB35X25048 GE Back Insulation
234GEN WB35T10180
237INSULATION BOTTOM
241WB48T10059 GE Oven Rack
251WB44T10082 GE Oven Bake Element
252BROIL SHIELD
253WB21X22134 GE Oven Sensor Assembly
254WB18T10352 GE Oven Relay
255WB17T10011 GE Oven Terminal Block
256WB25X24909 GE Oven Halogen Lamp Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
259OV LAMP LENS LWR
261WB24T10147 GE Oven SPDT Light Switch
262GEN WB07T10621
263COVER FRONT
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB02T10542 GE Strain Relief Bracket
270WB27X25594 GE Oven Relay Board
272WB02T10034 GE Oven Body Side Support
277HINGE RECEIVER
282WB38X33648 GE Vent Tube
285TUBE VNT ASM LWR
289WB49T10071 GE Oven Reflector Pan
296WB02X10521 GE Oven Leveling Leg
408WB02T10477 GE Standoff PCB
534WB02X20947 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
603WB18X32732 GE Plunger Switch Harness
606LEAD WIRE 14 GA GN
606WB18X32735 GE Hidden Bake Harness Wire
760WB1X536 GE Oven Screw
875WH2X930 GE Screw
1005WB01T10008 GE Oven Screw 10-32
