PB960SJ9SS UPPER DOOR

PB960SJ9SS UPPER DOOR

Written by

in

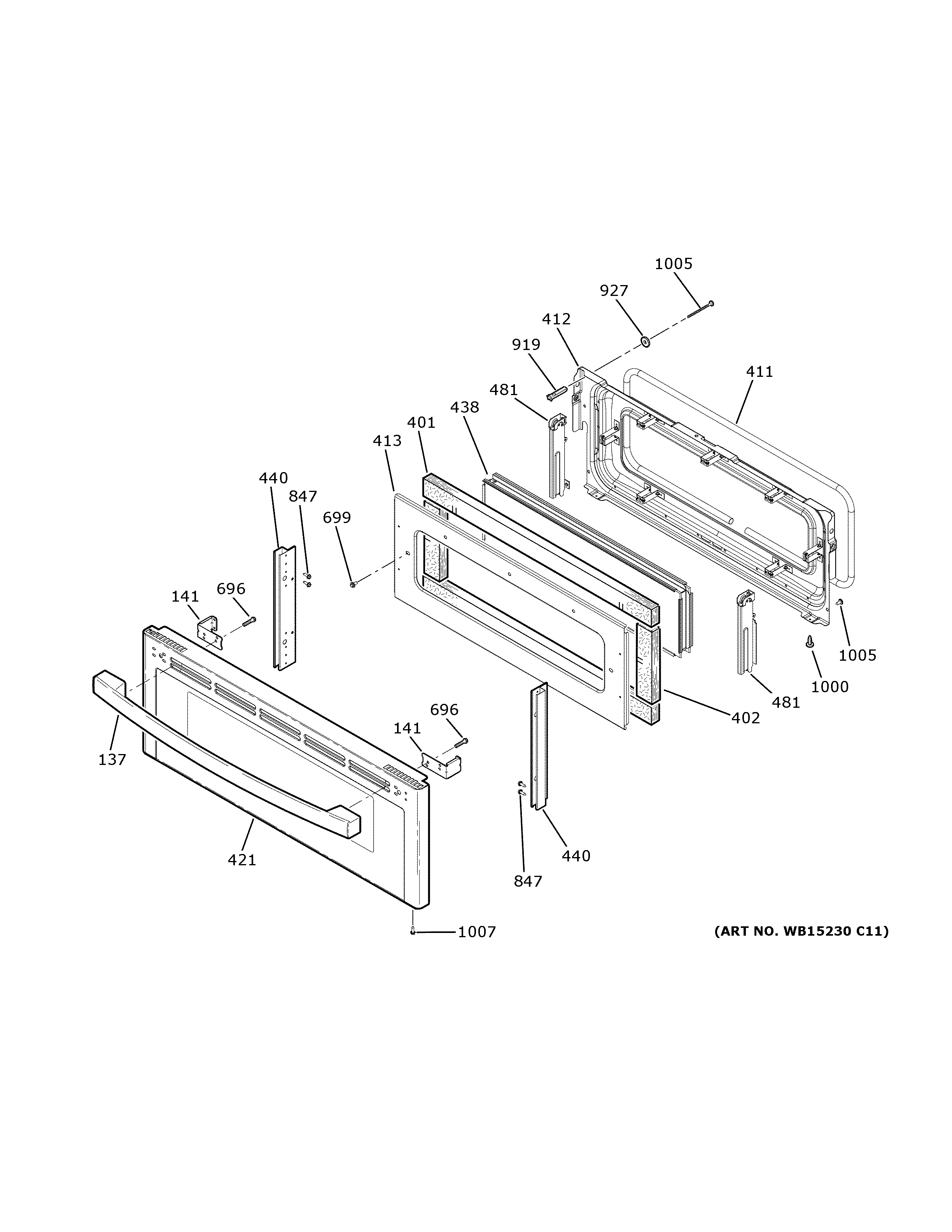

PB960SJ9SS UPPER DOOR

Products

PositionProduct
137WB15X33521 GE Handle and Endcap Assembly
141WB34X42670 GE Left Hand Door Handle Bracket
141WB34X25221 GE Oven Handle Vent Trim Bracket
401WB35X30050 GE Oven Door Insulation
402OVEN DOOR INSULATION SIDE
411WB04T10077 GE Range Oven Door Gasket
412WB63X20854 GE Oven Door Liner Assembly
413WB56T10318 GE Oven Insulation Retainer
421UPPER OUTER DOOR ASM SS
438WB56T10244 GE Oven Upper Window Pack Assembly
440WB56X21404 GE Door Side Frame
481WB10T10101 GE Oven Upper Receiver Hinge
481WB10T10100 GE Oven Right-Hand Hinge Receiver
696SCREW
699WB1M1 GE Oven Screw
847WZ4X245D GE Screw Package
919WB02X25272 GE Door Spacer
927WASHER
1000WB1X500D GE Oven Screw Package
1005WB01T10008 GE Oven Screw 10-32
1007WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
