PB965BP4TS UPPER OVEN

PB965BP4TS UPPER OVEN

Written by

in

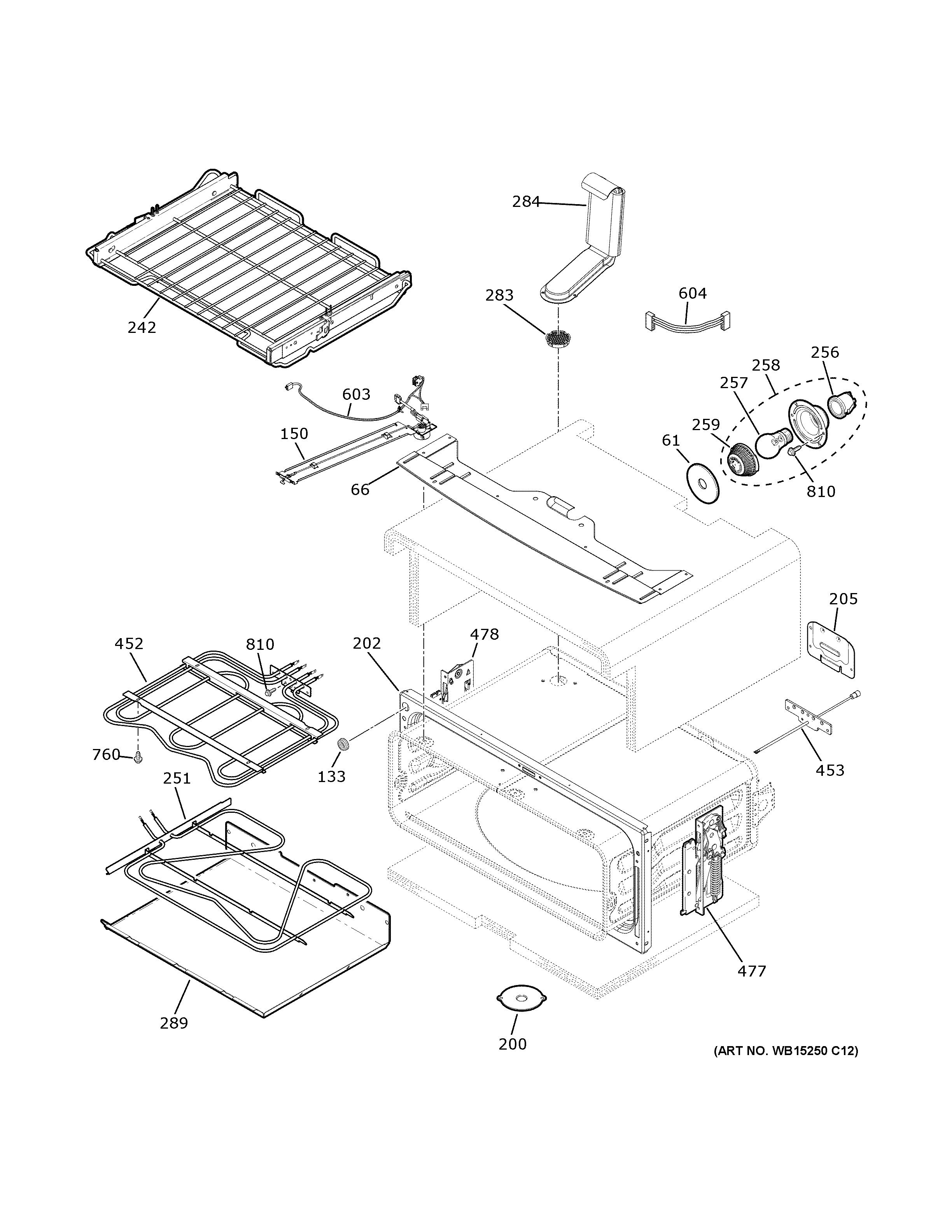

PB965BP4TS UPPER OVEN

Products

PositionProduct
61GEN WB04T10021
66WB34X30165 GE Range Top Enclosure
133WB01T10022 GE Oven Door Bumper
150WB10X25238 GE Oven Latch Assembly
200WB34X20009 GE Cover Hole Assembly (Black)
202WB63X20010 GE Front Upper Frame (Black)
205WB34X20970 GE Plate Cover Assembly (Black)
242WB48T10072 GE Oven Rack
251HIDDEN BAKE ELEMENT
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259WB25T10002 GE Oven Bulb Lens
283WB38X33647 GE Smoke Eliminator
284WB38T10035 GE Vent Tube Assembly
289PAN REFLECTOR
452WB44X45488 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10T10104 GE Oven Hinge Assembly
478WB10T10105 GE Oven Hinge Assembly
603PLUNGER SWITCH HARNESS
604WB18X32736 GE Hidden Bake Upper Harness Wire
760WB1X536 GE Oven Screw
810WB01M10002 GE Oven Screw
