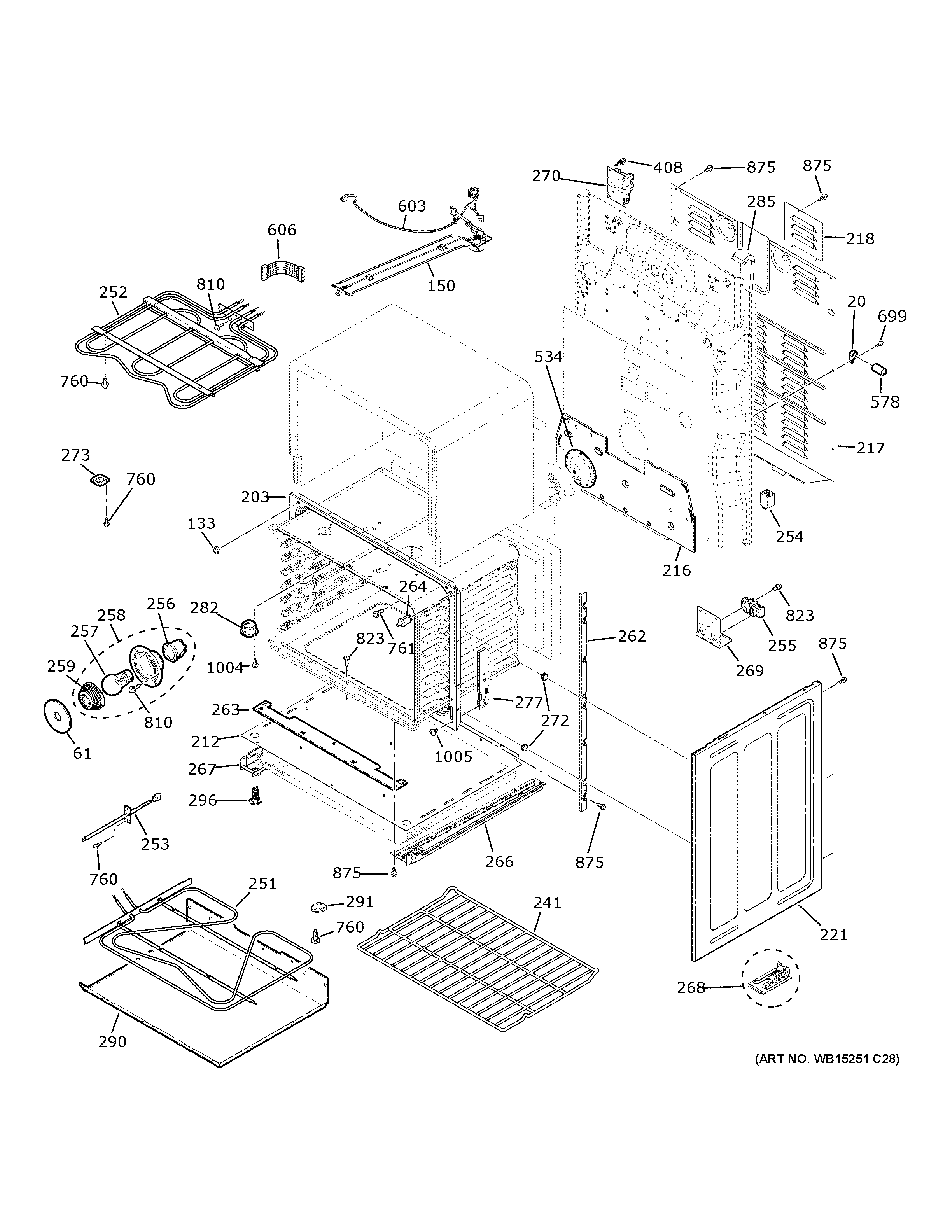

PB965YP4FS LOWER OVEN

PB965YP4FS LOWER OVEN

Written by

in

PB965YP4FS LOWER OVEN

Products

PositionProduct
20BRACKET CAPACITIOR
61GEN WB04T10021
133WB01T10022 GE Oven Door Bumper
150WB10X25238 GE Oven Latch Assembly
203FRAME FRONT LWR (BK)
212BASE DUAL CAVITY
216WB02X20855 GE Washer Rear Heat Shield
217WB02T10575 GE Main Wire Cover
218WB02T10564 GE Oven Terminal Block Cover
221WB63X28679 GE Oven Side Panel
241RACK OVEN
251HIDDEN BAKE ELEMENT
252BROIL SHIELD
253WB21X22134 GE Oven Sensor Assembly
254WB18T10352 GE Oven Relay
255WB17X38438 GE Terminal Block Assembly
256WB08T10026 GE Range Push-In Receptacle
257RANGE ONLY 40W 120V APPL BULB
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259WB25T10002 GE Oven Bulb Lens
262GEN WB07T10621
263COVER FRONT
264WB24T10147 GE Oven SPDT Light Switch
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB02T10542 GE Strain Relief Bracket
270WB27X29201 GE Oven Relay Board Daughter
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277HINGE RECEIVER
282WB38X33648 GE Vent Tube
285TUBE VNT ASM LWR
290WB49T10071 GE Oven Reflector Pan
291WB02T10487 GE Hole Cover
296WB02X10521 GE Oven Leveling Leg
408WB02T10477 GE Standoff PCB
534WB02X20947 GE Oven Cavity Support
578WB27T10662 GE Oven Capacitor
603PLUNGER SWITCH HARNESS
606WB18X32735 GE Hidden Bake Harness Wire
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
761WB01T10084 GE Screw 8-32 x .343 Truss
810WB01M10002 GE Oven Screw
823WB1X1261 GE Oven Screw
875WH2X930 GE Screw
1004GEN WH02X0941
1005WB01X27933 GE Scr 10-32 Ca Trt 3.30
