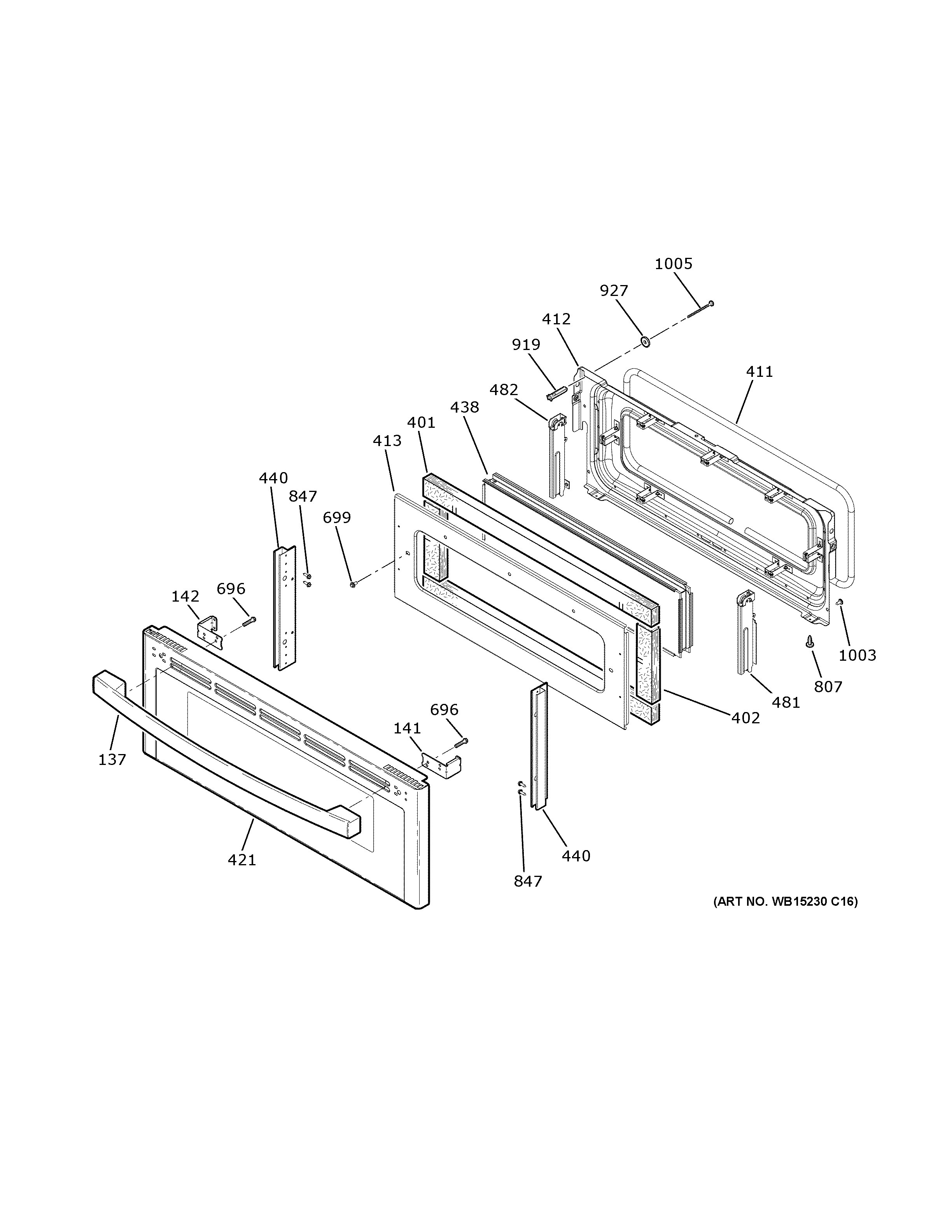

PB965YP4FS UPPER DOOR

PB965YP4FS UPPER DOOR

Written by

in

PB965YP4FS UPPER DOOR

Products

PositionProduct
137HANDLE & ENDCAP ASM (SS)
141WB34X42027 GE Right Hand Door Trim Bracket
142WB34X42670 GE Left Hand Door Handle Bracket
401WB35X30050 GE Oven Door Insulation
402OVEN DOOR INSULATION SIDE
411WB04T10077 GE Range Oven Door Gasket
412WB63X20854 GE Oven Door Liner Assembly
413WB56T10318 GE Oven Insulation Retainer
421UPPER OUTER DOOR-STAINLESS
438WB56T10244 GE Oven Upper Window Pack Assembly
440WB56X21404 GE Door Side Frame
481WB10T10100 GE Oven Right-Hand Hinge Receiver
482WB10T10101 GE Oven Upper Receiver Hinge
696WB1K5157 GE Oven Black Screw
699WB1M1 GE Oven Screw
807WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
847WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
919WB02X25272 GE Door Spacer
927WASHER
1003WB01T10008 GE Oven Screw 10-32
1005WB01X27933 GE Scr 10-32 Ca Trt 3.30
