PB970DP3BB LOWER OVEN

PB970DP3BB LOWER OVEN

Written by

in

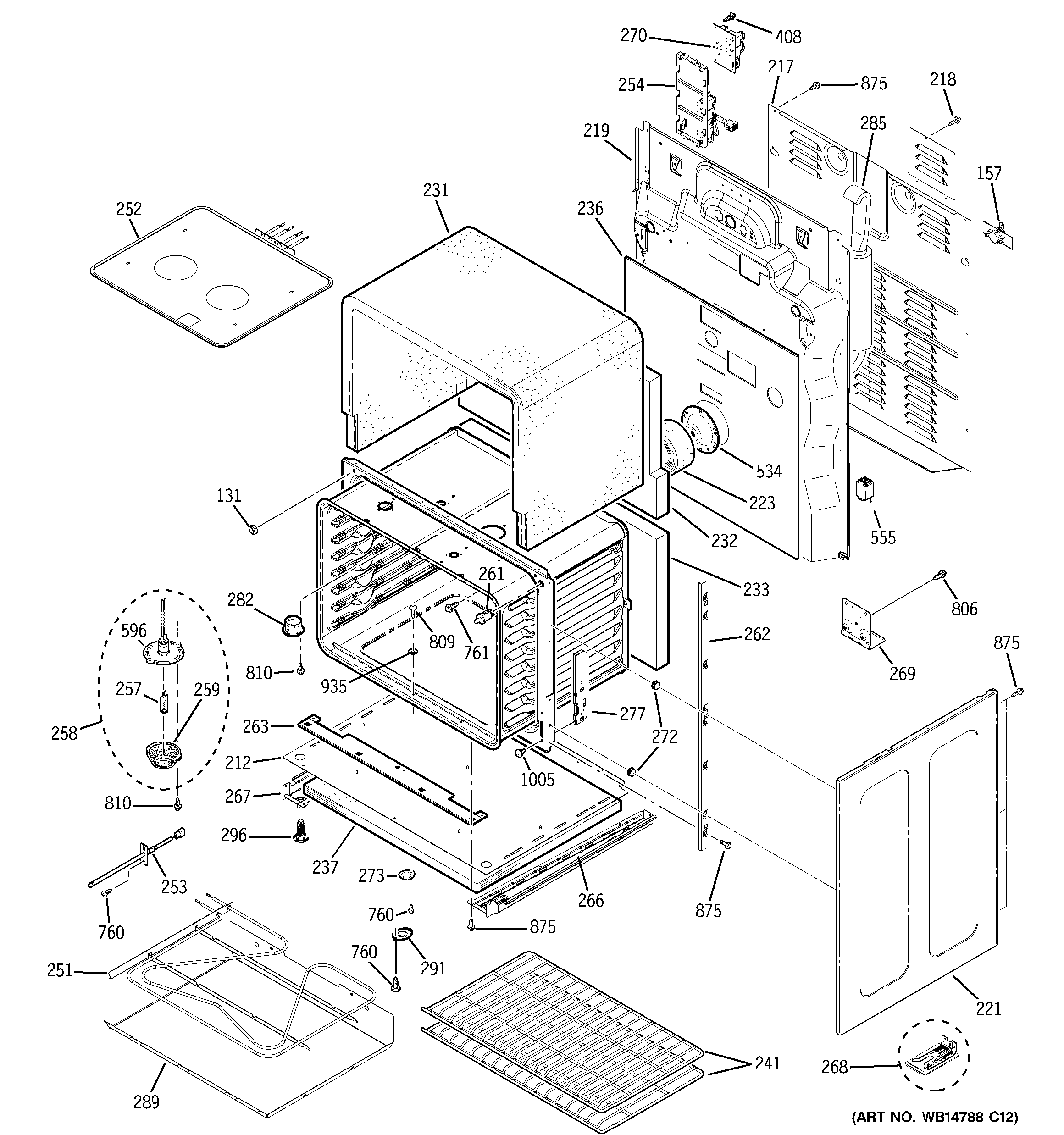

PB970DP3BB LOWER OVEN

Products

PositionProduct
131WB01T10022 GE Oven Door Bumper
157WB24T10105 GE Oven Runaway TCO
212GEN WB39T10015
217GEN WB02T10476
218GEN WB02T10355
219WB02T10507 GE Main Back Panel
221WB56X28881 GE Oven Side Panel Black
221WB56X28884 GE Oven White Side Panel
231WB35T10170 GE Oven Insulation Wrapper
232WB35T10223 GE Oven Back Insulation
233WB35X25122 GE Back Insulation
233WB35X25048 GE Back Insulation
236GEN WB35T10180
237GEN WB35T10228
241WB48T10059 GE Oven Rack
251WB44T10082 GE Oven Bake Element
252GEN WB44T10095
253WB21X22134 GE Oven Sensor Assembly
254WB27T11085 GE Oven Frame Assembly
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10075
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10621
263GEN WB02T10370
266WB02T10353 GE Oven Base Rail
267WB02T10352 GE Oven Base Rail
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269GEN WB02T10492
270WB27X26574 GE Oven Relay Board Daughter Kit
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10083
282WB38X33648 GE Vent Tube
285GEN WB38T10034
289GEN WB49T10015
291WB02T10487 GE Hole Cover
296WB02X10521 GE Oven Leveling Leg
408WB02T10477 GE Standoff PCB
534WB26T10015 GE Oven Cavity Support
555WB18T10352 GE Oven Relay
596GEN WB08T10006
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
935WB1K5174 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
