PB970KM2CC LOWER OVEN

PB970KM2CC LOWER OVEN

Written by

in

PB970KM2CC LOWER OVEN

Products

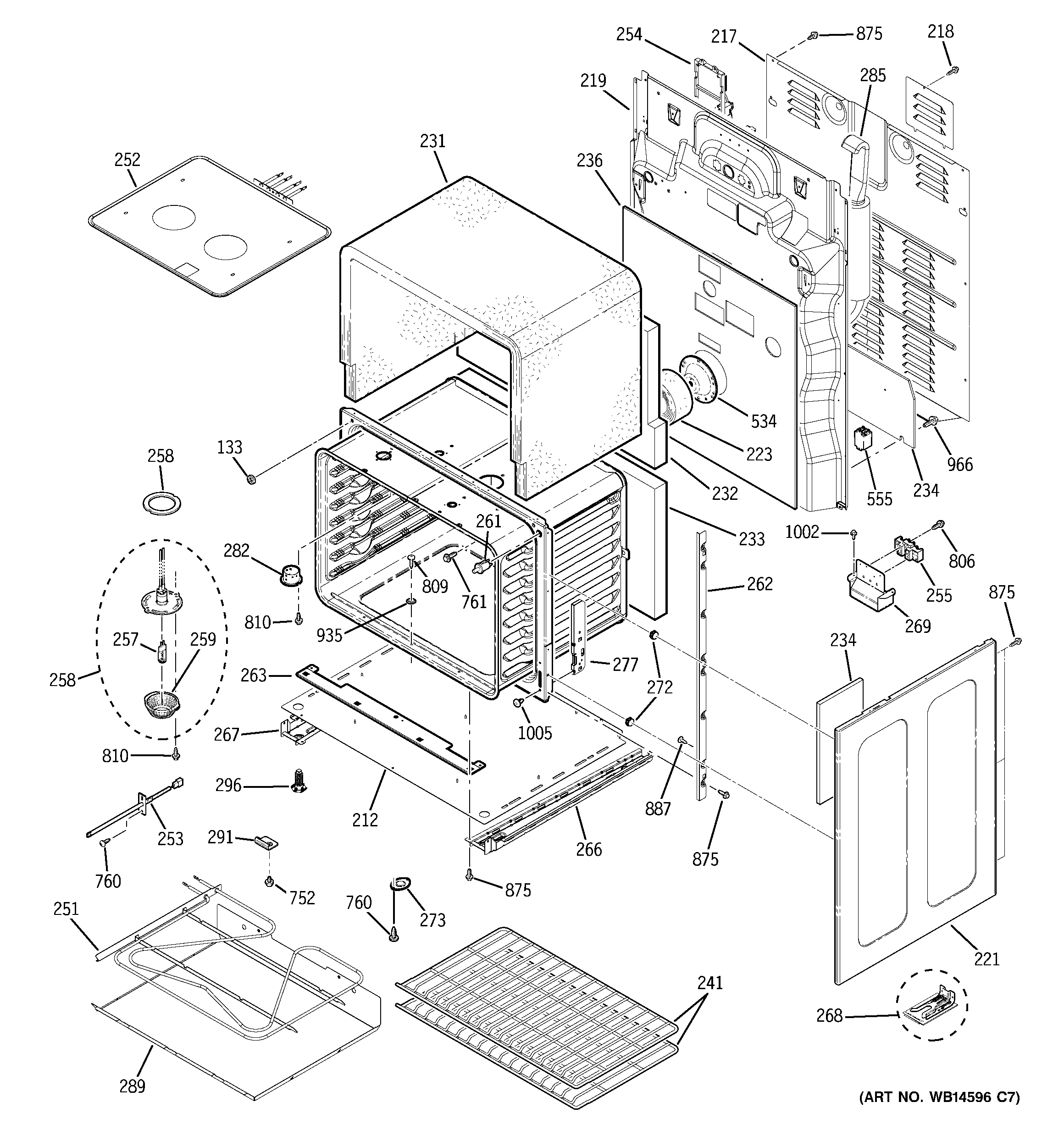

PositionProduct
133WB01T10022 GE Oven Door Bumper
133WB02X29562 GE Range Top Bumper
133WB01T10026 GE Oven Door Pad
212GEN WB39T10013
217GEN WB02T10350
218GEN WB02T10355
219GEN WB02T10354
219GEN WB02T10467
221WB56X28881 GE Oven Side Panel Black
221WB63T10121 GE Side Panel (Bq)
221WB56X28884 GE Oven White Side Panel
223GEN WB35T10185
231WB35T10170 GE Oven Insulation Wrapper
232WB35T10223 GE Oven Back Insulation
233GEN WB35T10179
234GEN WB35T10173
234GEN WB35T10178
236GEN WB35T10180
241GEN WB48T10052
251WB44T10082 GE Oven Bake Element
252GEN WB44T10083
253WB21X22134 GE Oven Sensor Assembly
254GEN WB27T11081
255WB17T10011 GE Oven Terminal Block
257WB08T10023 GE Oven Halogen Lamp 35W 130V
258GEN WB25T10075
258GEN WB25T10025
258GEN WB08T10006
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10621
263GEN WB02T10370
266WB02T10352 GE Oven Base Rail
267WB02T10353 GE Oven Base Rail
268WB02T10415 GE Oven Anti-Tip Bracket Assembly
269GEN WB17T10022
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277GEN WB10T10083
282WB38X33648 GE Vent Tube
285GEN WB38T10031
289GEN WB49T10015
291GEN WB02X9152
296WB02X10521 GE Oven Leveling Leg
534WB26T10015 GE Oven Cavity Support
555WB18T10352 GE Oven Relay
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
761WB1X5364 GE Oven Mounting Screw
806WH2X1186 GE Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
887WB1K5172 GE Oven Screw
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
887GEN WB01T10033
935WB1K5174 GE Oven Washer
966WB2X9573 GE Oven Clip
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1005WB01T10008 GE Oven Screw 10-32
