PB975DP4BB CONTROL PANEL

PB975DP4BB CONTROL PANEL

Written by

in

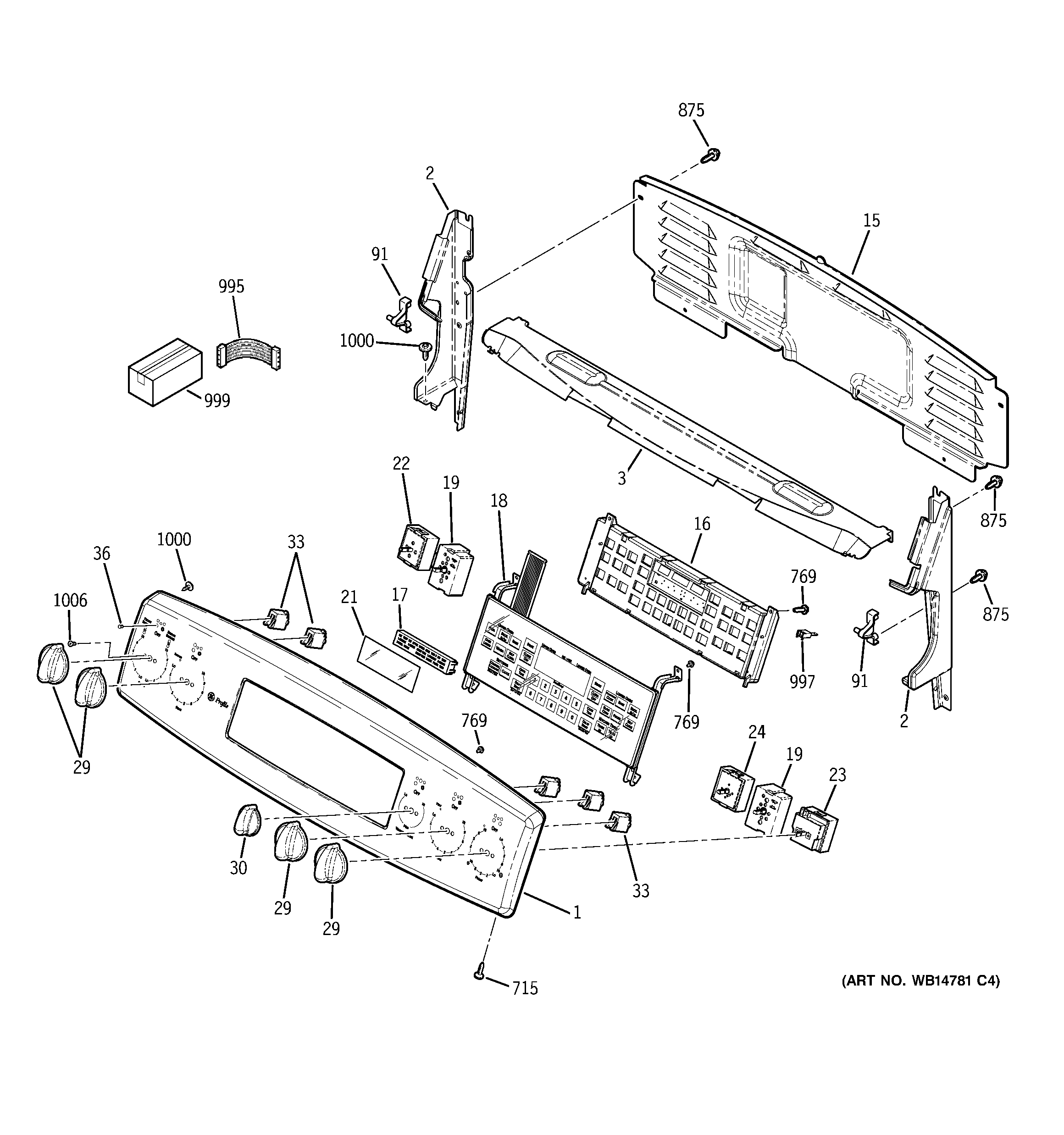

PB975DP4BB CONTROL PANEL

Products

PositionProduct
1GEN WB07T10674
1GEN WB07T10675
2WB36T11206 GE Oven End Plate Right
2WB36T11207 GE Oven End Plate LT
2WB07X27823 GE End Plate LT (Black)
2WB36T11204 GE Oven Right End Plate
3WB02X28994 GE Heat Shield
15GEN WB02T10499
16CONTROL UI ASM
17WB27T11115 GE Oven Guide and Overlay Assembly
18WB27T11146 GE Oven Touch Control Panel
18GEN WB27T11147
19WB24T10145 GE Oven Burner Switch
21WB27T11116 GE Clock Display Filter
22WB24T10153 GE Oven Infinite Switch Control
23WB24T10162 GE Oven Infinite Control Switch
24INFINITE CONTROL SWITCH
29KNOB PROFILE SU
29KNOB PROFILE SU
30KNOB GE S/U (WHT)
30KNOB GE S/U (BLK)
33GEN WB25T10088
33GEN WB25T10090
36LENS
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
715WD2X433 GE Dishwasher Trim Screw
769WB1X500D GE Oven Screw Package
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
995HARNSS WIRE HIDDN BKE(L)
995HARNESS WIRE UI COM
997GEN WD21X10232
999GEN 31-10671
999GEN 49-80602
999GEN 31-10677
999GEN 31-14872
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
