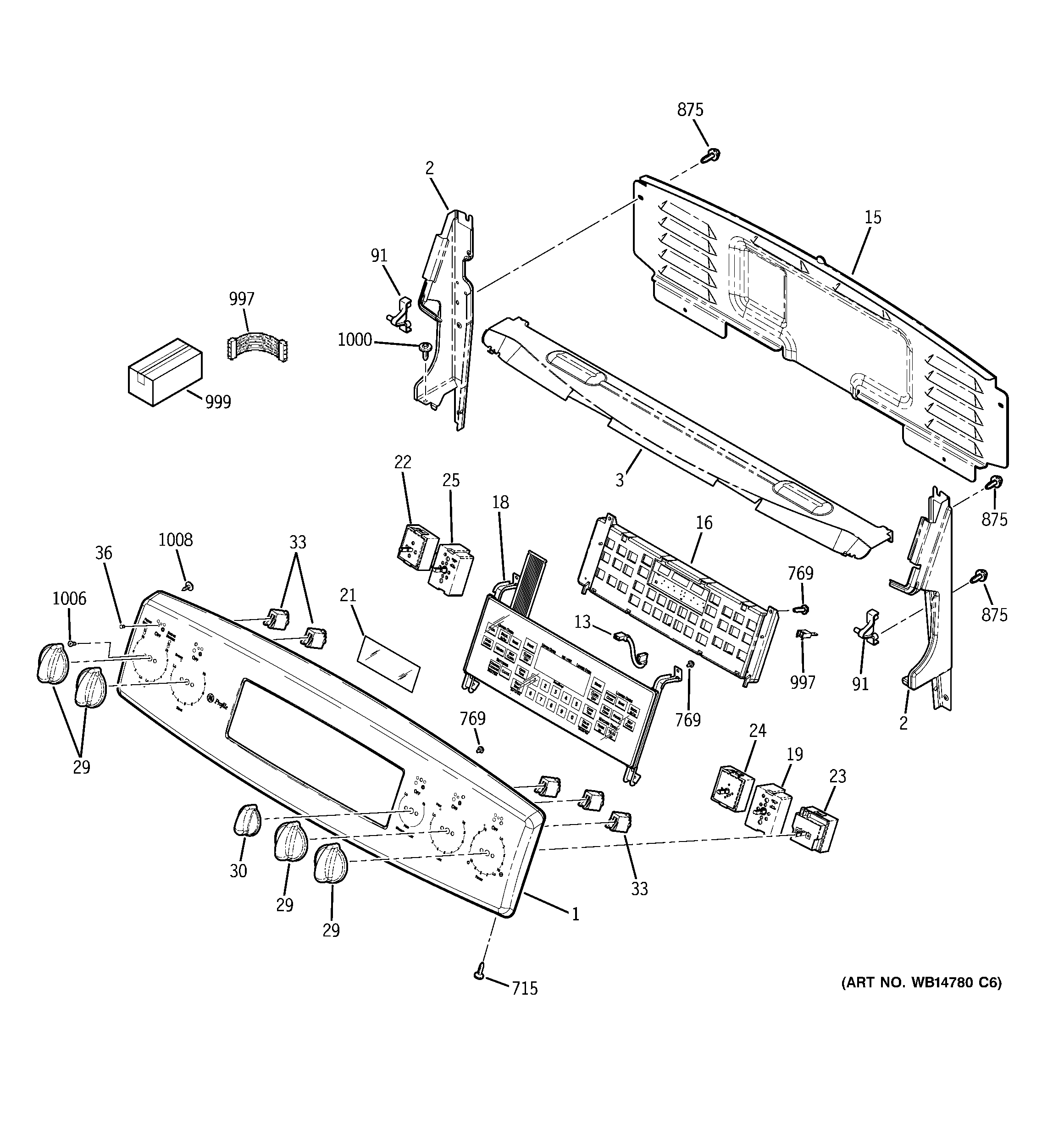

PB975DT1BB CONTROL PANEL

PB975DT1BB CONTROL PANEL

Written by

in

PB975DT1BB CONTROL PANEL

Products

PositionProduct
1GEN WB07T10674
1GEN WB07T10675
2WB07X27823 GE End Plate LT (Black)
2WB36T11207 GE Oven End Plate LT
2WB36T11206 GE Oven End Plate Right
2WB36T11204 GE Oven Right End Plate
3WB02X28994 GE Heat Shield
13WB18X30704 GE Jumper
15COVER CONTROL
16GEN WB27T11373
18GEN WB27T11398
18GEN WB27T11399
19WB24T10145 GE Oven Burner Switch
21WB27T11116 GE Clock Display Filter
22WB24T10153 GE Oven Infinite Switch Control
23WB24T10162 GE Oven Infinite Control Switch
24INFINITE CONTROL SWITCH
25WB24T10146 GE Oven Surface Element Control
29WB03T10334 GE Oven Knob Assembly
29WB03T10332 GE Stove Burner Control Knob
30KNOB ASM
30GEN WB03T10335
33GEN WB25T10090
33GEN WB25T10088
36LENS
91GEN WB10T10125
715WD2X433 GE Dishwasher Trim Screw
715WB1X5364 GE Oven Mounting Screw
715WD2X432 GE Dishwasher Screw
769WZ4X245D GE Screw Package
875WH2X930 GE Screw
997GEN WB18T10483
997GEN WB18T10515
999GEN 31-15003
999GEN 49-80633
999GEN 31-10780
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999INSTR INSTALL OVN DOOR
1000WB01T10066 GE Oven Screw 10-16 XC02
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
1008WB1X5904 GE Oven Screw 8-18 BA
