PB975SP6SS CONTROL PANEL

PB975SP6SS CONTROL PANEL

Written by

in

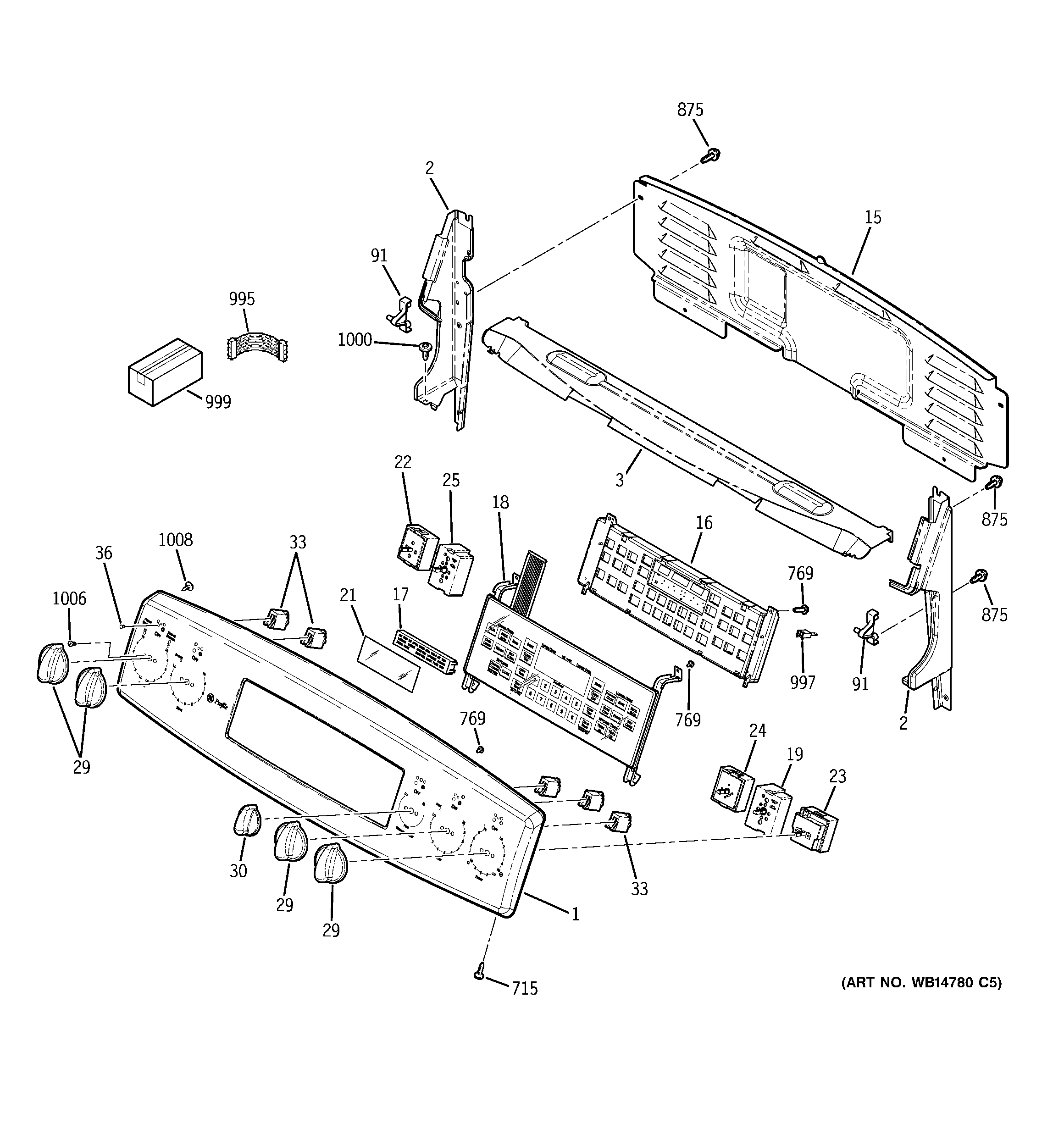

PB975SP6SS CONTROL PANEL

Products

PositionProduct
1GEN WB36T11226
2WB36T11204 GE Oven Right End Plate
2WB07X27823 GE End Plate LT (Black)
3WB02X28994 GE Heat Shield
15GEN WB02T10499
16CONTROL UI ASM
17WB27T11115 GE Oven Guide and Overlay Assembly
18WB27T11146 GE Oven Touch Control Panel
19WB24T10145 GE Oven Burner Switch
21WB27T11116 GE Clock Display Filter
22WB24T10153 GE Oven Infinite Switch Control
23WB24T10162 GE Oven Infinite Control Switch
24INFINITE CONTROL SWITCH
25WB24T10146 GE Oven Surface Element Control
29WB03T10266 GE Oven Knob
30GEN WB03T10257
33GEN WB25T10088
33GEN WB25T10090
36LENS
91GEN WB10T10125
715WD2X430 GE Dishwasher Screw
769WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
875WH2X930 GE Screw
875WZ4X245D GE Screw Package
995HARNSS WIRE HIDDN BKE(L)
995HARNESS WIRE UI COM
997GEN WD21X10232
999GEN 49-80627
999INSTR INSTALL OVN DOOR
999GEN 31-14872
999GEN 31-10816
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
1008WB1X5904 GE Oven Screw 8-18 BA
