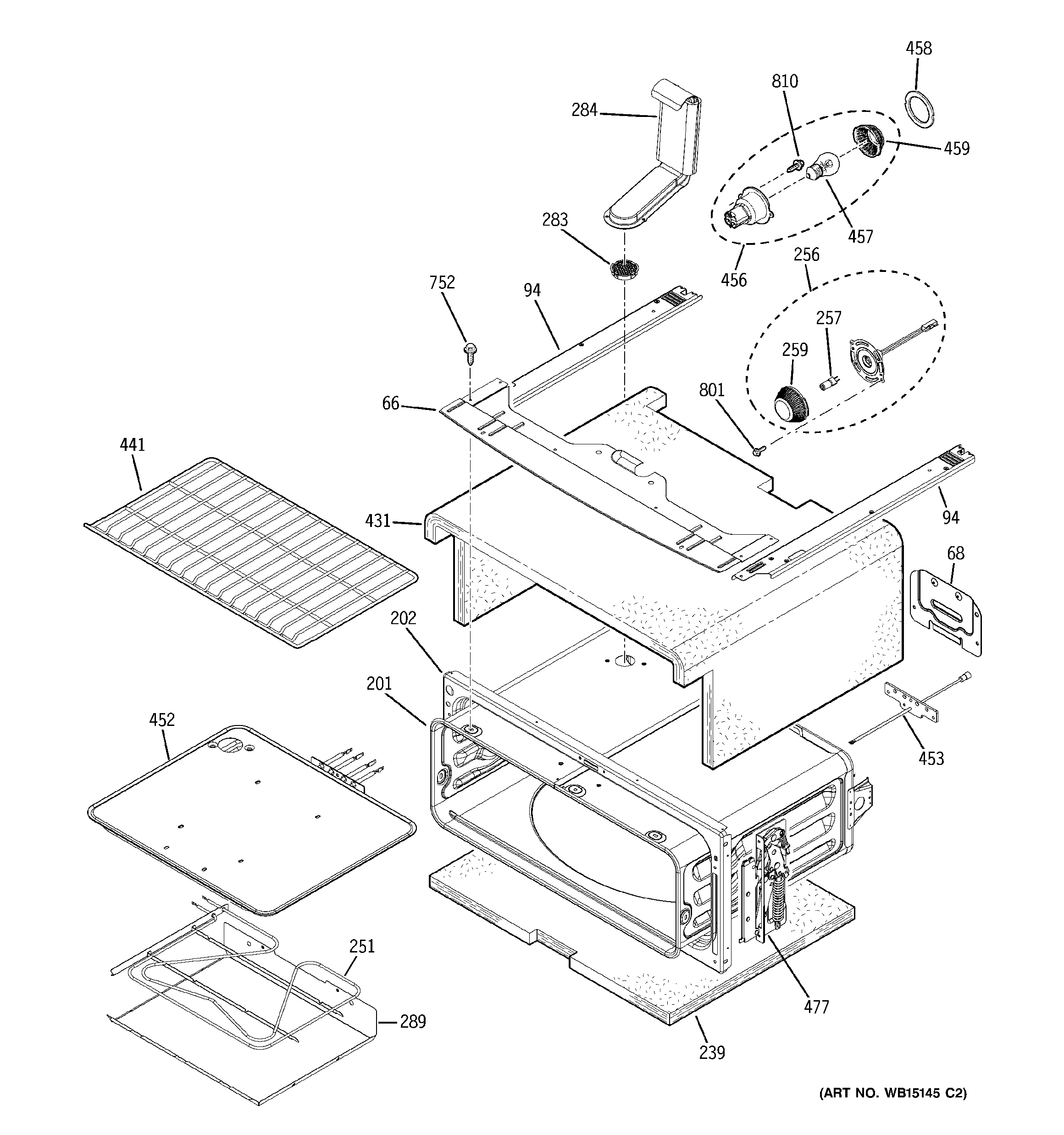

PB979ST1SS UPPER OVEN

PB979ST1SS UPPER OVEN

Written by

in

PB979ST1SS UPPER OVEN

Products

PositionProduct
66ENCLOSURE RANGETOP
68WB34X20970 GE Plate Cover Assembly (Black)
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
201WRAPPER OVN CAV ASM
202WB63X20010 GE Front Upper Frame (Black)
239WB35T10235 GE Middle Insulation
251WB44T10082 GE Oven Bake Element
256WB25T10093 GE Oven Halogen Lamp Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
259OV LAMP LENS LWR
283WB38T10033 GE Oven Smoke Eliminator
284WB38T10035 GE Vent Tube Assembly
289WB49T10071 GE Oven Reflector Pan
289PAN REFLECTOR
431WB35X25049 GE Upper Insulation Wrapper
441RACK OVEN
452WB44X45488 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
456WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
457RANGE ONLY 40W 120V APPL BULB
458GEN WB04T10021
459WB25T10002 GE Oven Bulb Lens
477WB10T10101 GE Oven Upper Receiver Hinge
477WB10T10100 GE Oven Right-Hand Hinge Receiver
752WB1K5200 GE Oven Screw 340531
801WB1M1 GE Oven Screw
810WD2X430 GE Dishwasher Screw
