PB980SJ8SS CONTROL PANEL

PB980SJ8SS CONTROL PANEL

Written by

in

PB980SJ8SS CONTROL PANEL

Products

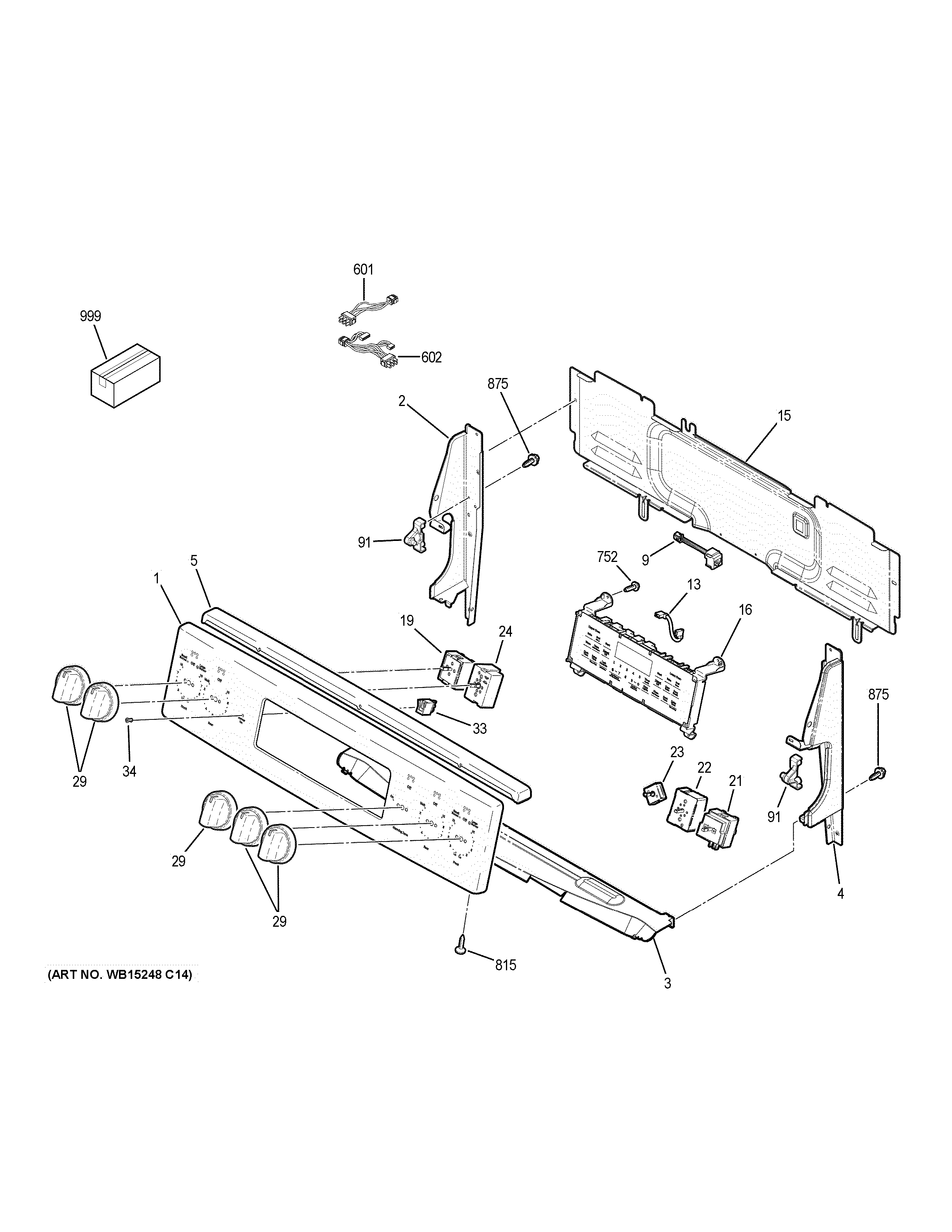

PositionProduct
1TRIM CONTROL ASM
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
5WB07X28582 GE Oven Top Trim Assembly
9WB27X30706 GE RJ45 Connector Harness
13WB18X30704 GE Jumper
15WB34X25565 GE Oven Control Cover
16WB27X33132 GE Oven Control and Overlay Assembly
19WB24X25013 GE Oven Control Infinite Switch
21WB24X25152 GE Oven Infinite Switch Control
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25302 GE Oven Rotary Switch
24WB24T10146 GE Oven Surface Element Control
29WB03X34871 GE Oven Stainless Infinite Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
601WB18X32738 GE Oven Infinite Switch Harness
602WB18X32734 GE UI Connection Harness Wire
752WB1K5200 GE Oven Screw 340531
815WB01X26365 GE Screw 8-18 AB 60RH 1/2" Nickel
875WH2X930 GE Screw
999PM INSTALL INSTRUCTIONS
999PM INSTRUCTIONS INSTALL
999MANUAL U&C TIP SHEET
999WB02T10303 GE Cleaner Lubricant
999INSTRUCTION INSTALL
999PM QUICK GUIDE
999PM MANUAL MINI & WD ASM
