PB980SJ8SS UPPER OVEN

PB980SJ8SS UPPER OVEN

Written by

in

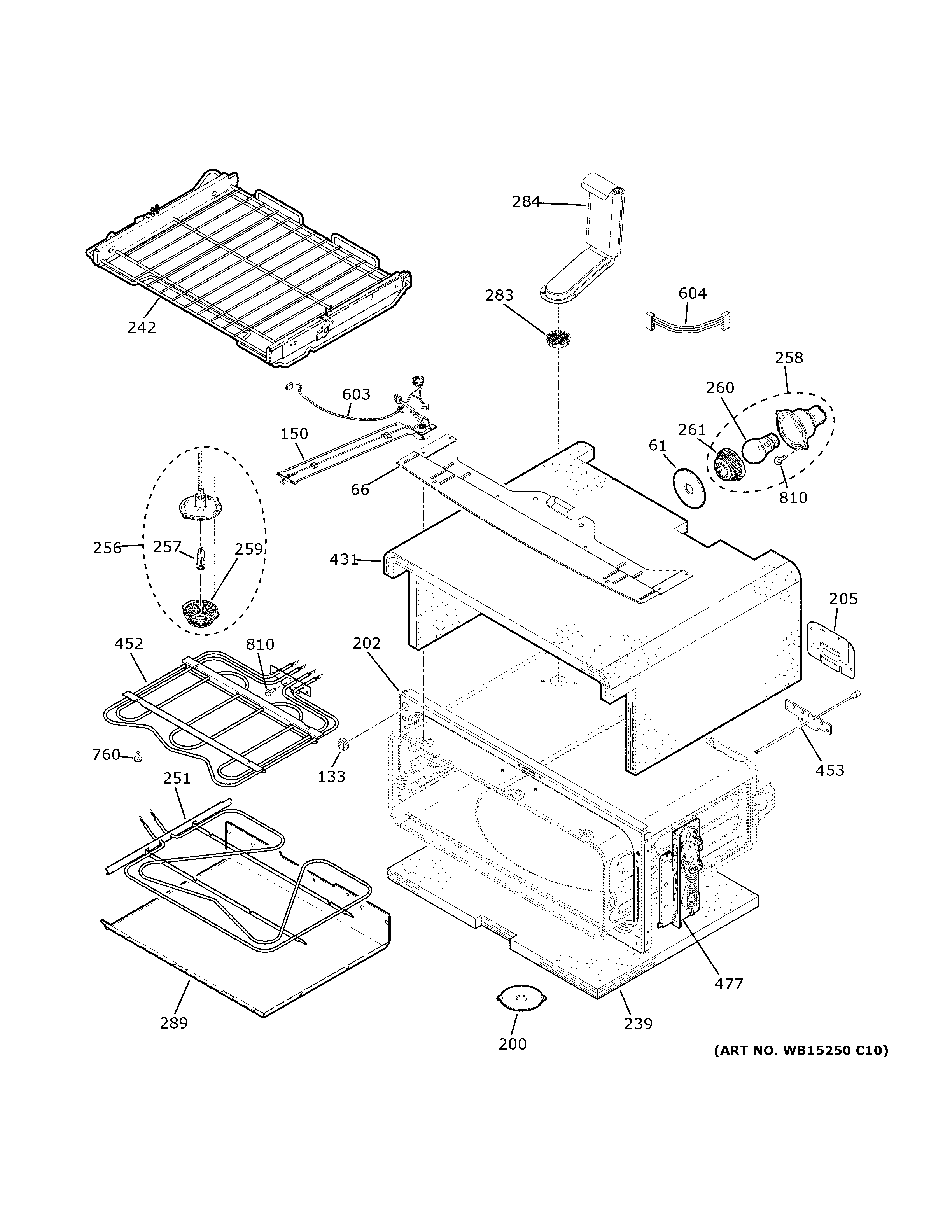

PB980SJ8SS UPPER OVEN

Products

PositionProduct
61GEN WB04T10021
66WB34X30165 GE Range Top Enclosure
133WB01T10022 GE Oven Door Bumper
150WB10X25238 GE Oven Latch Assembly
200WB34X20009 GE Cover Hole Assembly (Black)
202WB63X20010 GE Front Upper Frame (Black)
205WB34X20970 GE Plate Cover Assembly (Black)
239WB35T10235 GE Middle Insulation
242RACK OVEN SLIDE ASM (BK)
251WB44T10082 GE Oven Bake Element
256WB25X40248 GE Assembly Halogen Lamp
257WB08T10045 GE Oven G9 Halogen Lamp
258WB08T10002 OVEN LAMP ASSEMBLY 40W BULB
259OV LAMP LENS LWR
260RANGE ONLY 40W 120V APPL BULB
261WB25T10002 GE Oven Bulb Lens
283WB38X33647 GE Smoke Eliminator
284WB38T10035 GE Vent Tube Assembly
289PAN REFLECTOR
431WB35X25049 GE Upper Insulation Wrapper
452WB44X45488 GE Broil Shield
453WB23T10015 GE Oven Sensor Probe
477WB10T10105 GE Oven Hinge Assembly
477WB10T10104 GE Oven Hinge Assembly
603WB18X32732 GE Plunger Switch Harness
604WB18X32736 GE Hidden Bake Upper Harness Wire
760WB1X536 GE Oven Screw
810WB01M10002 GE Oven Screw
