PBB1951HEB 02 – COMPRESSOR (SERIES 10)

PBB1951HEB 02 – COMPRESSOR (SERIES 10)

Written by

in

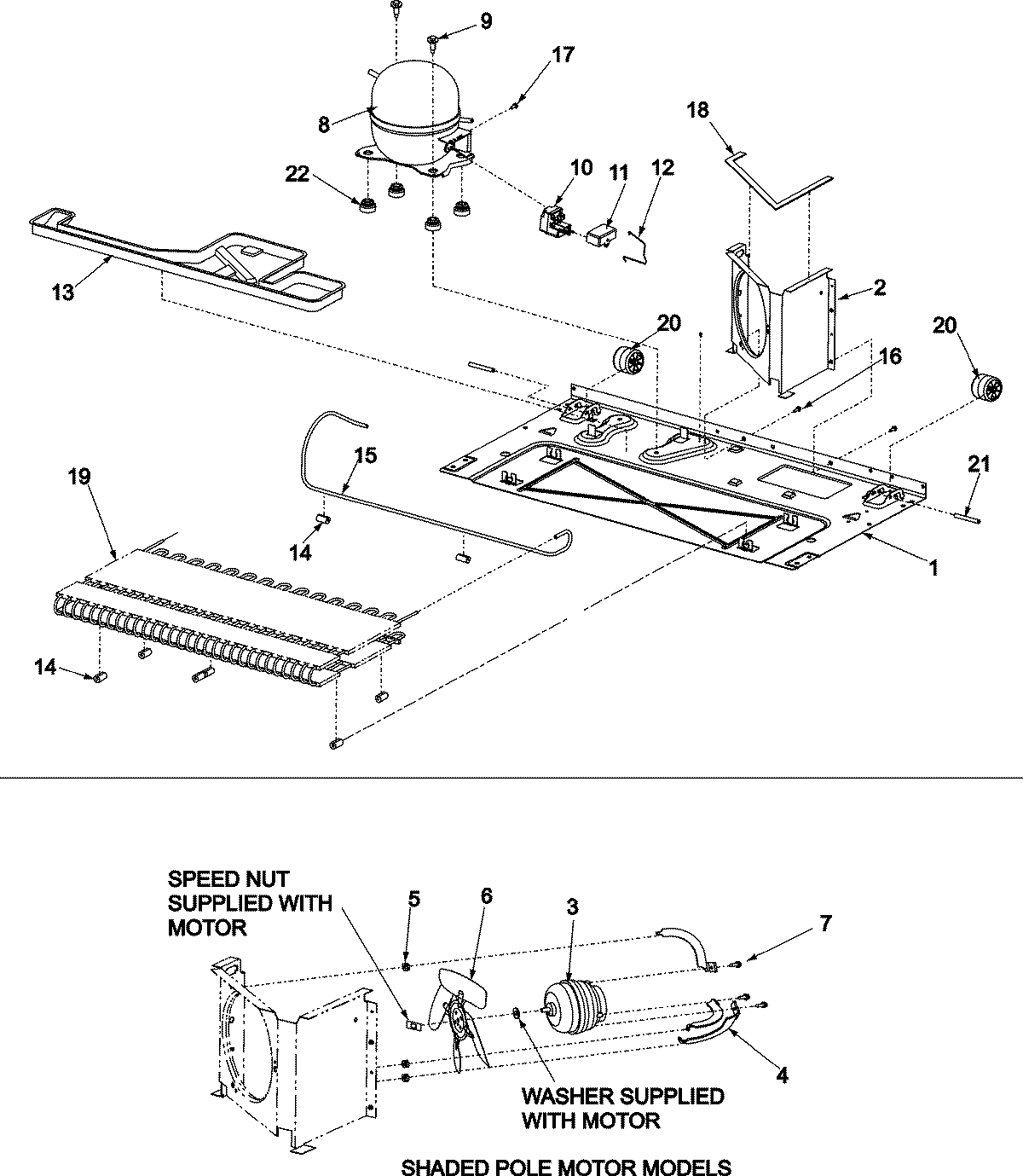

PBB1951HEB 02 – COMPRESSOR (SERIES 10)

Products

PositionProduct
1MAY 67003789
2SHROUD, CONDENSER FAN
3833697 Whirlpool Condenser Fan Motor
4Bracket, Motor (3)
5MAY 12578701
6WP12587601 Whirlpool Refrigerator Condenser Blade
7Screw (3)
8W10160407 Whirlpool Refrigerator Compressor
9MAY 67003790
10W10613606 Whirlpool Refrigerator Start Device Relay Overload
11CAPACITOR
12MAY 12576801
13MAY 67001091
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67001171
16MAY M0238616
17MAY M0231604
18WP854334 Whirlpool Air Conditioner Sealing Strip
1967006133 Whirlpool Refrigerator 30" Condenser BM
20WP67005149 Whirlpool Roller
2167006434 Whirlpool Axle Pin
22GROMMET (SERVICE)
23MAY 67003823
